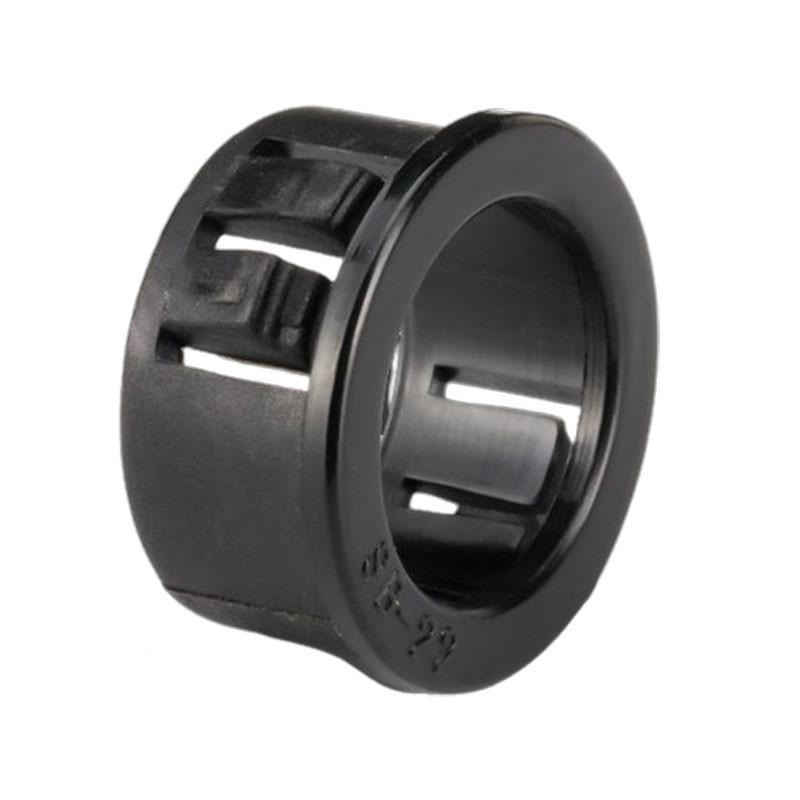

Snap Fit Bushings

Reference NSFB

Our range of nylon snap fit bushings are designed with flexible arms/legs that securely grip onto mating components, to protect and organise wires, cables, and tubing as they pass through panel holes or sharp edges. These bushings are designed to provide a secure and cushioned passage, preventing damage to the wires and ensuring a clean and organised installation. The snap fit design of these bushings enables easy installation and removal by hand without the need for additional tools or fasteners. They can be used for mounting, spacing, alignment, or as protective sleeves for wires, cables, or connectors. They are commonly used in industries such as electronics, automotive, aerospace, and manufacturing.

Panel Thickness Range - 0.8mm to 3.2mm

UL94-V2
Temperature range: -30oC to +80oC
Nylon 66
RoHS Compliant
Only available in BLACK

SUPPLIED IN PACKS OF 100 UNITS

Related Products

Open Snap Bushings

Universal Snap Bushings

Open/Closed Snap Bushings

8 products

Product Code	Dim A	Dim B	Dim C	Dim D	Panel Thickness	Price per pack
NSFB-8	7.60mm	8.00mm	5.00mm	9.90mm	0.80-3.20mm	£5.04
NSFB-10	9.50mm	10.20mm	6.80mm	12.00mm	0.80-3.20mm	£5.40
NSFB-13	12.70mm	10.30mm	9.30mm	14.90mm	0.80-3.20mm	£5.80
NSFB-16	15.70mm	10.20mm	12.60mm	18.00mm	0.80-3.20mm	£6.20
NSFB-19	18.70mm	10.20mm	14.00mm	21.40mm	0.80-3.20mm	£6.80
NSFB-22	21.90mm	11.20mm	17.30mm	24.00mm	0.80-3.20mm	£8.00
NSFB-25	25.20mm	11.40mm	18.90mm	28.20mm	0.80-3.20mm	£10.36
NSFB-30	30.00mm	11.50mm	24.10mm	33.30mm	0.80-3.20mm	£12.40
