Open Snap Bushings
NOSB

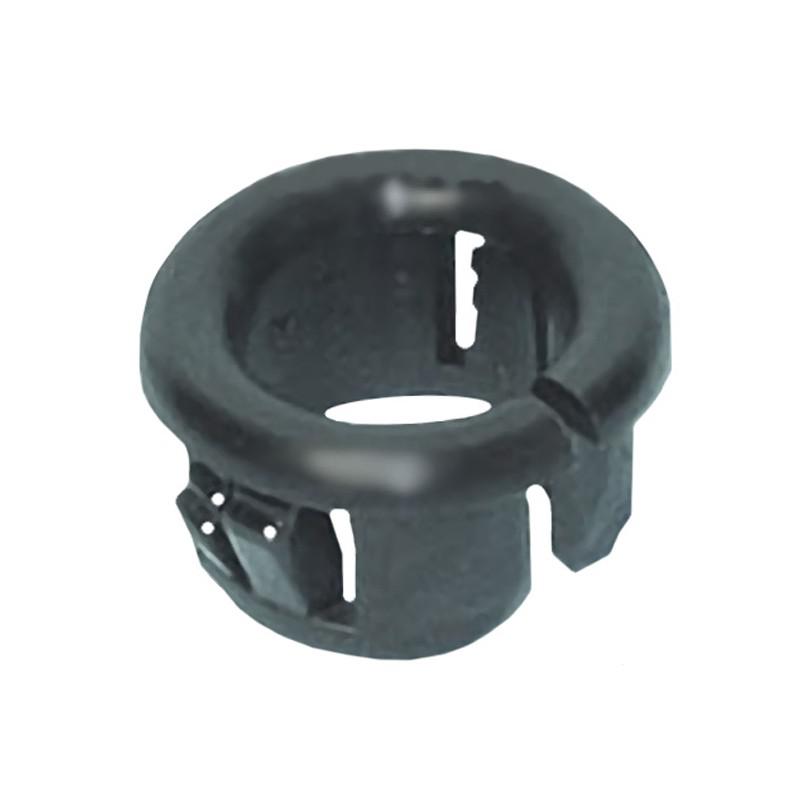

Our range of Open Snap Bushings
Adjustable
Protects wiring
Fits variable diameter hole
Neat finish
Durable
Cost effective
Panel Thickness Range - 0.7mm to 3.5mm
- UL94-V2
- Temperature range: -30oC to +80oC
- Nylon 66
- RoHS Compliant
- Only available in BLACK
Supplied in packs of 1000 units
Downloads
Open Snap Bushings
Related Products
| Product Code | OD | ID | Hole Dia | Height | Head Thick | Fig | Panel Thick | Enquire |
|---|---|---|---|---|---|---|---|---|
| NOSB-9.5A | 11.4mm | 6.6mm | 9.5mm | 6.5mm | 1.3mm | 1 | 0.7-1.7mm |
|
| NOSB-9.5B | 10.7mm | 6.7mm | 9.5mm | 9.9mm | 1.3mm | 1 | 0.8-3.2mm |
|
| NOSB-11.1 | 12.7mm | 7.9mm | 11.1mm | 10.3mm | 1.6mm | 1 | 0.8-3.2mm |
|
| NOSB-13 | 14.9mm | 9.0mm | 13.0mm | 10.5mm | 1.5mm | 1 | 0.8-3.5mm |
|
| NOSB-16 | 18.0mm | 10.5mm | 16.0mm | 10.5mm | 1.6mm | 1 | 1.2-3.5mm |
|
| NOSB-19 | 20.6mm | 14.5mm | 19.0mm | 11.0mm | 1.3mm | 1 | 1.2-3.3mm |
|
| NOSB-25.4 | 26.6mm | 20.6mm | 25.4mm | 10.3mm | 1.6mm | 2 | 0.8-3.2mm |
|
| NOSB-27.8 | 29.4mm | 22.2mm | 27.8mm | 10.3mm | 1.6mm | 2 | 0.8-3.2mm |
|
| NOSB-31.8 | 34.1mm | 26.6mm | 31.8mm | 10.3mm | 1.6mm | 2 | 0.8-3.2mm |
|
| NOSB-34.9 | 37.3mm | 29.7mm | 34.9mm | 10.3mm | 1.6mm | 2 | 0.8-3.2mm |
|
| NOSB-38.1 | 40.1mm | 31.7mm | 38.1mm | 10.7mm | 1.6mm | 2 | 0.8-3.2mm |
|
