Locking PCB Support Posts

Circuit board support, suitable for connecting PCBs together.

Available for various hole sizes and panel thicknesses.

Please see table below for types and sizes available.

Locking Circuit Board Support Posts Series 1
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 0.79 - 1.98mm

Click image for details

Locking Circuit Board Support Posts Series 2
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 1.98 - 3.56mm

Click image for details

Locking Circuit Board Support Posts Series 3
Top Hole: 4.00mm | Top Panel Thickness: 2.36mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 0.79 - 1.98mm

Click image for details

Locking Circuit Board Support Posts Series 4
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 0.79 - 1.98mm

Click image for details

Locking Circuit Board Support Posts Series 5
Top Hole: 4.75mm | Top Panel Thickness: 0.79-1.98mm | Bottom Hole: 4.00mm | Bottom Panel Thickness: 1.57mm

Click image for details

Locking Circuit Board Support Posts Series 6
Top Hole: 4.00mm | Top Panel Thickness: 2.36mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 1.98 - 3.56mm

Click image for details

Locking Circuit Board Support Posts Series 7
Top Hole: 4.75mm | Top Panel Thickness: 0.79-1.98mm | Bottom Hole: 4.00mm | Bottom Panel Thickness: 1.60mm

Click image for details

Locking Circuit Board Support Posts Series 8
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 0.2 - 1.4mm

Click image for details

Locking Circuit Board Support Posts Series 9
Top Hole: 3.18mm | Top Panel Thickness: 1.60mm | Bottom Hole: 3.18mm | Bottom Panel Thickness: 0.79 - 1.98mm

Click image for details

Locking Circuit Board Support Posts Series 10
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 0.79 - 1.98mm

Click image for details

Locking Circuit Board Support Posts Series 11
Top Hole: 3.18mm | Top Panel Thickness: 1.57mm | Bottom Hole: 3.18mm | Bottom Panel Thickness: 1.57mm

Click image for details


Locking Circuit Board Support Posts Arrowhead
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 0.79-1.98mm

Click image for details

Locking Circuit Board Support Posts Arrowhead (2)
Top Hole: 4.00mm | Top Panel Thickness: 1.00-2.00mm | Bottom Hole: 4.80mm | Bottom Panel Thickness: 0.50-2.30mm

Click image for details

Locking Circuit Board Support Posts Series T
Top Hole: 3.18mm | Top Panel Thickness: 1.57mm | Bottom Hole: 2.54mm | Bottom Panel Thickness: 1.63mm

Click image for details

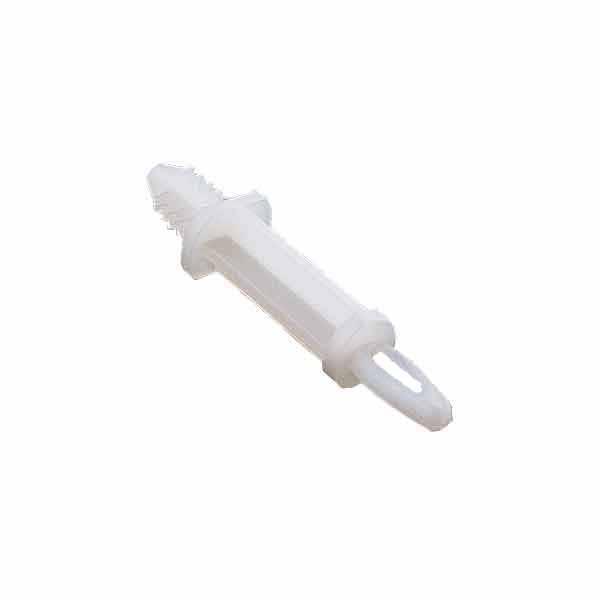

Blind Hole Circuit Board Support
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 7.92mm | Bottom Panel Thickness: 6.40mm

Click image for details

Blind Hole Circuit Board Support Series 2
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 7.92mm | Bottom Panel Thickness: 6.40mm

Click image for details

Blind Hole Circuit Board Support Series 3
Top Hole: 4.00mm | Top Panel Thickness: 0.79-1.98mm | Bottom Hole: 7.92mm | Bottom Panel Thickness: 6.40mm

Click image for details

Blind Hole Circuit Board Support Series 4
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 6.35mm | Bottom Panel Thickness: 6.40mm

Click image for details

Blind Hole Circuit Board Support Series 5
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 6.35mm | Bottom Panel Thickness: 6.40mm

Click image for details

Blind Hole Circuit Board Support Series 6
Top Hole: 4.00mm | Top Panel Thickness: 0.79-1.98mm | Bottom Hole: 6.35mm | Bottom Panel Thickness: 6.40mm

Click image for details

Edge Holding Locking Circuit Board Support
Top Hole: 4.00mm | Top Panel Thickness: 1.57mm | Bottom Hole: 4.75mm | Bottom Panel Thickness: 0.79 - 1.98mm

Click image for details

Blind Hole Circuit Board Support Dual Fir Tree
Top Hole: 7.92mm | Top Panel Thickness: 6.35mm | Bottom Hole: 7.92mm | Bottom Panel Thickness: 6.35mm

Click image for details
