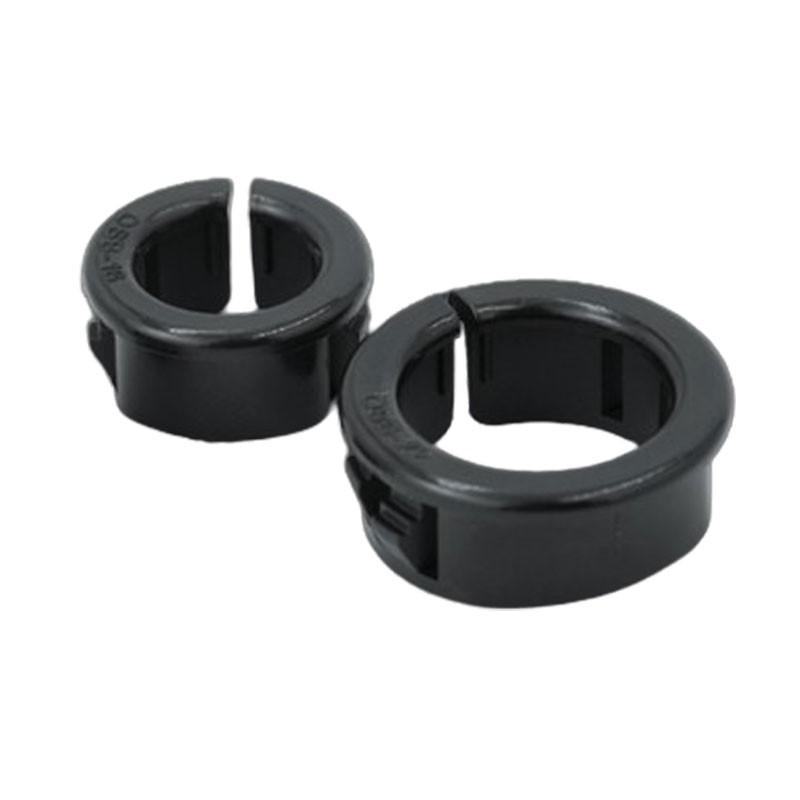

Open/Closed Snap Bushings

Reference NOCSB

Nyfast's nylon open/closed snap bushings are designed to protect and organise wires, cables, and tubing as they pass through panel holes or sharp edges and provide a secure and cushioned passage, preventing damage to the wires and ensuring a clean and organised installation. The design of these bushings features a split or hinged structure, allowing for easy installation and retrofitting. The open-style snap bushings have a split along one side, enabling quick and convenient insertion and removal of wires or cables without the need for disconnecting them. Some examples of applications would be automotive wire harnesses, electrical cabinets and control panels.

Panel Thickness Range - 0.8mm to 3.2mm

UL94-V2
Temperature range: -30oC to +80oC
Nylon 66
RoHS Compliant
Only available in BLACK

SUPPLIED IN PACKS OF 100 UNITS

Related Products

Open Snap Bushings

Universal Snap Bushings

Snap Fit Bushings

6 products

Product Code	Panel Thickness	Dim A	Dim B	Dim C	Dim L	Price per pack
NOCSB-10	0.80-3.20mm	10.00mm	6.90mm	12.20mm	9.60mm	£5.20
NOCSB-13	0.80-3.20mm	13.20mm	8.00mm	15.50mm	10.30mm	£5.92
NOCSB-16	0.80-3.20mm	16.00mm	11.80mm	19.00mm	10.30mm	£6.40
NOCSB-19	0.80-3.20mm	19.00mm	13.00mm	21.70mm	10.30mm	£6.80
NOCSB-22	0.80-3.20mm	22.20mm	17.20mm	25.00mm	10.30mm	£9.12
NOCSB-26	0.80-3.20mm	25.50mm	20.60mm	28.20mm	10.80mm	£11.00
