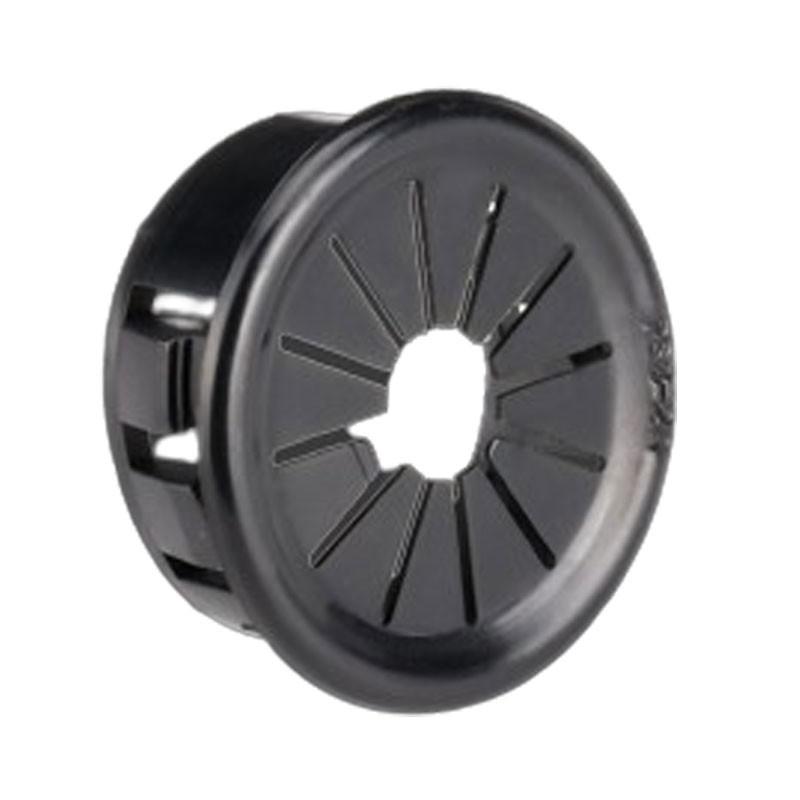

Universal Snap Bushings

Reference NUSB

Our Nylon Universal Snap Bushings with Flexible Shutters are designed to provide effective cable management and protection in various applications. The key feature of these snap bushings is their flexible shutters, they offer a unique solution for accommodating different cable sizes and shapes. The shutters are designed to adapt and conform to the contours of the cables, providing a secure and snug fit. This versatility allows for easy installation and ensures that cables are protected from abrasion, sharp edges, and other potential damage. Easy to install, just apply pressure and push in by hand, provides a secure fit without any need for tools. commonly used in electrical enclosures, control panels, computer desks, automotive applications

Panel Thickness Range - 0.8mm to 3.2mm

UL94-V2
Temperature range: -30oC to +80oC
Nylon 66
RoHS Compliant
Only available in BLACK

SUPPLIED IN PACKS OF 100 UNITS

Related Products

Open Snap Bushings

Open/Closed Snap Bushings

Snap Fit Bushings

8 products

Product Code	Panel Thickness	Dim A	Dim B	Dim C	Dim L	Price per pack
NUSB-16	0.80-3.20mm	15.90mm	11.10mm	18.30mm	10.30mm	£6.00
NUSB-19	0.80-3.20mm	19.10mm	12.70mm	21.80mm	9.90mm	£6.72
NUSB-21	0.80-3.20mm	20.30mm	12.70mm	22.60mm	9.90mm	£7.60
NUSB-22	0.80-3.20mm	22.20mm	14.30mm	23.80mm	11.50mm	£8.40
NUSB-25	0.80-3.20mm	25.40mm	20.40mm	28.50mm	11.30mm	£10.40
NUSB-28	0.80-3.20mm	27.60mm	22.40mm	30.80mm	11.30mm	£12.00
NUSB-35	0.80-3.20mm	34.90mm	29.30mm	37.50mm	11.30mm	£15.60
NUSB-38	0.80-3.20mm	38.10mm	31.00mm	41.00mm	11.00mm	£17.20
