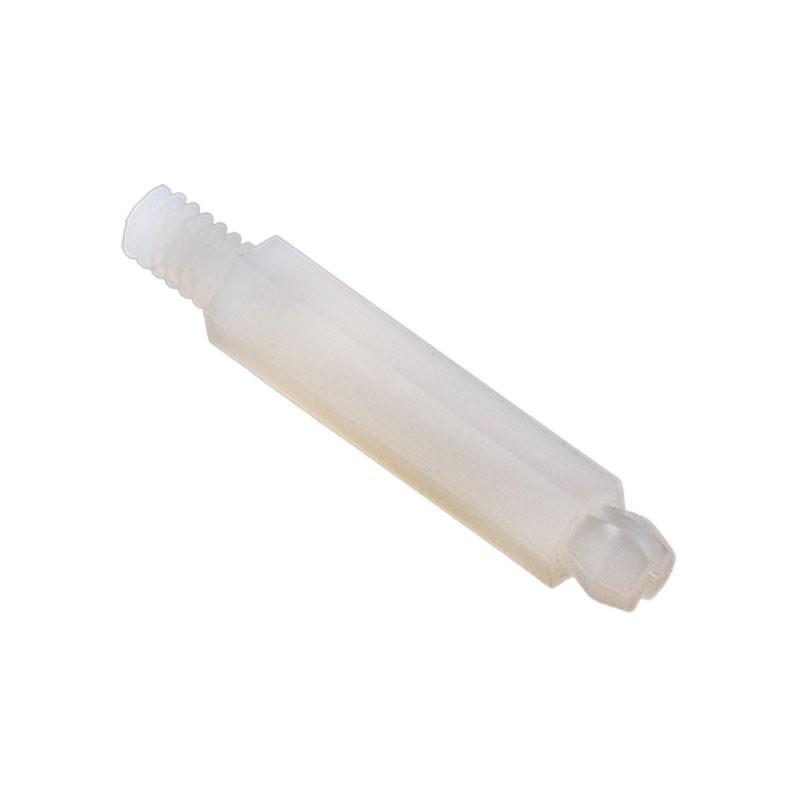

Studded Hex Mini PCB Support Non-Locking Two Prong - Series 1
NSCBS1
Our range of studded hex mini pcb support non-locking two prong - series 1. Designed to fit an M3 or M4 threaded hole.
- Hole: 3.86mm
- Panel Thickness: 1.57mm
- Thread Length: 5.97mm
Nylon 66 natural
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C
Flame retardant (V0) available to order – please contact us
Supplied in packs of 1000
Downloads
Studded Hex Support - Series 1
Related Products
| Product Code | Thread (M) | Top Hole | Panel Thick | Length | Price per pack | Quantity | |
|---|---|---|---|---|---|---|---|
| NSCBS1-M3-2-66 | M3 | 3.86mm | 1.57mm | 3.20mm | £44.63 |
|
|
| NSCBS1-M3-3-66 | M3 | 3.86mm | 1.57mm | 4.80mm | £44.63 |
|
|
| NSCBS1-M3-4-66 | M3 | 3.86mm | 1.57mm | 6.40mm | £52.25 |
|
|
| NSCBS1-M3-6-66 | M3 | 3.86mm | 1.57mm | 9.50mm | £52.25 |
|
|
| NSCBS1-M3-8-66 | M3 | 3.86mm | 1.57mm | 12.70mm | £54.23 |
|
|
| NSCBS1-M3-10-66 | M3 | 3.86mm | 1.57mm | 15.90mm | £54.23 |
|
|
| NSCBS1-M3-12-66 | M3 | 3.86mm | 1.57mm | 19.10mm | £60.15 |
|
|
| NSCBS1-M3-14-66 | M3 | 3.86mm | 1.57mm | 22.20mm | £60.15 |
|
|
| NSCBS1-M4-2-66 | M4 | 3.86mm | 1.57mm | 3.20mm | £44.63 |
|
|
| NSCBS1-M4-3-66 | M4 | 3.86mm | 1.57mm | 4.80mm | £44.63 |
|
|
| NSCBS1-M4-4-66 | M4 | 3.86mm | 1.57mm | 6.40mm | £48.35 |
|
|
| NSCBS1-M4-6-66 | M4 | 3.86mm | 1.57mm | 9.50mm | £48.35 |
|
|
| NSCBS1-M4-8-66 | M4 | 3.86mm | 1.57mm | 12.70mm | £54.23 |
|
|
| NSCBS1-M4-10-66 | M4 | 3.86mm | 1.57mm | 15.90mm | £54.23 |
|
|
| NSCBS1-M4-12-66 | M4 | 3.86mm | 1.57mm | 19.10mm | £60.15 |
|
|
| NSCBS1-M4-14-66 | M4 | 3.86mm | 1.57mm | 22.20mm | £60.15 |
|
