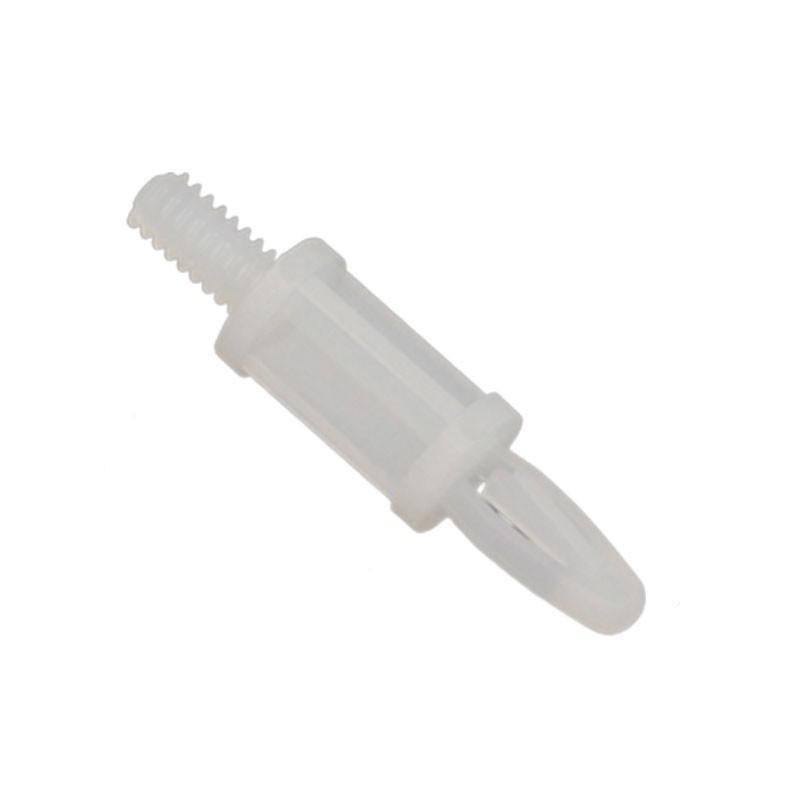

Studded PCB Support Locking Bayonet - M4
NSCBS7
Our range of studded PCB support locking bayonet - M4. Designed to be used with a threaded M4 hole and a locks into a 4.00mm hole on the PCB securely fixed by a bayonet.
- Hole: 4.00mm
- Panel Thickness: 1.57mm
- Thread: M4
- Thread Length: 7.60mm
Nylon 66 Natural
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C
Flame retardant (V0) and Black available to order – please phone
Supplied in packs of 1000
Studded Hex PCB Support - M4
| Product Code | Hole Dia | Panel Thick | Length | Price per pack | Quantity | |
|---|---|---|---|---|---|---|
| NSCBS7-4-66 | 4.00mm | 1.57mm | 6.40mm | £52.70 |
|
|
| NSCBS7-6-66 | 4.00mm | 1.57mm | 9.50mm | £52.70 |
|
|
| NSCBS7-8-66 | 4.00mm | 1.57mm | 12.70mm | £57.05 |
|
|
| NSCBS7-10-66 | 4.00mm | 1.57mm | 15.90mm | £57.05 |
|
|
| NSCBS7-12-66 | 4.00mm | 1.57mm | 19.10mm | £60.75 |
|
|
| NSCBS7-14-66 | 4.00mm | 1.57mm | 22.20mm | £66.85 |
|
|
| NSCBS7-16-66 | 4.00mm | 1.57mm | 25.40mm | £66.85 |
|
