Snap Rivets - White

Reference NR

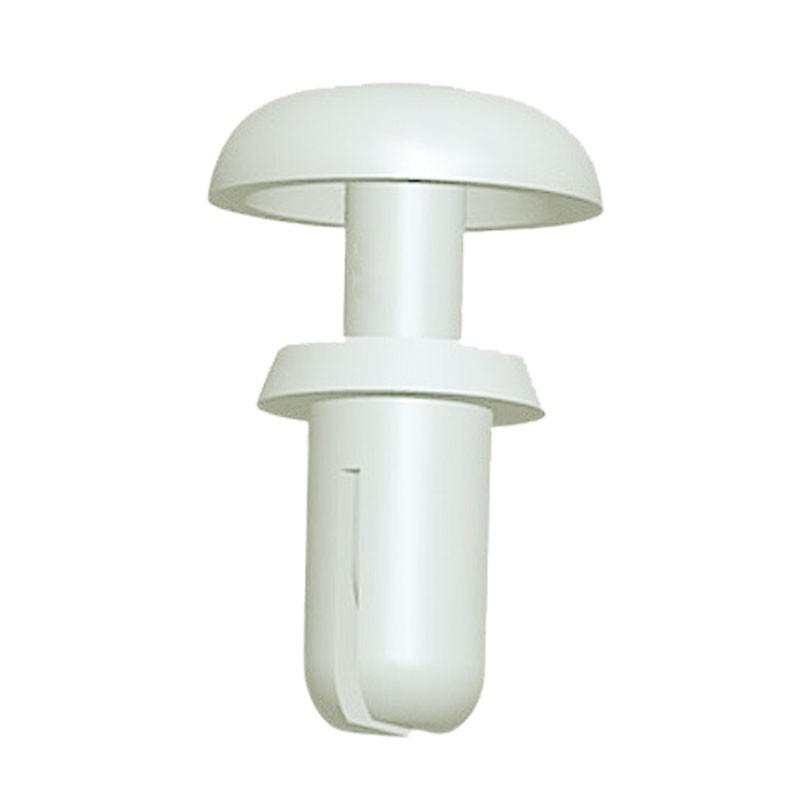

Our range of white nylon snap rivets are pre-assembled, just push into the hole and push down to securely fasten panels together. A neat, clean finish - these plastic push in two-piece fasteners represent the quickest and easiest to use method of joining two panels

Nylon 6
UL94-V2

Temperature Range: -30 to +85°C
White
Other Colours to specification to order
Available in Flame Retardant (V0) to order
RoHS compliant

Supplied in packs of 1000

Please click here for Black Nylon Snap Rivets

Downloads

Snap Rivets

Related Products

Snap Rivets - Black

H Type Snap Rivets

T Type Snap Rivets

Snap Rivet Lock Supports

50 products

Product Code	Hole Dia	Head Dia	Head Height	Length	Panel Thick	Price per pack
NR-2024W	2.1mm	4.2mm	1.2mm	2.4mm	0.6-1.2mm	£49.02
NR-2032W	2.1mm	4.2mm	1.2mm	3.2mm	1.3-2.0mm	£49.02
NR-2040W	2.1mm	4.2mm	1.2mm	4.0mm	2.1.-2.8mm	£49.02
NR-2048W	2.1mm	4.2mm	1.2mm	4.8mm	2.9-3.6mm	£53.08
NR-2056W	2.1mm	4.2mm	1.2mm	5.6mm	3.7-4.4mm	£54.36
NR-2064W	2.1mm	4.2mm	1.2mm	6.4mm	4.5-5.2mm	£55.05
NR-2632W	2.7mm	5.0mm	1.4mm	3.2mm	1.0-2.0mm	£41.18
NR-2642W	2.7mm	5.0mm	1.4mm	4.2mm	2.0-3.0mm	£41.18
NR-2648W	2.7mm	5.0mm	1.4mm	4.8mm	2.7-3.6mm	£41.18
NR-2655W	2.7mm	5.0mm	1.4mm	5.5mm	3.4-4.3mm	£41.76
NR-2664W	2.7mm	5.0mm	1.4mm	6.4mm	4.3-5.2mm	£43.59
NR-2672W	2.7mm	5.0mm	1.4mm	7.2mm	5.1-6.0mm	£44.72
NR-3035W	3.1mm	6.4mm	1.6mm	3.5mm	1.0-2.0mm	£40.99
NR-3045W	3.1mm	6.4mm	1.6mm	4.5mm	2.0-3.0mm	£44.11
NR-3050W	3.1mm	6.4mm	1.6mm	5.0mm	2.5-3.5mm	£44.25
NR-3055W	3.1mm	6.4mm	1.6mm	5.5mm	3.0-4.0mm	£44.25
NR-3065W	3.1mm	6.4mm	1.6mm	6.5mm	4.0-5.0mm	£44.25
NR-3075W	3.1mm	6.4mm	1.6mm	7.5mm	5.0-6.0mm	£45.57
NR-3080W	3.1mm	6.4mm	1.6mm	8.0mm	5.5-6.5mm	£45.57
NR-3090W	3.1mm	6.4mm	1.6mm	9.0mm	6.5-7.5mm	£47.05
NR-3100W	3.1mm	6.4mm	1.6mm	10.0mm	7.5-8.5mm	£49.69
NR-3145W	3.1mm	6.4mm	1.6mm	14.5mm	11.5-13.0mm	£49.69
NR-3230W	3.2mm	6.4mm	1.6mm	23.0mm	20.5-21.5mm	£66.06
NR-3535W	3.6mm	6.4mm	1.6mm	3.5mm	1.2-2.1mm	£51.01
NR-3545W	3.6mm	6.4mm	1.6mm	4.5mm	2.2-3.1mm	£52.36
NR-3550W	3.6mm	6.4mm	1.6mm	5.0mm	2.7-3.6mm	£53.10
NR-3555W	3.6mm	6.4mm	1.6mm	5.5mm	3.2-4.1mm	£54.12
NR-3560W	3.6mm	6.4mm	1.6mm	6.0mm	3.7-4.6mm	£55.88
NR-3570W	3.6mm	6.4mm	1.6mm	7.0mm	4.7-5.6mm	£58.26
NR-3580W	3.6mm	6.4mm	1.6mm	8.0mm	5.7-6.6mm	£60.47
NR-4040W	4.1mm	8.0mm	1.8mm	4.0mm	1.7-2.5mm	£48.37
NR-4050W	4.1mm	8.0mm	1.8mm	5.0mm	2.5-3.5mm	£48.37
NR-4055W	4.1mm	8.0mm	1.8mm	5.5mm	3.0-4.0mm	£48.37
NR-4060W	4.1mm	8.0mm	1.8mm	6.0mm	3.5-4.5mm	£48.37
NR-4070W	4.1mm	8.0mm	1.8mm	7.0mm	4.5-5.5mm	£51.01
NR-4080W	4.1mm	8.0mm	1.8mm	8.0mm	5.5-6.5mm	£51.01
NR-4090W	4.1mm	8.0mm	1.8mm	9.0mm	6.5-7.5mm	£51.01
NR-4100W	4.1mm	8.0mm	2.2mm	10.0mm	7.5-8.5mm	£58.01
NR-4120W	4.1mm	8.0mm	1.8mm	12.0mm	9.0-10.5mm	£62.07
NR-4155W	4.1mm	8.0mm	1.8mm	15.5mm	12.5-14.0mm	£62.07
NR-5045W	5.1mm	9.0mm	2.2mm	4.5mm	1.5-2.5mm	£52.62
NR-5055W	5.1mm	9.0mm	2.2mm	5.5mm	2.5-3.5mm	£52.62
NR-5065W	5.1mm	9.0mm	2.2mm	6.5mm	3.5-4.5mm	£52.62
NR-5075W	5.1mm	9.0mm	2.2mm	7.5mm	4.5-5.5mm	£52.62
NR-5085W	5.1mm	9.0mm	2.2mm	8.5mm	5.5-6.5mm	£55.45
NR-5095W	5.1mm	9.0mm	2.2mm	9.5mm	6.5-7.5mm	£64.71
NR-5105W	5.1mm	9.0mm	2.2mm	10.5mm	7.5-8.5mm	£68.21
NR-5865W	6.0mm	12.0mm	2.7mm	6.3mm	3.0-4.5mm	£77.69
NR-6060W	6.1mm	12.0mm	2.5mm	6.0mm	2.5-4.0mm	£84.41
NR-6080W	6.1mm	12.0mm	3.0mm	8.0mm	4.0-5.5mm	£87.55
