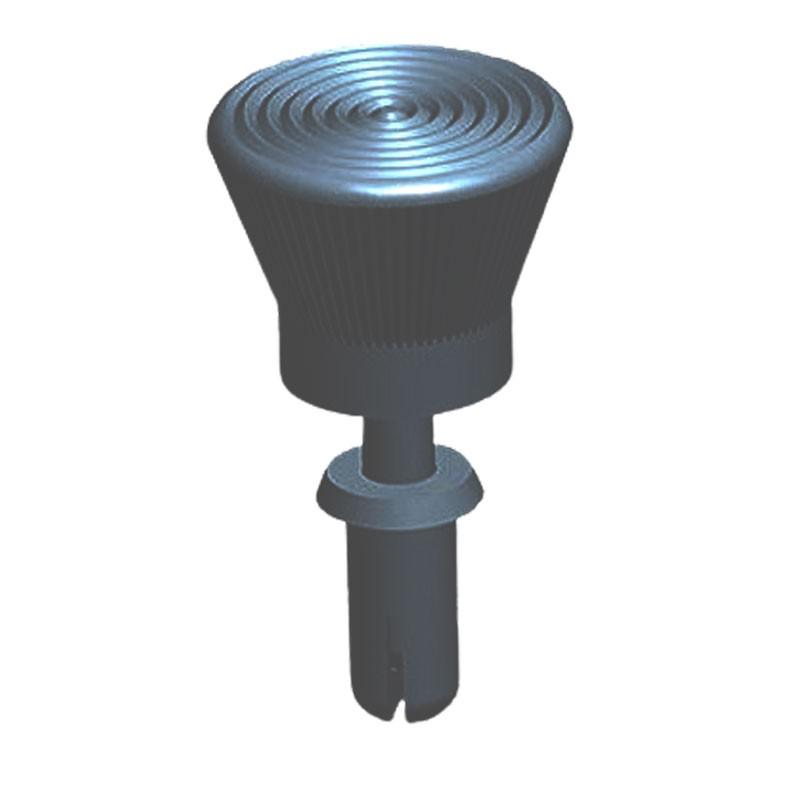

T Type Snap Rivets
NRT
Easy to insert and remove nylon rivet
Pre assembled
Pop in hole and push down and pull out
Clean & neat finish
Nylon 6
UL94-V2
Temperature range: -30 to +85°C
Black as standard. White available to order
Colour to specification to order
Available in Flame Retardent (V0) to order
RoHS compliant.
Supplied in packs of 1000
Downloads
T TYPE SNAP RIVETS
| Product Code | Hole Dia | Panel Thick | Head Dia | Head Height | Length | Price per pack | Quantity | |
|---|---|---|---|---|---|---|---|---|
| NRT-3035 | 3.1mm | 1.0-2.0mm | 10mm | 8mm | 3.5mm | £51.01 |
|
|
| NRT-3045 | 3.1mm | 2.0-3.0mm | 10mm | 8mm | 4.5mm | £51.01 |
|
|
| NRT-3055 | 3.1mm | 3.0-4.0mm | 10mm | 8mm | 5.5mm | £51.01 |
|
|
| NRT-3065 | 3.1mm | 4.0-5.0mm | 10mm | 8mm | 6.5mm | £51.01 |
|
|
| NRT-3075 | 3.1mm | 5.0-6.0mm | 10mm | 8mm | 7.5mm | £51.01 |
|
|
| NRT-3080 | 3.1mm | 5.5-6.5mm | 10mm | 8mm | 8mm | £51.01 |
|
|
| NRT-3535 | 3.6mm | 1.0-2.0mm | 10mm | 8mm | 3.5mm | £52.99 |
|
|
| NRT-3545 | 3.6mm | 2.0-3.0mm | 10mm | 8mm | 4.5mm | £52.99 |
|
|
| NRT-3555 | 3.6mm | 3.0-4.0mm | 10mm | 8mm | 5.5mm | £52.99 |
|
|
| NRT-3560 | 3.6mm | 3.5-4.5mm | 10mm | 8mm | 6mm | £52.99 |
|
|
| NRT-3570 | 3.6mm | 4.5-5.5mm | 10mm | 8mm | 7mm | £52.99 |
|
|
| NRT-3580 | 3.6mm | 5.5-6.5mm | 10mm | 8mm | 8mm | £52.99 |
|
|
| NRT-4050 | 4.1mm | 2.5-3.5mm | 12mm | 8mm | 5mm | £54.41 |
|
|
| NRT-4060 | 4.1mm | 3.5-4.5mm | 12mm | 8mm | 6mm | £54.41 |
|
|
| NRT-4070 | 4.1mm | 4.5-5.5mm | 12mm | 8mm | 7mm | £54.41 |
|
|
| NRT-4080 | 4.1mm | 5.5-6.5mm | 12mm | 8mm | 8mm | £54.41 |
|
|
| NRT-4090 | 4.1mm | 6.5-7.5mm | 12mm | 8mm | 9mm | £54.41 |
|
|
| NRT-4100 | 4.1mm | 7.5-8.5mm | 12mm | 8mm | 10mm | £54.41 |
|
