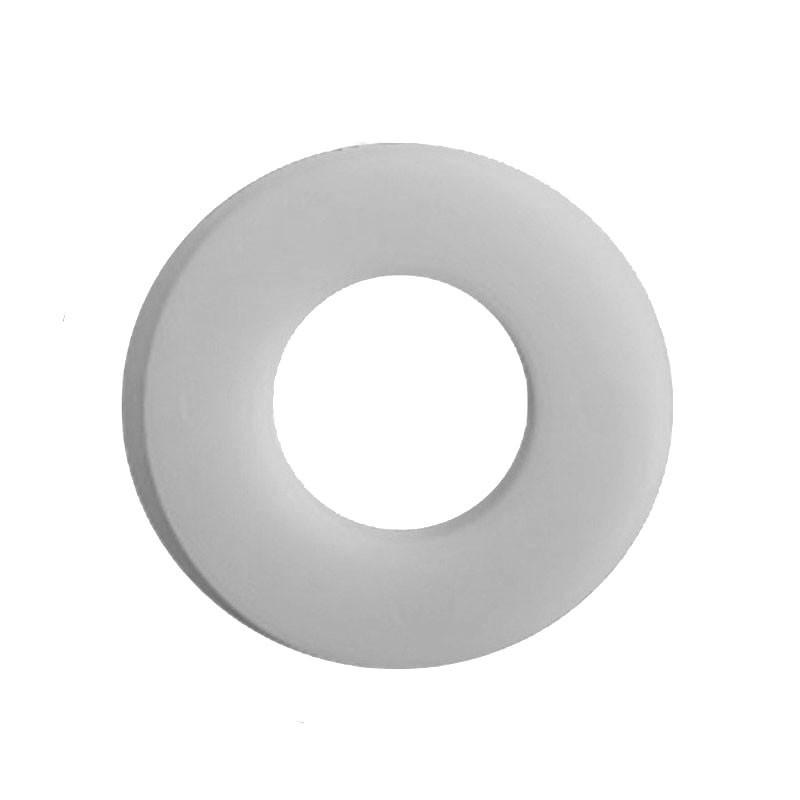

Nylon Alternative Flat Washers
AFW
Our nylon alternative flat washers, in nylon 66 are another option amongst our already expansive range providing you with a larger variety of outer and inner dimensions alongside various thicknesses.
- Nylon 66
- UL94-V2
- RoHS Compliant
- Operating Temperature -35 to +85°C
Supplied in packs of 1000
Black Available to order *Please Call*
| Product Code | OD | ID | Thick | Price per pack | Quantity | |
|---|---|---|---|---|---|---|
| AFW-500-200-100 | 5.00mm | 2.00mm | 1.00mm | £23.91 |
|
|
| AFW-500-250-080 | 5.00mm | 2.50mm | 0.80mm | £23.91 |
|
|
| AFW-500-250-100 | 5.00mm | 2.50mm | 1.00mm | £23.91 |
|
|
| AFW-600-300-080 | 6.00mm | 3.00mm | 0.80mm | £26.25 |
|
|
| AFW-600-300-100 | 6.00mm | 3.00mm | 1.00mm | £26.25 |
|
|
| AFW-600-300-150 | 6.00mm | 3.00mm | 1.50mm | £27.30 |
|
|
| AFW-700-300-100 | 7.00mm | 3.00mm | 1.00mm | £26.25 |
|
|
| AFW-800-300-080 | 8.00mm | 3.00mm | 0.80mm | £23.91 |
|
|
| AFW-800-300-100 | 8.00mm | 3.00mm | 1.00mm | £23.91 |
|
|
| AFW-800-300-150 | 8.00mm | 3.00mm | 1.50mm | £26.25 |
|
|
| AFW-800-300-200 | 8.00mm | 3.00mm | 2.00mm | £27.30 |
|
|
| AFW-800-400-080 | 8.00mm | 4.00mm | 0.80mm | £28.00 |
|
|
| AFW-800-400-100 | 8.00mm | 4.00mm | 1.00mm | £28.00 |
|
|
| AFW-800-400-150 | 8.00mm | 4.00mm | 1.50mm | £29.75 |
|
|
| AFW-800-400-200 | 8.00mm | 4.00mm | 2.00mm | £30.80 |
|
|
| AFW-900-400-100 | 9.00mm | 4.00mm | 1.00mm | £30.95 |
|
|
| AFW-1000-400-100 | 10.00mm | 4.00mm | 1.00mm | £34.76 |
|
|
| AFW-1200-600-120 | 12.00mm | 6.00mm | 1.20mm | £38.50 |
|
|
| AFW-1600-800-100 | 16.00mm | 8.00mm | 1.00mm | £42.00 |
|
|
| AFW-1600-1000-100 | 16.00mm | 10.00mm | 1.00mm | £43.75 |
|
|
| AFW-1700-1200-100 | 17.00mm | 12.00mm | 1.00mm | £52.00 |
|
|
| AFW-2000-1000-100 | 20.00mm | 10.00mm | 1.00mm | £55.20 |
|
|
| AFW-2000-1200-100 | 20.00mm | 12.00mm | 1.00mm | £67.50 |
|
|
| AFW-2000-1200-200 | 20.00mm | 12.00mm | 2.00mm | £69.95 |
|
