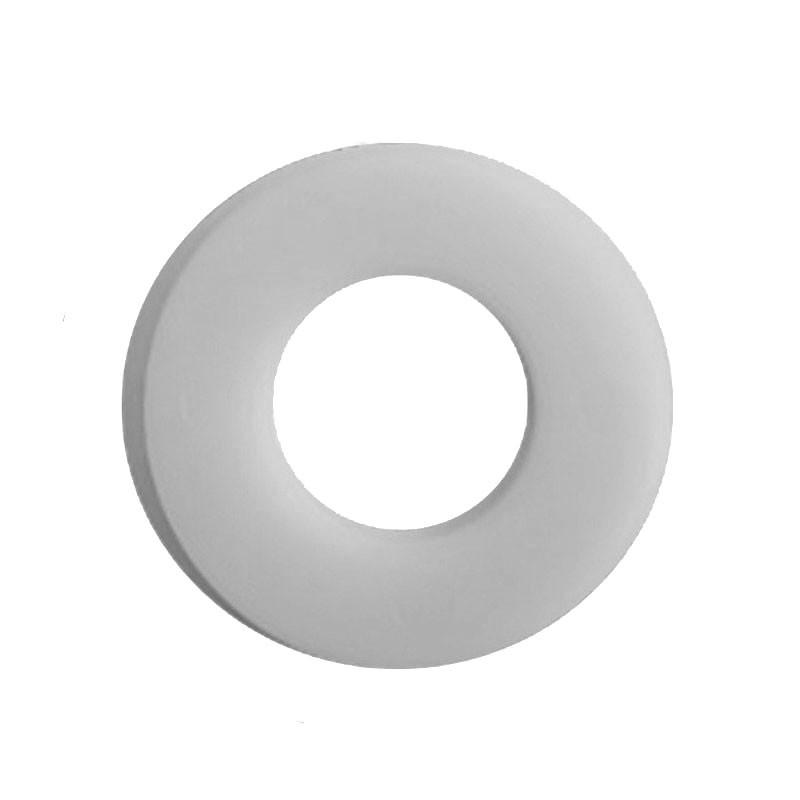

Nylon Standard Flat Washers

Reference FW

Our nylon standard flat washers have different dimensions to the metric plastic washers and are available in various thicknesses, along with a variety of outer and inner dimensions. Manufactured in nylon 66

Nylon 66
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C

Supplied in packs of 1000

Related Products

Slotted Cheese Head Machine Screw - Nylon Metric DIN 84

Hex Machine Screw - Nylon Metric DIN 933

Slotted Pan Head Machine Screw - Nylon Metric DIN 85

Slotted Countersunk Head Machine Screw - Metric Nylon DIN 963

Metric Nylon Hex Nuts - DIN 934

40 products

Product Code	OD	ID	Thick	Price per pack
FW-635-229-081	6.35mm	2.29mm	0.81mm	£19.44
FW-635-229-157	6.35mm	2.29mm	1.57mm	£20.71
FW-635-229-236	6.35mm	2.29mm	2.36mm	£21.97
FW-635-229-318	6.35mm	2.29mm	3.18mm	£23.24
FW-635-292-081	6.35mm	2.92mm	0.81mm	£19.44
FW-635-292-157	6.35mm	2.92mm	1.57mm	£22.90
FW-635-292-236	6.35mm	2.92mm	2.36mm	£24.16
FW-635-292-318	6.35mm	2.92mm	3.18mm	£26.69
FW-792-356-081	7.92mm	3.56mm	0.81mm	£22.97
FW-792-356-157	7.92mm	3.56mm	1.57mm	£24.24
FW-792-356-236	7.92mm	3.56mm	2.36mm	£25.50
FW-792-356-318	7.92mm	3.56mm	3.18mm	£28.03
FW-953-434-081	9.53mm	4.34mm	0.81mm	£23.72
FW-953-434-157	9.53mm	4.34mm	1.57mm	£24.98
FW-953-434-236	9.53mm	4.34mm	2.36mm	£25.83
FW-953-434-318	9.53mm	4.34mm	3.18mm	£28.78
FW-953-493-081	9.53mm	4.93mm	0.81mm	£23.72
FW-953-493-157	9.53mm	4.93mm	1.57mm	£24.98
FW-953-493-236	9.53mm	4.93mm	2.36mm	£26.25
FW-953-493-318	9.53mm	4.93mm	3.18mm	£28.78
FW-1270-653-081	12.7mm	6.53mm	0.81mm	£24.93
FW-1270-653-157	12.7mm	6.53mm	1.57mm	£27.46
FW-1270-653-236	12.7mm	6.53mm	2.36mm	£28.73
FW-1270-653-318	12.7mm	6.53mm	3.18mm	£32.19
FW-1270-805-081	12.7mm	8.05mm	0.81mm	£25.87
FW-1270-805-157	12.7mm	8.05mm	1.57mm	£28.40
FW-1270-805-236	12.7mm	8.05mm	2.36mm	£30.93
FW-1270-805-318	12.7mm	8.05mm	3.18mm	£33.46
FW-1588-965-081	15.88mm	9.65mm	0.81mm	£27.06
FW-1588-965-157	15.88mm	9.65mm	1.57mm	£29.59
FW-1588-965-236	15.88mm	9.65mm	2.36mm	£32.12
FW-1588-965-318	15.88mm	9.53mm	3.18mm	£35.91
FW-1905-1125-081	19.05mm	11.25mm	0.81mm	£31.14
FW-1905-1125-157	19.05mm	11.25mm	1.57mm	£33.67
FW-1905-1125-236	19.05mm	11.25mm	2.36mm	£36.20
FW-1905-1125-318	19.05mm	11.25mm	3.18mm	£40.00
FW-1905-1283-081	19.05mm	12.83mm	0.81mm	£35.33
FW-1905-1283-157	19.05mm	12.83mm	1.57mm	£37.86
FW-1905-1283-236	19.05mm	12.83mm	2.36mm	£48.47
FW-1905-1283-318	19.05mm	12.83mm	3.18mm	£53.03
