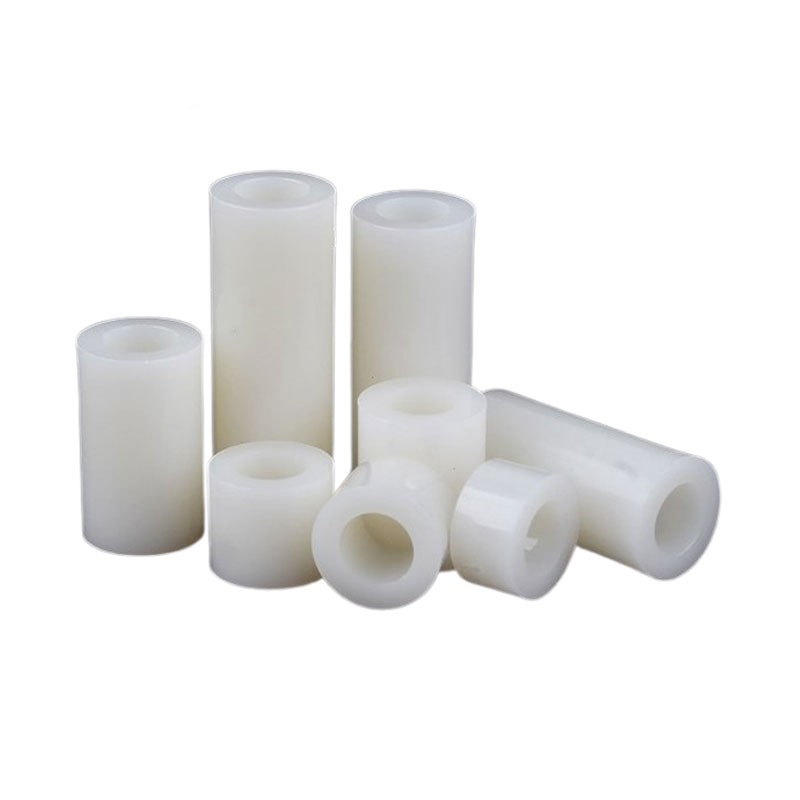

Special Metric Nylon Spacers (M12)

BMSPR

Nyfast's special metric M12 nylon spacers are useful for applications that require particular dimensions. They are made of Nylon 6 material are non-conductive and make an ideal insulator. Available with an Internal Diameter (Hole Size) 12.2mm and 13.0mm

  • Nylon 6
  • UL94-V2
  • RoHS Compliant
  • Operating Temperature -35 to +85°C

Supplied in packs of 1000

120 products
Product Code Desc OD ID Length Enquire
BMSPR-1800-1220-002 M12 18mm 12.2mm 2mm

BMSPR-1800-1220-003 M12 18mm 12.2mm 3mm

BMSPR-1800-1220-004 M12 18mm 12.2mm 4mm

BMSPR-1800-1220-005 M12 18mm 12.2mm 5mm

BMSPR-1800-1220-006 M12 18mm 12.2mm 6mm

BMSPR-1800-1220-007 M12 18mm 12.2mm 7mm

BMSPR-1800-1220-008 M12 18mm 12.2mm 8mm

BMSPR-1800-1220-009 M12 18mm 12.2mm 9mm

BMSPR-1800-1220-010 M12 18mm 12.2mm 10mm

BMSPR-1800-1220-011 M12 18mm 12.2mm 11mm

BMSPR-1800-1220-012 M12 18mm 12.2mm 12mm

BMSPR-1800-1220-013 M12 18mm 12.2mm 13mm

BMSPR-1800-1220-014 M12 18mm 12.2mm 14mm

BMSPR-1800-1220-015 M12 18mm 12.2mm 15mm

BMSPR-1800-1220-016 M12 18mm 12.2mm 16mm

BMSPR-1800-1220-017 M12 18mm 12.2mm 17mm

BMSPR-1800-1220-018 M12 18mm 12.2mm 18mm

BMSPR-1800-1220-019 M12 18mm 12.2mm 19mm

BMSPR-1800-1220-020 M12 18mm 12.2mm 20mm

BMSPR-1800-1220-021 M12 18mm 12.2mm 21mm

BMSPR-1800-1220-022 M12 18mm 12.2mm 22mm

BMSPR-1800-1220-023 M12 18mm 12.2mm 23mm

BMSPR-1800-1220-024 M12 18mm 12.2mm 24mm

BMSPR-1800-1220-025 M12 18mm 12.2mm 25mm

BMSPR-1800-1220-026 M12 18mm 12.2mm 26mm

BMSPR-1800-1220-027 M12 18mm 12.2mm 27mm

BMSPR-1800-1220-028 M12 18mm 12.2mm 28mm

BMSPR-1800-1220-029 M12 18mm 12.2mm 29mm

BMSPR-1800-1220-030 M12 18mm 12.2mm 30mm

BMSPR-2000-1300-002 M12 20mm 13.0mm 2mm

BMSPR-2000-1300-003 M12 20mm 13.0mm 3mm

BMSPR-2000-1300-004 M12 20mm 13.0mm 4mm

BMSPR-2000-1300-005 M12 20mm 13.0mm 5mm

BMSPR-2000-1300-006 M12 20mm 13.0mm 6mm

BMSPR-2000-1300-007 M12 20mm 13.0mm 7mm

BMSPR-2000-1300-008 M12 20mm 13.0mm 8mm

BMSPR-2000-1300-009 M12 20mm 13.0mm 9mm

BMSPR-2000-1300-010 M12 20mm 13.0mm 10mm

BMSPR-2000-1300-011 M12 20mm 13.0mm 11mm

BMSPR-2000-1300-012 M12 20mm 13.0mm 12mm

BMSPR-2000-1300-013 M12 20mm 13.0mm 13mm

BMSPR-2000-1300-014 M12 20mm 13.0mm 14mm

BMSPR-2000-1300-015 M12 20mm 13.0mm 15mm

BMSPR-2000-1300-016 M12 20mm 13.0mm 16mm

BMSPR-2000-1300-017 M12 20mm 13.0mm 17mm

BMSPR-2000-1300-018 M12 20mm 13.0mm 18mm

BMSPR-2000-1300-019 M12 20mm 13.0mm 19mm

BMSPR-2000-1300-020 M12 20mm 13.0mm 20mm

BMSPR-2000-1300-021 M12 20mm 13.0mm 21mm

BMSPR-2000-1300-022 M12 20mm 13.0mm 22mm

BMSPR-2000-1300-023 M12 20mm 13.0mm 23mm

BMSPR-2000-1300-024 M12 20mm 13.0mm 24mm

BMSPR-2000-1300-025 M12 20mm 13.0mm 25mm

BMSPR-2000-1300-026 M12 20mm 13.0mm 26mm

BMSPR-2000-1300-027 M12 20mm 13.0mm 27mm

BMSPR-2000-1300-028 M12 20mm 13.0mm 28mm

BMSPR-2000-1300-029 M12 20mm 13.0mm 29mm

BMSPR-2000-1300-030 M12 20mm 13.0mm 30mm

BMSPR-2400-1300-002 M12 24mm 13.0mm 2mm

BMSPR-2400-1300-003 M12 24mm 13.0mm 3mm

BMSPR-2400-1300-004 M12 24mm 13.0mm 4mm

BMSPR-2400-1300-005 M12 24mm 13.0mm 5mm

BMSPR-2400-1300-006 M12 24mm 13.0mm 6mm

BMSPR-2400-1300-007 M12 24mm 13.0mm 7mm

BMSPR-2400-1300-008 M12 24mm 13.0mm 8mm

BMSPR-2400-1300-009 M12 24mm 13.0mm 9mm

BMSPR-2400-1300-010 M12 24mm 13.0mm 10mm

BMSPR-2400-1300-011 M12 24mm 13.0mm 11mm

BMSPR-2400-1300-012 M12 24mm 13.0mm 12mm

BMSPR-2400-1300-013 M12 24mm 13.0mm 13mm

BMSPR-2400-1300-014 M12 24mm 13.0mm 14mm

BMSPR-2400-1300-015 M12 24mm 13.0mm 15mm

BMSPR-2400-1300-016 M12 24mm 13.0mm 16mm

BMSPR-2400-1300-017 M12 24mm 13.0mm 17mm

BMSPR-2400-1300-018 M12 24mm 13.0mm 18mm

BMSPR-2400-1300-019 M12 24mm 13.0mm 19mm

BMSPR-2400-1300-020 M12 24mm 13.0mm 20mm

BMSPR-2400-1300-021 M12 24mm 13.0mm 21mm

BMSPR-2400-1300-022 M12 24mm 13.0mm 22mm

BMSPR-2400-1300-023 M12 24mm 13.0mm 23mm

BMSPR-2400-1300-024 M12 24mm 13.0mm 24mm

BMSPR-2400-1300-025 M12 24mm 13.0mm 25mm

BMSPR-2400-1300-026 M12 24mm 13.0mm 26mm

BMSPR-2400-1300-027 M12 24mm 13.0mm 27mm

BMSPR-2400-1300-028 M12 24mm 13.0mm 28mm

BMSPR-2400-1300-029 M12 24mm 13.0mm 29mm

BMSPR-2400-1300-030 M12 24mm 13.0mm 30mm

BMSPR-3500-1300-002 M12 35mm 13.0mm 2mm

BMSPR-3500-1300-003 M12 35mm 13.0mm 3mm

BMSPR-3500-1300-004 M12 35mm 13.0mm 4mm

BMSPR-3500-1300-005 M12 35mm 13.0mm 5mm

BMSPR-3500-1300-006 M12 35mm 13.0mm 6mm

BMSPR-3500-1300-007 M12 35mm 13.0mm 7mm

BMSPR-3500-1300-0075 M12 35mm 13.0mm 7.5mm

BMSPR-3500-1300-008 M12 35mm 13.0mm 8mm

BMSPR-3500-1300-009 M12 35mm 13.0mm 9mm

BMSPR-3500-1300-010 M12 35mm 13.0mm 10mm

BMSPR-3500-1300-011 M12 35mm 13.0mm 11mm

BMSPR-3500-1300-012 M12 35mm 13.0mm 12mm

BMSPR-3500-1300-0125 M12 35mm 13.0mm 12.5mm

BMSPR-3500-1300-013 M12 35mm 13.0mm 13mm

BMSPR-3500-1300-014 M12 35mm 13.0mm 14mm

BMSPR-3500-1300-015 M12 35mm 13.0mm 15mm

BMSPR-3500-1300-016 M12 35mm 13.0mm 16mm

BMSPR-3500-1300-017 M12 35mm 13.0mm 17mm

BMSPR-3500-1300-0175 M12 35mm 13.0mm 17.5mm

BMSPR-3500-1300-018 M12 35mm 13.0mm 18mm

BMSPR-3500-1300-019 M12 35mm 13.0mm 19mm

BMSPR-3500-1300-020 M12 35mm 13.0mm 20mm

BMSPR-3500-1300-021 M12 35mm 13.0mm 21mm

BMSPR-3500-1300-022 M12 35mm 13.0mm 22mm

BMSPR-3500-1300-0225 M12 35mm 13.0mm 22.5mm

BMSPR-3500-1300-023 M12 35mm 13.0mm 23mm

BMSPR-3500-1300-024 M12 35mm 13.0mm 24mm

BMSPR-3500-1300-025 M12 35mm 13.0mm 25mm

BMSPR-3500-1300-026 M12 35mm 13.0mm 26mm

BMSPR-3500-1300-027 M12 35mm 13.0mm 27mm

BMSPR-3500-1300-028 M12 35mm 13.0mm 28mm

BMSPR-3500-1300-029 M12 35mm 13.0mm 29mm

BMSPR-3500-1300-030 M12 35mm 13.0mm 30mm
