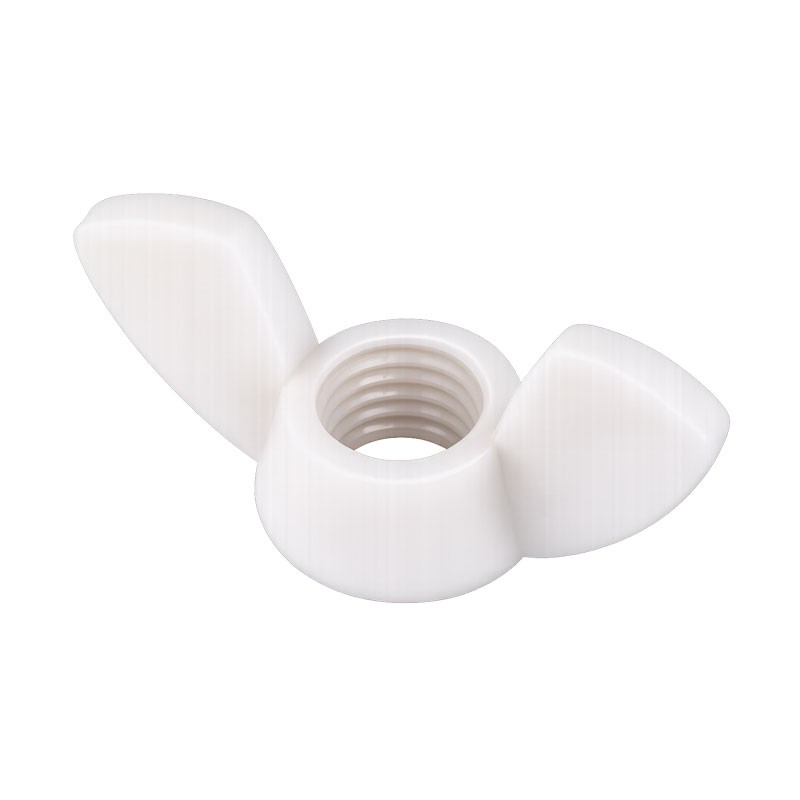

Metric Nylon Wing Nuts - Similar to DIN 315
WNG
Nyfast's plastic similar to DIN 315 Nylon Wing Nuts are suitable for hand tightening and releasing in all applications where easy access or break down is needed. These nylon wing nuts are strong and simple to use.
- Available in sizes, M3, M4, M5, M6, M8, M10 and M12
- Nylon 66
- UL94-V2
- Temperature range -35 to +85°C
Supplied in packs of 1000
Black available to order, please phone
Related Products
| Product Code | Colour | Desc | Thread | A | B | C | D | E | Price per pack | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MNHN-M4-WNG | Natural | M4 | 0.70mm | 3.90mm | 18.00mm | 8.50mm | 7.80mm | 1.70mm | £111.84 |
|
|
| MNHN-M5-WNG | Natural | M5 | 0.80mm | 5.00mm | 21.70mm | 10.70mm | 9.60mm | 2.20mm | £124.37 |
|
|
| MNHN-M6-WNG | Natural | M6 | 1.00mm | 5.80mm | 21.70mm | 12.50mm | 11.60mm | 2.70mm | £129.18 |
|
|
| MNHN-M8-WNG | Natural | M8 | 1.25mm | 7.70mm | 34.00mm | 16.30mm | 13.80mm | 2.90mm | £170.49 |
|
|
| MNHN-M10-WNG | Natural | M10 | 1.50mm | 9.70mm | 41.90mm | 20.30mm | 17.30mm | 3.30mm | £173.40 |
|
