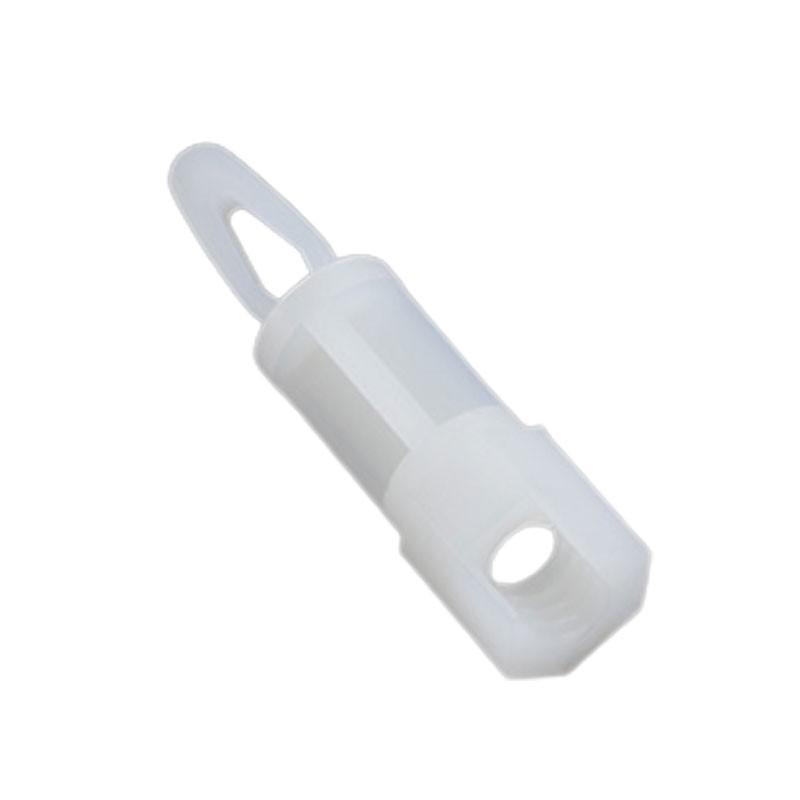

Threaded Hex PCB Support Non-Locking Bayonet - M4
NCBS-TF-M4
Our range of threaded hex PCB support non-locking bayonet - M4. Designed to be threaded onto an M4 stud and fits in to a 4.00mm hole in the PCB.
- Hole: 4.00mm
- Panel Thickness: 1.57mm
- Thread: M4
- Female thread depth: 3.82mm
- Width across the flats: 7.10mm
Nylon 66 Natural
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C
NON-LOCKING BAYONET FIXING
Supplied in packs of 1000
Downloads
Threaded Hex PCB Support - M4
Related Products
| Product Code | Hole Dia | Length (A) | Panel Thick | Price per pack | Quantity | |
|---|---|---|---|---|---|---|
| NCBS-TF-M4-6-01 | 4.00mm | 9.50mm | 1.57mm | £62.28 |
|
|
| NCBS-TF-M4-8-01 | 4.00mm | 12.70mm | 1.57mm | £62.28 |
|
|
| NCBS-TF-M4-10-01 | 4.00mm | 15.90mm | 1.57mm | £71.60 |
|
|
| NCBS-TF-M4-12-01 | 4.00mm | 19.10mm | 1.57mm | £71.60 |
|
|
| NCBS-TF-M4-14-01 | 4.00mm | 22.20mm | 1.57mm | £81.78 |
|
|
| NCBS-TF-M4-16-01 | 4.00mm | 25.40mm | 1.57mm | £81.78 |
|
