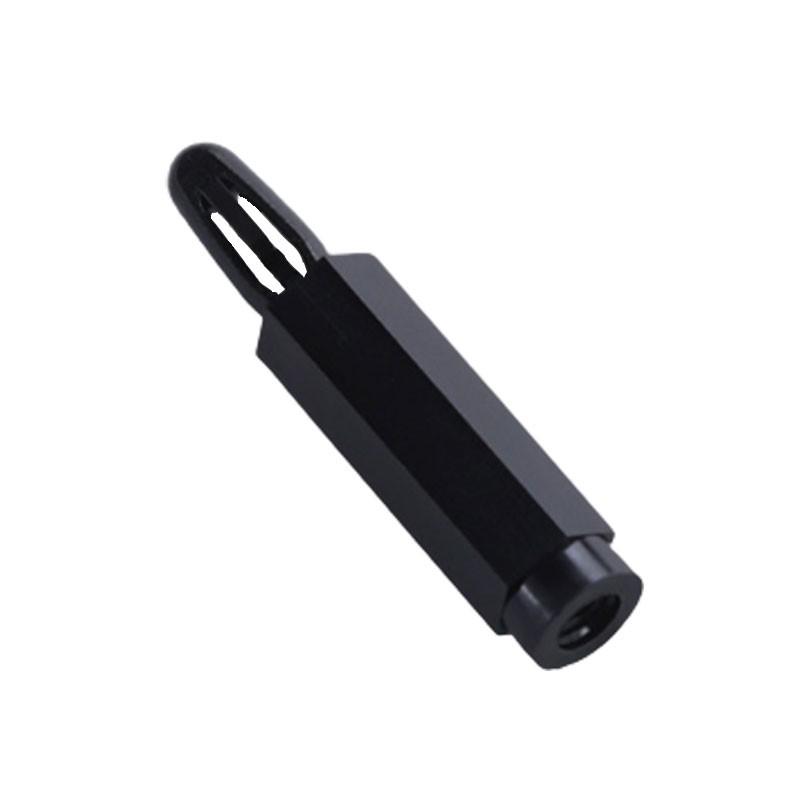

Metric Thread Circuit Board Support - M4
NTCBS-M4
Our Metric Thread Circuit Board Support - M4 has a hexagonal body shape and is suitable for use with an M4 screw, available in various body lengths from 5mm to 70mm, with a 9.50mm locking bayonet fixing, suitable for use with a PCB hole diameter of 4.00mm.
Metric Thread Circuit Board Support - M4
- Black Nylon 66
- UL94-V2
- RoHS Compliant
- Operating Temperature -35°C to +85°C
- PCB Hole size - 4.00mm
- Length of Bayonet - 9.50mm
- Hexagonal body style
-
Supplied in packs of 1000
Downloads
Metric Thread PCB Support - M4
Related Products
| Product Code | Dim (A) | Thread Length (B) | Width A/F (C) | Body Length (L) | Dim (T) | Panel Thick | Price per pack | Quantity | |
|---|---|---|---|---|---|---|---|---|---|
| NTCBS-M4-8-5-T1.7 | 1.20mm | 4.00mm | 8.00mm | 5.00mm | 1.70mm | 1.50-1.60mm | £140.18 |
|
|
| NTCBS-M4-8-6-T1.7 | 1.20mm | 4.00mm | 8.00mm | 6.00mm | 1.70mm | 1.50-1.60mm | £140.18 |
|
|
| NTCBS-M4-8-6-T2.2 | 1.20mm | 4.00mm | 8.00mm | 6.00mm | 2.20mm | 2.00-2.10mm | £140.18 |
|
|
| NTCBS-M4-8-7-T1.7 | 1.20mm | 4.00mm | 8.00mm | 7.00mm | 1.70mm | 1.50-1.60mm | £140.18 |
|
|
| NTCBS-M4-8-7-T2.2 | 1.20mm | 4.00mm | 8.00mm | 7.00mm | 2.20mm | 2.00-2.10mm | £104.18 |
|
|
| NTCBS-M4-8-8-T1.7 | 1.40mm | 6.00mm | 8.00mm | 8.00mm | 1.70mm | 1.50-1.60mm | £140.18 |
|
|
| NTCBS-M4-8-8-T2.2 | 1.40mm | 6.00mm | 8.00mm | 8.00mm | 2.20mm | 2.00-2.10mm | £140.18 |
|
|
| NTCBS-M4-8-9-T1.7 | 2.20mm | 7.00mm | 8.00mm | 9.00mm | 1.70mm | 1.50-1.60mm | £140.18 |
|
|
| NTCBS-M4-8-9-T2.2 | 2.20mm | 7.00mm | 8.00mm | 9.00mm | 2.20mm | 2.00-2.10mm | £140.18 |
|
|
| NTCBS-M4-8-10-T1.7 | 1.40mm | 8.00mm | 8.00mm | 10.00mm | 1.70mm | 1.50-1.60mm | £146.90 |
|
|
| NTCBS-M4-8-10-T2.2 | 1.40mm | 8.00mm | 8.00mm | 10.00mm | 2.20mm | 2.00-2.10mm | £146.90 |
|
|
| NTCBS-M4-8-12-T1.8 | 1.40mm | 10.00mm | 8.00mm | 12.00mm | 1.80mm | 1.60-1.70mm | £146.90 |
|
|
| NTCBS-M4-8-12-T2.2 | 1.40mm | 10.00mm | 8.00mm | 12.00mm | 2.20mm | 2.00-2.10mm | £146.90 |
|
|
| NTCBS-M4-8-13-T1.8 | 1.40mm | 10.00mm | 8.00mm | 13.00mm | 1.80mm | 1.60-1.70mm | £146.90 |
|
|
| NTCBS-M4-8-14-T2.2 | 1.40mm | 10.00mm | 8.00mm | 14.00mm | 2.20mm | 2.00-2.10mm | £146.90 |
|
|
| NTCBS-M4-8-15-T1.7 | 1.40mm | 10.00mm | 8.00mm | 15.00mm | 1.70mm | 1.50-1.60mm | £146.90 |
|
|
| NTCBS-M4-8-18-T1.7 | 2.20mm | 10.00mm | 8.00mm | 18.00mm | 1.70mm | 1.50-1.60mm | £161.98 |
|
|
| NTCBS-M4-8-18-T2.2 | 2.20mm | 10.00mm | 8.00mm | 18.00mm | 2.20mm | 2.00-2.10mm | £161.98 |
|
|
| NTCBS-M4-8-20-T1.7 | 1.40mm | 10.00mm | 8.00mm | 20.00mm | 1.70mm | 1.50-1.60mm | £170.08 |
|
|
| NTCBS-M4-8-23-T1.8 | 1.40mm | 10.00mm | 8.00mm | 23.00mm | 1.80mm | 1.60-1.70mm | £215.33 |
|
|
| NTCBS-M4-8-25-T1.7 | 1.40mm | 10.00mm | 8.00mm | 25.00mm | 1.70mm | 1.50-1.60mm | £215.33 |
|
|
| NTCBS-M4-8-25-T2.2 | 1.40mm | 10.00mm | 8.00mm | 25.00mm | 2.20mm | 2.00-2.10mm | £215.33 |
|
|
| NTCBS-M4-8-30C-T1.7 | 1.80mm | 10.00mm | 8.00mm | 30.00mm | 1.70mm | 1.50-1.60mm | £215.33 |
|
|
| NTCBS-M4-8-30-T1.7 | 5.00mm | 10.00mm | 8.00mm | 30.00mm | 1.70mm | 1.50-1.60mm | £215.33 |
|
|
| NTCBS-M4-8-30-T1.8 | 5.00mm | 10.00mm | 8.00mm | 30.00mm | 1.80mm | 1.60-1.70mm | £215.33 |
|
|
| NTCBS-M4-8-30-T2.2 | 5.00mm | 10.00mm | 8.00mm | 30.00mm | 2.20mm | 2.00-2.10mm | £215.33 |
|
|
| NTCBS-M4-8-35-T2.2 | 5.00mm | 10.00mm | 8.00mm | 35.00mm | 2.20mm | 2.00-2.10mm | £236.68 |
|
|
| NTCBS-M4-8-40-T1.7 | 5.00mm | 10.00mm | 8.00mm | 40.00mm | 1.70mm | 1.50-1.60mm | £236.68 |
|
|
| NTCBS-M4-8-45-T1.7 | 2.50mm | 10.00mm | 8.00mm | 45.00mm | 1.70mm | 1.50-1.60mm | £248.00 |
|
|
| NTCBS-M4-8-45-T2.2 | 2.50mm | 10.00mm | 8.00mm | 45.00mm | 2.20mm | 2.00-2.10mm | £248.00 |
|
|
| NTCBS-M4-8-50-T1.7 | 5.00mm | 10.00mm | 8.00mm | 50.00mm | 1.70mm | 1.50-1.60mm | £260.40 |
|
|
| NTCBS-M4-8-50C-T1.7 | 2.50mm | 10.00mm | 8.00mm | 50.00mm | 1.70mm | 1.50-1.60mm | £260.40 |
|
|
| NTCBS-M4-8-50-T2.2 | 2.50mm | 10.00mm | 8.00mm | 50.00mm | 2.20mm | 2.00-2.10mm | £260.40 |
|
|
| NTCBS-M4-8-60-T1.7 | 5.00mm | 10.00mm | 8.00mm | 60.00mm | 1.70mm | 1.50-1.60mm | £260.40 |
|
|
| NTCBS-M4-8-70-T1.7 | 12.60mm | 12.60mm | 8.00mm | 70.00mm | 1.70mm | 1.50-1.60mm | £273.43 |
|
