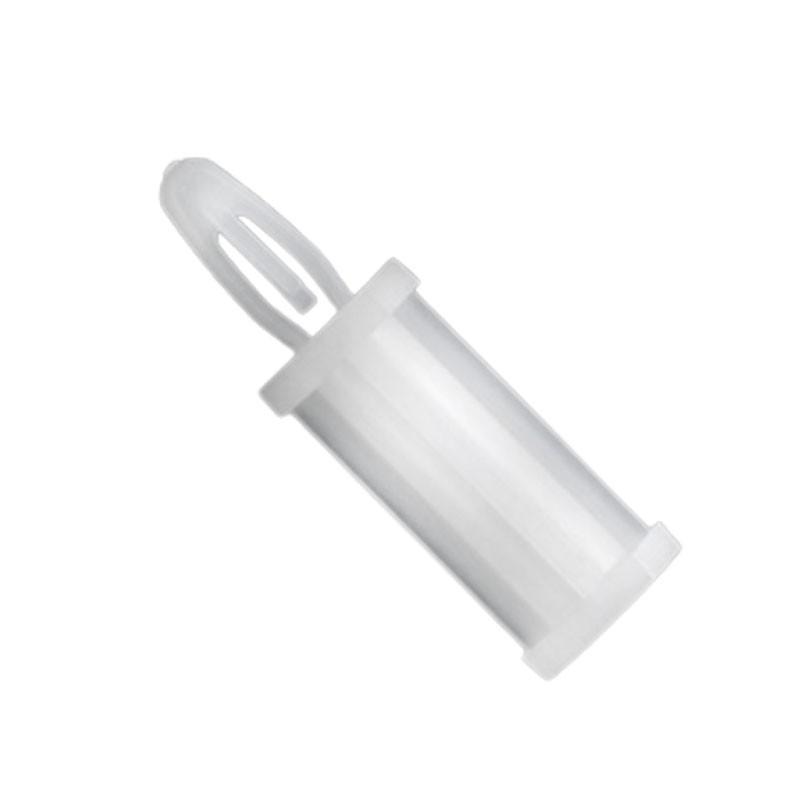

Locking Hole PCB Support
NHCBS
DESIGNED TO BE USED WITH A METAL #6-32 SELF TAPPING SCREW (NOT INTERNALLY THREADED) Screw to fasten, maintains accurate spacing between chassis and PCB
Hole: 4.0mm
Panel Thickness 1.57mm
Nylon 66 natural
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C
Flame retardant (V0) available to order – please phone
Removable
Secure grip to PCB
Supplied in packs of 1000
Downloads
Locking Hole PCB Support
Related Products
| Product Code | Panel Thick | Length | Screw # | Top Hole Dia | Price per pack | Quantity | |
|---|---|---|---|---|---|---|---|
| NHCBS-04-66 | 1.57mm | 6.4mm | 6 | 4.00mm | £58.93 |
|
|
| NHCBS-06-66 | 1.57mm | 9.5mm | 6 | 4.00mm | £60.62 |
|
|
| NHCBS-08-66 | 1.57mm | 12.7mm | 6 | 4.00mm | £64.41 |
|
|
| NHCBS-10-66 | 1.57mm | 15.9mm | 6 | 4.00mm | £65.79 |
|
|
| NHCBS-12-66 | 1.57mm | 19.1mm | 6 | 4.00mm | £66.86 |
|
|
| NHCBS-14-66 | 1.57mm | 22.2mm | 6 | 4.00mm | £68.28 |
|
|
| NHCBS-16-66 | 1.57mm | 25.4mm | 6 | 4.00mm | £69.13 |
|
|
| NHCBS-18-66 | 1.57mm | 28.6mm | 6 | 4.00mm | £70.96 |
|
|
| NHCBS-20-66 | 1.57mm | 31.7mm | 6 | 4.00mm | £71.19 |
|
|
| NHCBS-22.5-66 | 1.57mm | 35.7mm | 6 | 4.00mm | £71.36 |
|
