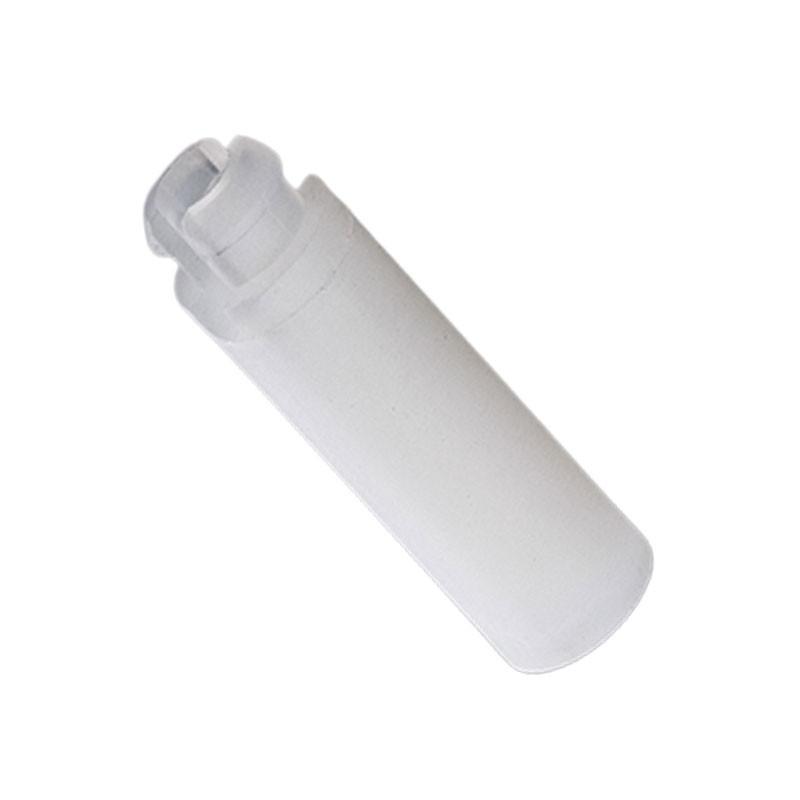

Nylon Special Self Retaining Spacer 8
NSSRS8
Special self retaining and aligning nylon 66 spacers 7.90mm wide, hole depth of 4.30mm for use with an #8/M4 screw. These are an alternative range to our NSRS self retaining spacers; please see associated products for this standard range of self-retaining spacers.
Nylon Special Self Retaining Spacer 8 Series
- Natural Nylon 66
- UL94-V2
- RoHS Compliant
- Operating Temperature -35°C to +85°C
- Hole Size - 5.94mm
- Panel Thickness - 1.57mm
- Screw #8/M4
Supplied units in packs of 1000
Special Self Retaining Spacer
| Product Code | OD | Panel Thick | Length | Screw | Price per pack | Quantity | |
|---|---|---|---|---|---|---|---|
| NSSRS8-4-66 | 7.90mm | 1.57mm | 6.40mm | #8/M4 | £74.48 |
|
|
| NSSRS8-5-66 | 7.90mm | 1.57mm | 7.90mm | #8/M4 | £80.43 |
|
|
| NSSRS8-6-66 | 7.90mm | 1.57mm | 9.50mm | #8/M4 | £80.43 |
|
|
| NSSRS8-7-66 | 7.90mm | 1.57mm | 11.10mm | #8/M4 | £80.43 |
|
|
| NSSRS8-8-66 | 7.90mm | 1.57mm | 12.70mm | #8/M4 | £86.85 |
|
|
| NSSRS8-10-66 | 7.90mm | 1.57mm | 15.90mm | #8/M4 | £86.85 |
|
|
| NSSRS8-12-66 | 7.90mm | 1.57mm | 19.10mm | #8/M4 | £86.85 |
|
|
| NSSRS8-14-66 | 7.90mm | 1.57mm | 22.20mm | #8/M4 | £94.35 |
|
|
| NSSRS8-16-66 | 7.90mm | 1.57mm | 25.40mm | #8/M4 | £94.35 |
|
