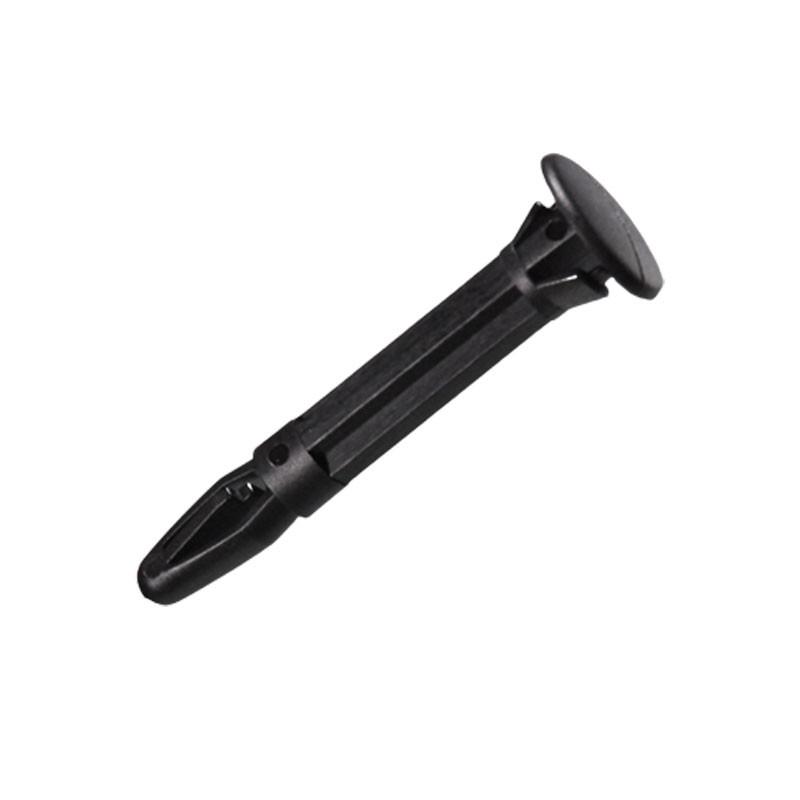

Reverse Locking Circuit Board Support - Bayonet
NCRLCBSR-L2
The reverse locking circuit board support bayonet, is suitable for a top hole size of 4.00mm and top panel thickness of 1.60mm; bottom hole size of 5.00mm and a bottom panel thickness of 1.00mm. This item is supplied in Nylon 66 UL94-V2 Black. This bayonet locking system securely holds the support post in the Printed Circuit Board (PCB).
Reverse Locking Circuit Board Support - Bayonet
- Black Nylon 66
- UL94-V2
- RoHS Compliant
- Operating Temperature -35°C to +85°C
- Top Hole size - 4.00mm
- Top Panel Thickness - 1.60mm
- Bottom Hole size - 5.00mm
- Bottom Panel Thickness - 1.00mm
- ONLY AVAILABLE IN BLACK NYLON 66
Supplied in packs of 1000
Downloads
Reverse Locking Support Bayonet
| Product Code | Length | Price per pack | Quantity | |
|---|---|---|---|---|
| NCRLCBSR-L2-10-66B | 10.00mm | £63.08 |
|
|
| NCRLCBSR-L2-11-66B | 11.00mm | £79.23 |
|
|
| NCRLCBSR-L2-12-66B | 12.00mm | £79.53 |
|
|
| NCRLCBSR-L2-13-66B | 13.00mm | £79.83 |
|
|
| NCRLCBSR-L2-14-66B | 14.00mm | £80.13 |
|
|
| NCRLCBSR-L2-15-66B | 15.00mm | £80.43 |
|
|
| NCRLCBSR-L2-16-66B | 16.00mm | £80.73 |
|
|
| NCRLCBSR-L2-17-66B | 17.00mm | £81.03 |
|
|
| NCRLCBSR-L2-18-66B | 18.00mm | £81.33 |
|
|
| NCRLCBSR-L2-19-66B | 19.00mm | £81.63 |
|
|
| NCRLCBSR-L2-20-66B | 20.00mm | £81.93 |
|
