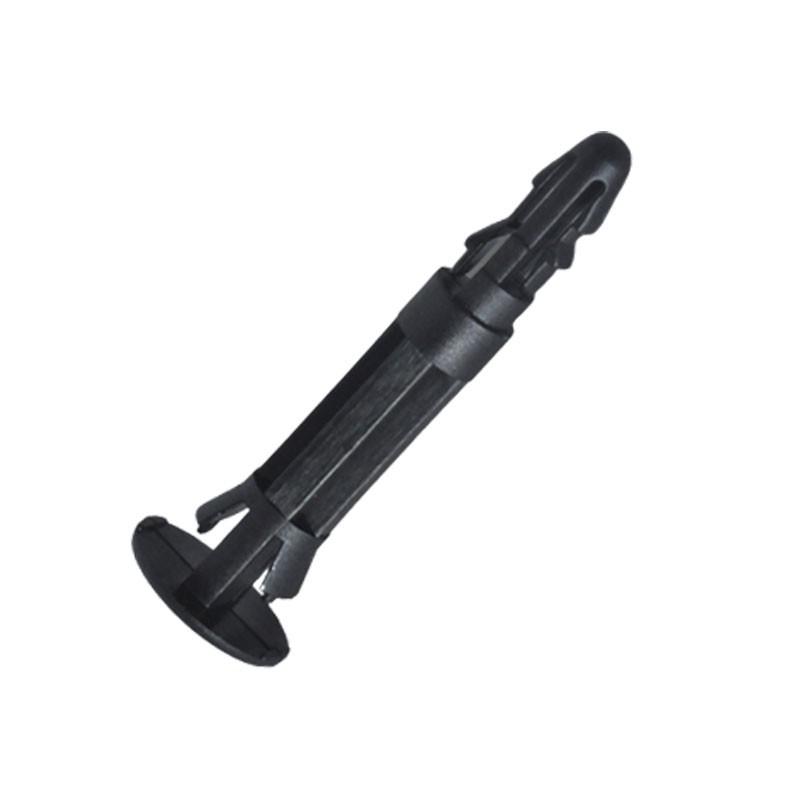

Reverse Circuit Board Locking Support - Arrowhead 2
NRLCBSL-2
This reverse circuit board locking support arrowhead 2 is ideally suited to a top panel thickness of 1.60mm, bottom panel thickness of 2.00mm and a bottom hole diameter of 5.00mm. This product is suitable for 3 different top hole diameters 3.00mm, 3.50mm and 4.00mm dependent on how deep it is inserted in to the hole, Length (A) refers to the item inserted fully into the hole (please see images to the left for details of the suitable top hole diameters). Supplied in Black Nylon 66 UL94-V2
Reverse Circuit Board Locking Support 15
- Black Nylon 66
- UL94-V2
- RoHS Compliant
- Operating Temperature -35°C to +85°C
- Top Hole size - 3.00mm, 3.50mm and 4.00mm
- Top Panel Thickness - 1.60mm
- Bottom Hole size - 5.00mm
- Bottom Panel Thickness - 2.00mm
- ONLY AVAILABLE IN BLACK NYLON 66
Supplied in packs of 1000
Downloads
Reverse PCB Arrowhead 2
| Product Code | Length (A) | Price per pack | Quantity | |
|---|---|---|---|---|
| NRLCBSL-2-6M-66B | 6.00mm | £72.56 |
|
|
| NRLCBSL-2-7M-66B | 7.00mm | £72.66 |
|
|
| NRLCBSL-2-8M-66B | 8.00mm | £72.76 |
|
|
| NRLCBSL-2-9M-66B | 9.00mm | £72.86 |
|
|
| NRLCBSL-2-10M-66B | 10.00mm | £72.96 |
|
|
| NRLCBSL-2-11M-66B | 11.00mm | £91.13 |
|
|
| NRLCBSL-2-12M-66B | 12.00mm | £91.23 |
|
|
| NRLCBSL-2-13M-66B | 13.00mm | £91.33 |
|
|
| NRLCBSL-2-14M-66B | 14.00mm | £91.43 |
|
|
| NRLCBSL-2-15M-66B | 15.00mm | £91.53 |
|
|
| NRLCBSL-2-16M-66B | 16.00mm | £91.63 |
|
|
| NRLCBSL-2-17M-66B | 17.00mm | £91.73 |
|
|
| NRLCBSL-2-18M-66B | 18.00mm | £91.83 |
|
|
| NRLCBSL-2-19M-66B | 19.00mm | £91.93 |
|
|
| NRLCBSL-2-20M-66B | 20.00mm | £92.03 |
|
