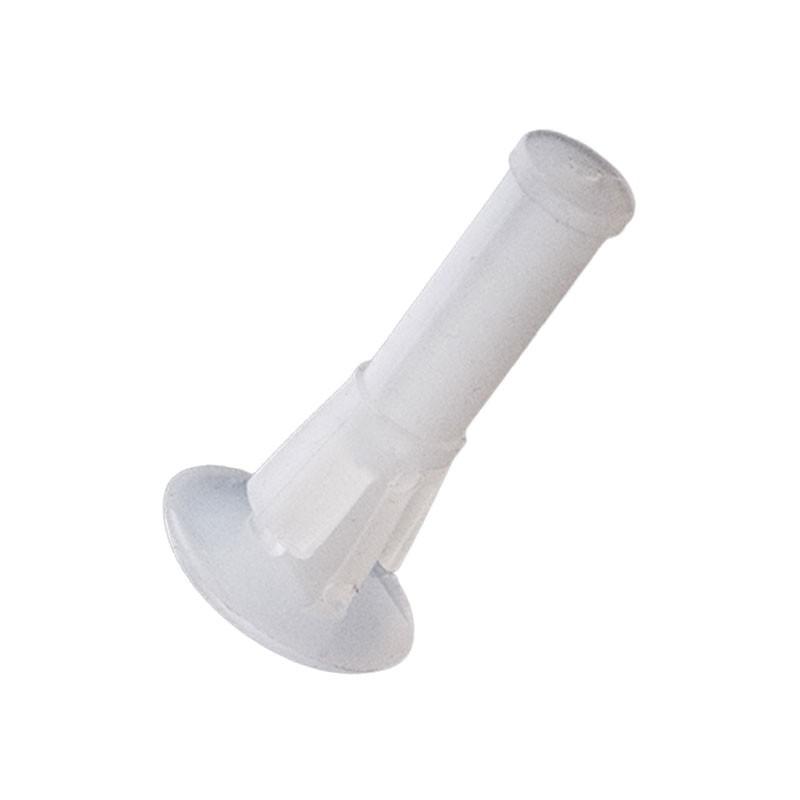

Reverse Circuit Board Locking Support 3
NLCBSC3
This reverse circuit board locking support 3 - round hole spacer is suitable for use with a bottom hole diameter of 4.75mm and a bottom panel thickness of 1.5-1.6mm. Designed to support heavy PCBs
Reverse Circuit Board Locking Support 3
- Natural Nylon 66
- UL94-V2
- RoHS Compliant
- Operating Temperature -35°C to +85°C
- Bottom Hole size - 4.75mm
- Bottom Panel Thickness - 1.5-1.6mm
- Flame Retardant (V0) available to order, please contact us
Reverse PCB Support 3
