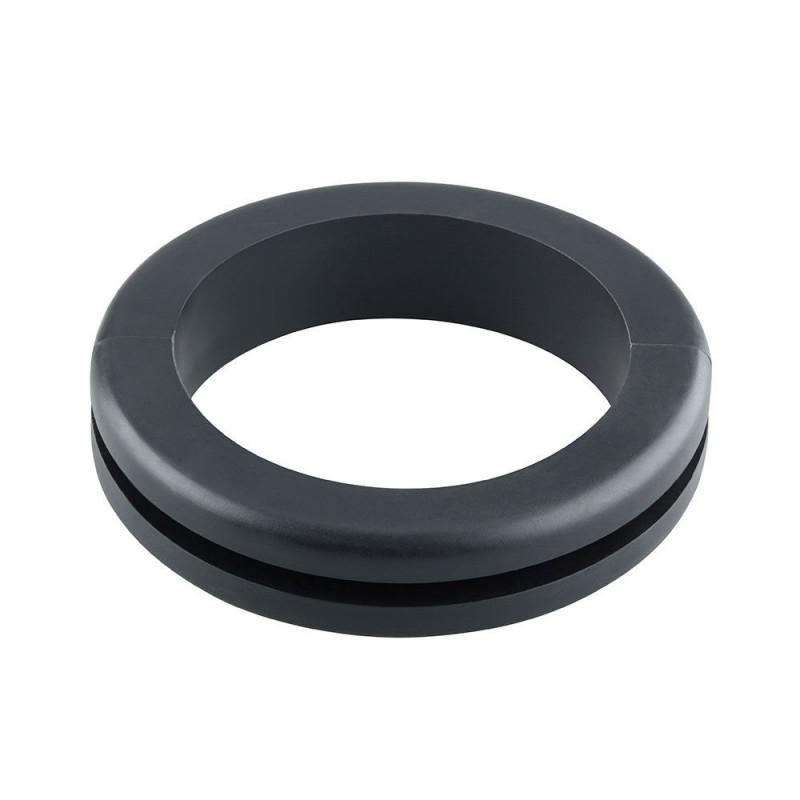

PVC Open Grommet 31.6-47.0

Name: Nylon Fasteners Ltd
Address: 14 Hazel Rd, Four Marks, Alton, Hampshire, GU34 5EY
Telephone: 01256 533088

Reference NPOG

Our range of PVC Open Grommets
Protects cables passing through holes in metal and plastic sheeting
Neat finish
Durable
Cost effective

Panel hole diameter - 31.6mm to 47.0mm

UL94-V0
Temperature range: -30oC to +70oC
Material - PVC
RoHS Compliant
Only available in BLACK

PLEASE SEE MATERIAL DATASHEET BELOW FOR INFORMATION ABOUT THE PLASTIC USED

Downloads

PVC Datasheet

Related Products

Rubber Blind Grommet

PVC Blind Grommet

41 products

Product Code	OD (E)	ID (C)	Height (D)	Panel Thick (B)	Panel Hole (A)	Enquire
NPOG31604105	36.0mm	25.0mm	9.2mm	4.1mm	31.6mm	Name * Email * Question *
NPOG31800825	44.0mm	25.4mm	6.3mm	0.8mm	31.8mm	Name * Email * Question *
NPOG31801225	37.0mm	23.4mm	7.8mm	1.2mm	31.8mm	Name * Email * Question *
NPOG31801622	38.1mm	25.4mm	8.0mm	1.6mm	31.8mm	Name * Email * Question *
NPOG31801625	38.1mm	23.8mm	7.9mm	1.6mm	38.1mm	Name * Email * Question *
NPOG31801805	36.5mm	25.3mm	9.0mm	1.8mm	31.7mm	Name * Email * Question *
NPOG31803204	39.7mm	23.8mm	9.5mm	3.2mm	31.8mm	Name * Email * Question *
NPOG31803205	39.7mm	25.4mm	11.1mm	3.2mm	31.8mm	Name * Email * Question *
NPOG31804505	36.7mm	25.3mm	9.1mm	4.2mm	31.8mm	Name * Email * Question *
NPOG31806005	38.0mm	25.4mm	15.0mm	6.0mm	31.8mm	Name * Email * Question *
NPOG31806325	41.1mm	22.2mm	15.8mm	6.2mm	31.8mm	Name * Email * Question *
NPOG32012005	42.0mm	25.0mm	22.0mm	12.0mm	32.0mm	Name * Email * Question *
NPOG33401625	40.8mm	30.2mm	6.4mm	1.6mm	33.4mm	Name * Email * Question *
NPOG34900855	42.5mm	27.0mm	10.1mm	0.8mm	34.9mm	Name * Email * Question *
NPOG34901605	44.4mm	25.4mm	11.1mm	1.6mm	34.9mm	Name * Email * Question *
NPOG34903215	39.3mm	28.6mm	6.3mm	3.2mm	34.9mm	Name * Email * Question *
NPOG34903225	39.0mm	28.6mm	9.3mm	3.2mm	34.9mm	Name * Email * Question *
NPOG34805025	44.4mm	25.4mm	14.3mm	5.0mm	34.8mm	Name * Email * Question *
NPOG34906425	39.4mm	28.6mm	12.6mm	6.4mm	34.9mm	Name * Email * Question *
NPOG38101210	45.2mm	31.8mm	9.2mm	1.2mm	38.1mm	Name * Email * Question *
NPOG38101825	45.0mm	31.8mm	9.7mm	1.8mm	38.1mm	Name * Email * Question *
NPOG38102445	45.2mm	31.8mm	10.1mm	2.4mm	38.1mm	Name * Email * Question *
NPOG38103205	45.2mm	31.8mm	11.4mm	3.2mm	38.1mm	Name * Email * Question *
NPOG38104505	43.2mm	31.8mm	9.6mm	4.0mm	38.0mm	Name * Email * Question *
NPOG39020008	50.0mm	33.0mm	26.0mm	20.0mm	39.0mm	Name * Email * Question *
NPOG39025508	50.0mm	33.0mm	26.0mm	25.5mm	39.0mm	Name * Email * Question *
NPOG40005505	48.0mm	33.5mm	13.5mm	5.5mm	40.0mm	Name * Email * Question *
NPOG40502450	46.5mm	35.7mm	5.6mm	2.4mm	40.5mm	Name * Email * Question *
NPOG41301610	47.4mm	38.1mm	6.4mm	1.6mm	41.3mm	Name * Email * Question *
NPOG41303215	47.3mm	34.9mm	12.7mm	3.2mm	41.3mm	Name * Email * Question *
NPOG41304018	47.6mm	34.8mm	10.0mm	4.0mm	41.3mm	Name * Email * Question *
NPOG43001650	54.0mm	31.8mm	8.0mm	1.6mm	43.0mm	Name * Email * Question *
NPOG44401205	50.6mm	38.1mm	7.5mm	1.2mm	44.4mm	Name * Email * Question *
NPOG44401605	50.0mm	40.0mm	8.1mm	1.6mm	44.4mm	Name * Email * Question *
NPOG44401820	53.9mm	38.1mm	11.0mm	1.8mm	44.4mm	Name * Email * Question *
NPOG44402440	53.8mm	38.1mm	12.0mm	2.4mm	44.4mm	Name * Email * Question *
NPOG44403205	54.0mm	38.1mm	12.7mm	3.2mm	44.4mm	Name * Email * Question *
NPOG44404050	53.6mm	38.1mm	13.7mm	4.0mm	44.4mm	Name * Email * Question *
NPOG44405205	54.0mm	38.1mm	14.7mm	5.2mm	44.4mm	Name * Email * Question *
NPOG44405265	53.5mm	38.1mm	15.0mm	5.2mm	44.4mm	Name * Email * Question *
NPOG47003005	58.0mm	35.0mm	11.0mm	3.0mm	47.0mm	Name * Email * Question *
