Nylon Mounting Buttons

NMOB

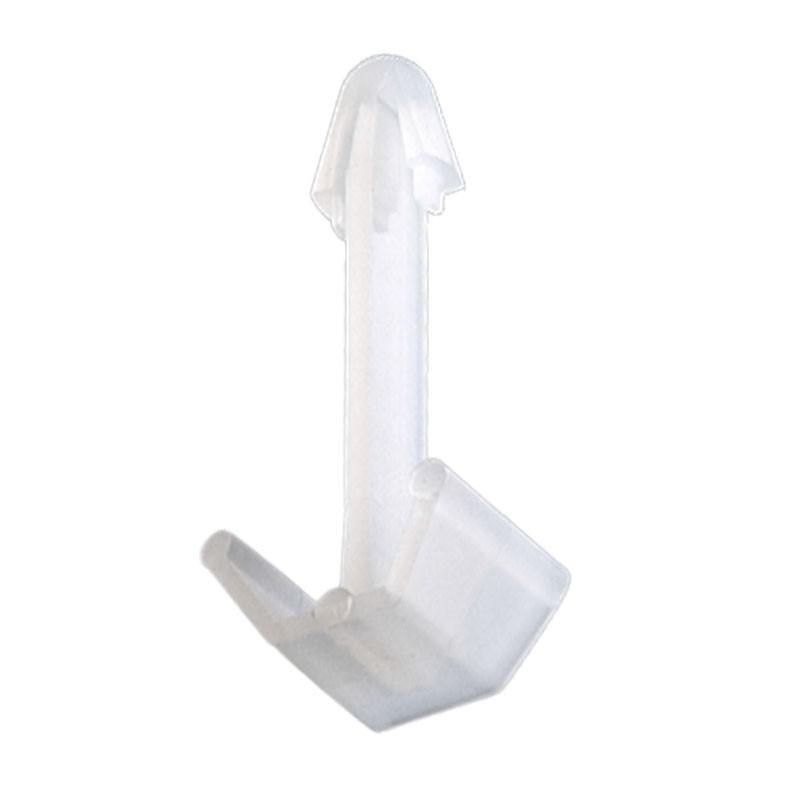

Our Nylon Mounting Buttons are a fantastic solution for when metal fasteners cannot be used; for example electrical and PCB applications. These plastic mounting buttons have an arrowhead that locks in place securely, and can be released from the underside of the board.

UL94-V2

Temperature Range: -30 to +85°C

Natural as standard, Black available to order.

Available in Flame Retardant (V0) to order.

RoHS Compliant. a rohs 30x26px.jpg

Supplied in packs of 1000 separate units.

18 products
Product Code Dim (A) Hole Size FIG Panel Thickness Price per pack Quantity
NMOB-1-156-66 0.80mm 4.00mm 1 0.80-2.40mm £51.72



NMOB-3-156-66 2.40mm 4.00mm 1 2.40-4.00mm £51.72



NMOB-5-156-66 4.80mm 4.00mm 1 4.80-5.60mm £57.59



NMOB-7-156-66 5.60mm 4.00mm 1 5.60-7.10mm £57.59



NMOB-9-156-66 7.90mm 4.00mm 1 7.90-9.50mm £58.14



NMOB-11-156-66 9.50mm 4.00mm 1 9.50-11.10mm £58.79



NMOB-13-156-66 11.10mm 4.00mm 1 11.10-12.70mm £58.79



NMOB-15-156-66 12.70mm 4.00mm 1 12.70-14.30mm £60.25



NMOB-17-156-66 14.30mm 4.00mm 1 14.30-15.90mm £61.78



NMOB-1-187-66 0.80mm 4.80mm 2 0.80-2.40mm £57.24



NMOB-3-187-66 2.40mm 4.80mm 2 2.40-4.00mm £57.24



NMOB-5-187-66 4.80mm 4.80mm 2 4.80-5.60mm £57.59



NMOB-7-187-66 5.60mm 4.80mm 2 5.60-7.10mm £57.59



NMOB-9-187-66 7.90mm 4.80mm 2 7.90-9.50mm £58.14



NMOB-11-187-66 9.50mm 4.80mm 2 9.50-11.10mm £58.79



NMOB-13-187-66 11.10mm 4.80mm 2 11.10-12.70mm £58.79



NMOB-15-187-66 12.70mm 4.80mm 2 12.70-14.30mm £60.25



NMOB-17-187-66 14.30mm 4.80mm 2 14.30-15.90mm £61.78
