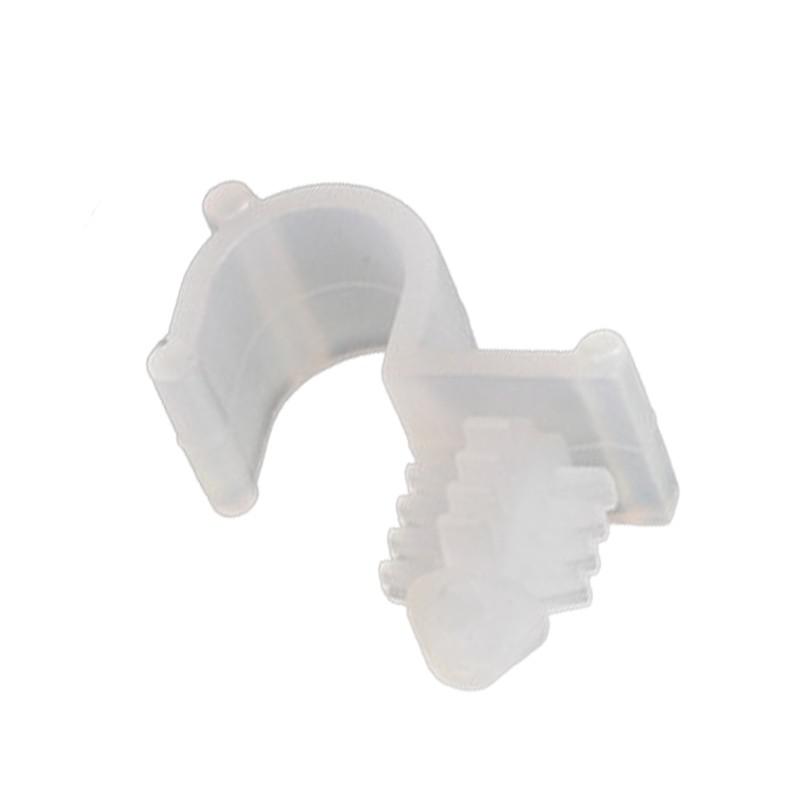

Nylon Half-U Routing Cable Clip Fir Tree

Reference NHURCBH

Our range of nylon half-u routing cable clips have an off-centre cable holder, these are ideally suited when the cable is to the side of the panel hole and is unable to be moved, the clip features a u shaped cable holder and fir tree fixing that pushes into a 6.35mm hole in the panel.

These clips have a compatible hole diameter of 6.35mm and a minimum panel thickness of 6.35mm - please refer to associated PDF for further details.

Natural Nylon 66
UL94-V2
RoHS Compliant
Operating Temperature -35°C to +85°C
Flame Retardant (V0) available to order, please contact us

Supplied in packs of 1000 units

Downloads

NHURCBH

3 products

Product Code

Hole Dia

Dim A

Dim B

Bundle Dia (C)

Dim D

Panel Thickness

Price per pack

Quantity

NHURCBH-2-66

6.35mm

5.10mm

12.40mm

3.20mm

4.30mm

6.35mm (min)

£72.22

NHURCBH-3-66

6.35mm

6.10mm

14.20mm

4.80mm

6.10mm

6.35mm (min)

£83.05

NHURCBH-4-66

6.35mm

6.90mm

15.70mm

6.40mm

7.60mm

6.35mm (min)

£83.05
