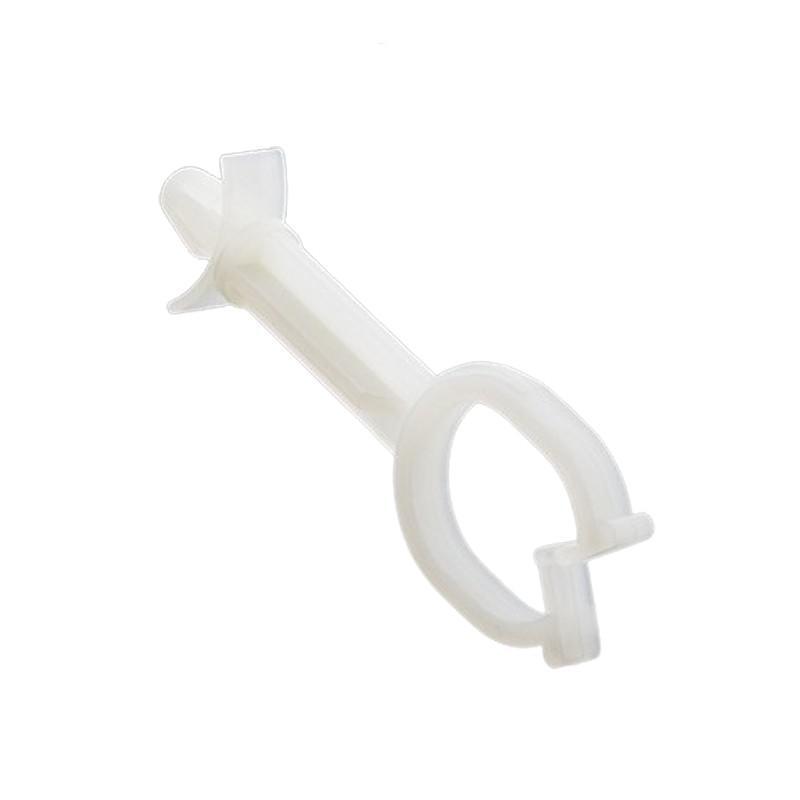

Nylon Standoff Wire Harness Clip

Reference NSHK

Our range of nylon standoff wire harness clips, are designed to keep cables away from the surface of the application preventing interference. The wire harness features a top opening mechanism that holds the cabling securely, whilst allowing easy removal if required.

Available in two versions:

Our NSHK range has a compatible hole diameter of 4.75mm and a panel thickness of 1.57mm - please refer to associated PDF for details

Our NSHK-J1 range has a hole diameter compatibility of 4.00mm and a panel thickness of 1.60mm - please refer to associated PDF for details

Natural Nylon 66
UL94-V2
RoHS Compliant
Operating Temperature -35°C to +85°C
Flame Retardant (V0) available to order, please contact us
NSHK Hole Size - 4.75mm; Panel Thickness - 1.57mm
NSHK-J1 Hole Size - 4.00mm; Panel Thickness - 1.60mm

Supplied in packs of 1000 units

Downloads

NSHK Wire Harness Clip

NSHK-J1 Wire Harness Clip

29 products

Product Code	Hole Dia	Standoff Length	Panel Thickness	Fig	Price per pack
NSHK-6M-66	4.75mm	6.00mm	1.57mm	1	£99.54
NSHK-8M-66	4.75mm	8.00mm	1.57mm	1	£99.54
NSHK-6-66	4.75mm	9.50mm	1.57mm	1	£102.51
NSHK-10M-66	4.75mm	10.00mm	1.57mm	1	£103.09
NSHK-12M-66	4.75mm	12.00mm	1.57mm	1	£103.09
NSHK-8-66	4.75mm	1.270mm	1.57mm	1	£105.57
NSHK-14M-66	4.75mm	14.00mm	1.57mm	1	£105.89
NSHK-16M-66	4.75mm	16.00mm	1.57mm	1	£105.89
NSHK-18M-66	4.75mm	18.00mm	1.57mm	1	£107.82
NSHK-12-66	4.75mm	19.10mm	1.57mm	1	£108.74
NSHK-20M-66	4.75mm	20.00mm	1.57mm	1	£107.82
NSHK-22M-66	4.75mm	22.00mm	1.57mm	1	£111.69
NSHK-24M-66	4.75mm	24.00mm	1.57mm	1	£111.69
NSHK-16-66	4.75mm	25.40mm	1.57mm	1	£114.86
NSHK-26M-66	4.75mm	26.00mm	1.57mm	1	£115.92
NSHK-28M-66	4.75mm	28.00mm	1.57mm	1	£115.92
NSHK-20-66	4.75mm	31.80mm	1.57mm	1	£118.29
NSHK-J1-6M-66	4.00mm	6.00mm	1.60mm	2	£99.54
NSHK-J1-8M-66	4.00mm	8.00mm	1.60mm	2	£99.54
NSHK-J1-10M-66	4.00mm	10.00mm	1.60mm	2	£103.09
NSHK-J1-12M-66	4.00mm	12.00mm	1.60mm	2	£103.09
NSHK-J1-14M-66	4.00mm	14.00mm	1.60mm	2	£105.89
NSHK-J1-16M-66	4.00mm	16.00mm	1.60mm	2	£105.89
NSHK-J1-18M-66	4.00mm	18.00mm	1.60mm	2	£107.82
NSHK-J1-20M-66	4.00mm	20.00mm	1.60mm	2	£107.82
NSHK-J1-22M-66	4.00mm	22.00mm	1.60mm	2	£111.69
NSHK-J1-24M-66	4.00mm	24.00mm	1.60mm	2	£111.69
NSHK-J1-26M-66	4.00mm	26.00mm	1.60mm	2	£115.92
NSHK-J1-28M-66	4.00mm	28.00mm	1.60mm	2	£115.92
