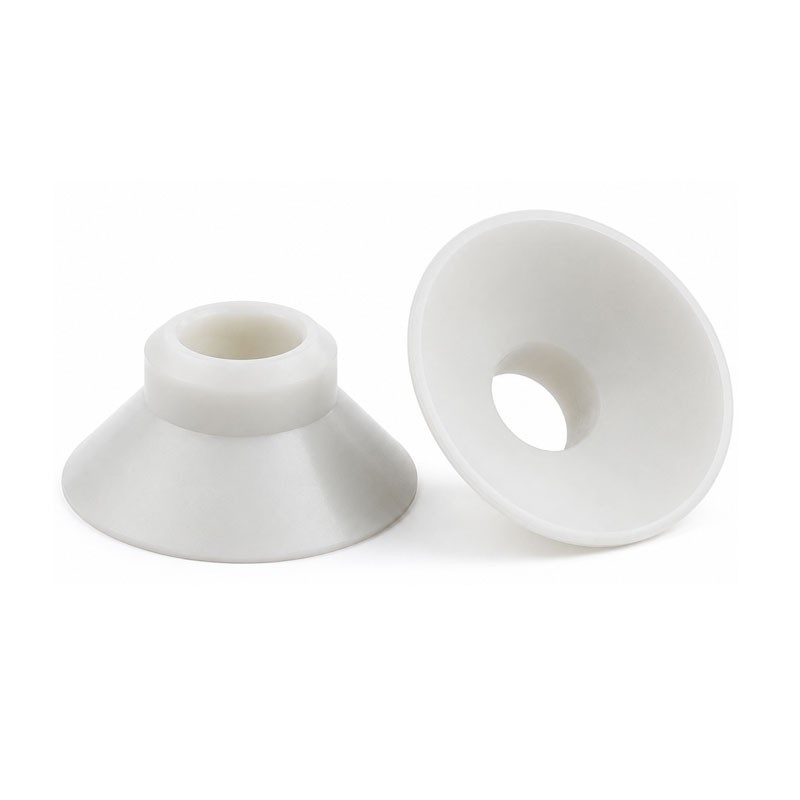

Nylon Countersunk Insulation Shoulder Washers

Reference CSKSHW

Nylon Countersunk Insulating Shoulder Washers, are designed to electrically isolate countersunk screws from the mounting surface whilst providing a neat, flush finish. Manufactured from Nylon 6 (PA6), these shoulder washers help prevent metal-to-metal contact, reduce vibration and wear, and provide excellent resistance to corrosion and many common chemicals. They are ideal for electrical, electronic and general engineering applications where insulation or component protection is required.

Material: Nylon 6 (PA6)
Colour: Natural
Flammability: UL94-V2
Operating Temperature: -35°C to +85°C
Countersunk Angle: 90°
Sizes: M3, M4, M5, M6, M8, M10, M12 and M16

Supplied in packs of 1000 units

8 products

Product Code	M Size	Dim (A)	Dim (B)	Dim (C)	Dim (D)	Dim (E)	Countersunk Angle	Price per pack
CSKSHW-M3	M3	3.10mm	4.90mm	8.20mm	3.70mm	1.70mm	90°	£95.85
CSKSHW-M4	M4	4.10mm	5.90mm	10.40mm	4.30mm	2.30mm	90°	£105.75
CSKSHW-M5	M5	5.10mm	6.90mm	12.40mm	4.80mm	2.80mm	90°	£108.00
CSKSHW-M6	M6	6.10mm	7.90mm	14.40mm	5.30mm	3.30mm	90°	£110.70
CSKSHW-M8	M8	8.10mm	9.90mm	18.60mm	6.40mm	4.40mm	90°	£117.22
CSKSHW-M10	M10	10.20mm	12.40mm	22.50mm	10.30mm	5.00mm	90°	£127.58
CSKSHW-M12	M12	12.10mm	13.90mm	26.80mm	8.50mm	6.50mm	90°	£141.75
CSKSHW-M16	M16	16.20mm	19.20mm	35.40mm	10.80mm	8.10mm	90°	£168.75

Nylon Countersunk Insulation Shoulder Washers

Supplied in packs of 1000 units
