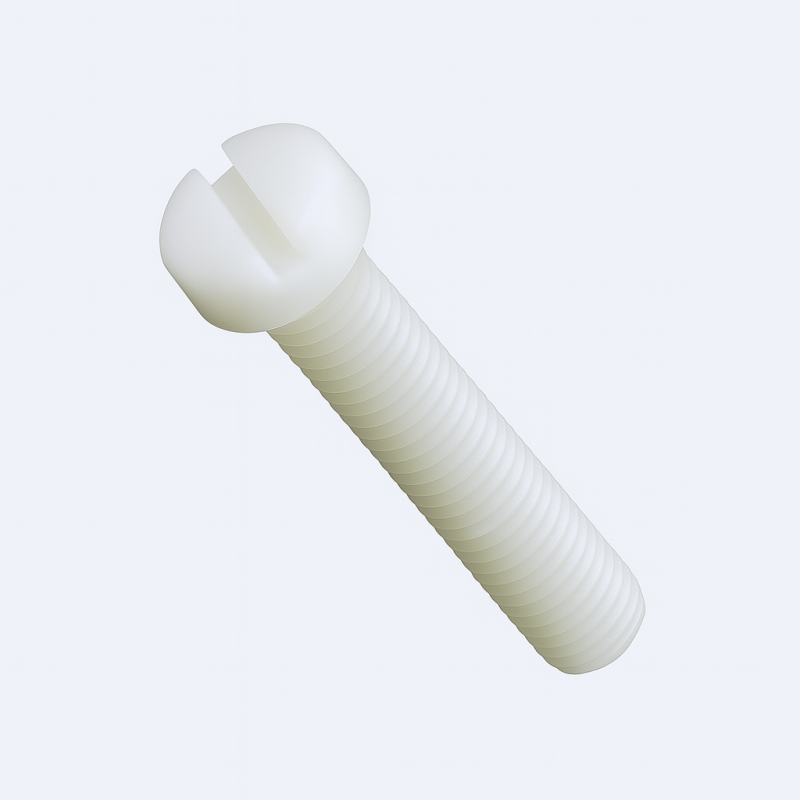

Slotted Cheese Head Machine Screw - Nylon Metric DIN 84

Reference CHS - DIN 84

Nyfast's moulded nylon PA66 DIN 84 (EN ISO 1207) metric slotted cheese head plastic machine screws are corrosion resistant and have a high strength to weight ratio. Non-magnetic with low thermal conductivity properties. These nylon screws are suitable for use with slot drive tools.

Threads: M2 - M10
Lengths: 4 - 70mm
Nylon 66 UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C

Sold in packs of 1000

Black available to order, please call

Related Products

Metric Non-Standard Washers

Metric Nylon Hex Nuts - DIN 934

81 products

Product Code	Desc	Thread	Head Dia	Head Height	Length	Price per pack
MS-M02-004-CHS004	M2 X 4	0.4mm	3.8mm	1.3mm	4mm	£44.84
MS-M02-004-CHS005	M2 X 5	0.4mm	3.8mm	1.3mm	5mm	£45.10
MS-M02-004-CHS006	M2 X 6	0.4mm	3.8mm	1.3mm	6mm	£45.16
MS-M02-004-CHS008	M2 X 8	0.4mm	3.8mm	1.3mm	8mm	£45.64
MS-M02-004-CHS010	M2 X 10	0.4mm	3.8mm	1.3mm	10mm	£45.67
MS-M02-004-CHS012	M2 X 12	0.4mm	3.8mm	1.3mm	12mm	£45.76
MS-M02-004-CHS016	M2 X 16	0.4mm	3.8mm	1.3mm	16mm	£48.28
MS-M02-004-CHS020	M2 X 20	0.4mm	3.8mm	1.3mm	20mm	£49.99
MS-M02-004-CHS025	M2 X 25	0.4mm	3.8mm	1.3mm	25mm	£50.60
MS-M025-0045-CHS004	M2.5 X 4	0.45mm	4.5mm	1.6mm	4mm	£44.70
MS-M025-0045-CHS005	M2.5 X 5	0.45mm	4.5mm	1.6mm	5mm	£45.03
MS-M025-0045-CHS006	M2.5 X 6	0.45mm	4.5mm	1.6mm	6mm	£46.23
MS-M025-0045-CHS008	M2.5 X 8	0.45mm	4.5mm	1.6mm	8mm	£46.64
MS-M025-0045-CHS010	M2.5 X 10	0.45mm	4.5mm	1.6mm	10mm	£47.24
MS-M025-0045-CHS012	M2.5 X 12	0.45mm	4.5mm	1.6mm	12mm	£47.68
MS-M025-0045-CHS016	M2.5 X 16	0.45mm	4.5mm	1.6mm	16mm	£50.43
MS-M025-0045-CHS020	M2.5 X 20	0.45mm	4.5mm	1.6mm	20mm	£50.98
MS-M025-0045-CHS025	M2.5 X 25	0.45mm	4.5mm	1.6mm	25mm	£51.31
MS-M03-005-CHS004	M3 X 4	0.5mm	5.5mm	2mm	4mm	£40.91
MS-M03-005-CHS005	M3 X 5	0.5mm	5.5mm	2mm	5mm	£40.93
MS-M03-005-CHS006	M3 X 6	0.5mm	5.5mm	2mm	6mm	£40.97
MS-M03-005-CHS008	M3 X 8	0.5mm	5.5mm	2mm	8mm	£41.02
MS-M03-005-CHS010	M3 X 10	0.5mm	5.5mm	2mm	10mm	£42.33
MS-M03-005-CHS012	M3 X 12	0.5mm	5.5mm	2mm	12mm	£42.70
MS-M03-005-CHS016	M3 X 16	0.5mm	5.5mm	2mm	16mm	£43.22
MS-M03-005-CHS020	M3 X 20	0.5mm	5.5mm	2mm	20mm	£44.94
MS-M03-005-CHS025	M3 X 25	0.5mm	5.5mm	2mm	25mm	£45.28
MS-M03-005-CHS030	M3 X 30	0.5mm	5.5mm	2mm	30mm	£46.66
MS-M03-005-CHS035	M3 X 35	0.5mm	5.5mm	2mm	35mm	£48.85
MS-M035-006-CHS025	M3.5 X 25	0.6mm	6mm	2.4mm	25mm	£42.47
MS-M04-007-CHS006	M4 X 6	0.7mm	7mm	2.6mm	6mm	£42.18
MS-M04-007-CHS008	M4 X 8	0.7mm	7mm	2.6mm	8mm	£42.35
MS-M04-007-CHS010	M4 X 10	0.7mm	7mm	2.6mm	10mm	£43.72
MS-M04-007-CHS012	M4 X 12	0.7mm	7mm	2.6mm	12mm	£43.72
MS-M04-007-CHS016	M4 X 16	0.7mm	7mm	2.6mm	16mm	£44.11
MS-M04-007-CHS020	M4 X 20	0.7mm	7mm	2.6mm	20mm	£50.78
MS-M04-007-CHS025	M4 X 25	0.7mm	7mm	2.6mm	25mm	£57.98
MS-M04-007-CHS030	M4 X 30	0.7mm	7mm	2.6mm	30mm	£59.48
MS-M04-007-CHS035	M4 X 35	0.7mm	7mm	2.6mm	35mm	£60.66
MS-M04-007-CHS040	M4 X 40	0.7mm	7mm	2.6mm	40mm	£61.25
MS-M05-008-CHS006	M5 X 6	0.8mm	8.5mm	3.3mm	6mm	£43.40
MS-M05-008-CHS008	M5 X 8	0.8mm	8.5mm	3.3mm	8mm	£43.70
MS-M05-008-CHS010	M5 X 10	0.8mm	8.5mm	3.3mm	10mm	£43.86
MS-M05-008-CHS012	M5 X 12	0.8mm	8.5mm	3.3mm	12mm	£44.09
MS-M05-008-CHS016	M5 X 16	0.8mm	8.5mm	3.3mm	16mm	£44.63
MS-M05-008-CHS020	M5 X 20	0.8mm	8.5mm	3.3mm	20mm	£44.54
MS-M05-008-CHS025	M5 X 25	0.8mm	8.5mm	3.3mm	25mm	£60.61
MS-M05-008-CHS030	M5 X 30	0.8mm	8.5mm	3.3mm	30mm	£61.21
MS-M05-008-CHS035	M5 X 35	0.8mm	8.5mm	3.3mm	35mm	£62.28
MS-M05-008-CHS040	M5 X 40	0.8mm	8.5mm	3.3mm	40mm	£62.93
MS-M06-010-CHS005	M6 X 5	1mm	10mm	3.9mm	5mm	£55.80
MS-M06-010-CHS008	M6 X 8	1mm	10mm	3.9mm	8mm	£56.21
MS-M06-010-CHS010	M6 X 10	1mm	10mm	3.9mm	10mm	£56.24
MS-M06-010-CHS012	M6 X 12	1mm	10mm	3.9mm	12mm	£56.41
MS-M06-010-CHS016	M6 X 16	1mm	10mm	3.9mm	16mm	£56.58
MS-M06-010-CHS020	M6 X 20	1mm	10mm	3.9mm	20mm	£56.74
MS-M06-010-CHS025	M6 X 25	1mm	10mm	3.9mm	25mm	£62.88
MS-M06-010-CHS030	M6 X 30	1mm	10mm	3.9mm	30mm	£68.91
MS-M06-010-CHS035	M6 X 35	1mm	10mm	3.9mm	35mm	£86.22
MS-M06-010-CHS040	M6 X 40	1mm	10mm	3.9mm	40mm	£95.02
MS-M06-010-CHS045	M6 X 45	1mm	10mm	3.9mm	45mm	£97.07
MS-M06-010-CHS050	M6 X 50	1mm	10mm	3.9mm	50mm	£112.24
MS-M06-010-CHS060	M6 X 60	1mm	10mm	3.9mm	60mm	£114.93
MS-M06-010-CHS065	M6 X 65	1mm	10mm	3.9mm	65mm	£115.36
MS-M06-010-CHS070	M6 X 70	1mm	10mm	3.9mm	70mm	£127.11
MS-M06-010-CHS075	M6 X 75	1mm	10mm	3.9mm	75mm	£129.28
MS-M08-0125-CHS010	M8 X 10	1.25mm	13mm	5mm	10mm	£112.87
MS-M08-0125-CHS016	M8 X 16	1.25mm	13mm	5mm	16mm	£114.20
MS-M08-0125-CHS020	M8 X 20	1.25mm	13mm	5mm	20mm	£114.71
MS-M08-0125-CHS025	M8 X 25	1.25mm	13mm	5mm	25mm	£121.30
MS-M08-0125-CHS030	M8 X 30	1.25mm	13mm	5mm	30mm	£123.22
MS-M08-0125-CHS035	M8 X 35	1.25mm	13mm	5mm	35mm	£155.15
MS-M08-0125-CHS050	M8 X 50	1.25mm	13mm	5mm	50mm	£243.70
MS-M08-0125-CHS070	M8 X 70	1.25mm	13mm	5mm	70mm	£238.80
MS-M10-0150-CHS016	M10 X 16	1.5mm	15.63mm	6mm	16mm	£236.53
MS-M10-0150-CHS020	M10 X 20	1.5mm	15.63mm	6mm	20mm	£246.09
MS-M10-0150-CHS025	M10 X 25	1.5mm	15.63mm	6mm	25mm	£259.81
MS-M10-0150-CHS030	M10 X 30	1.5mm	15.63mm	6mm	30mm	£268.45
MS-M10-0150-CHS035	M10 X 35	1.5mm	15.63mm	6mm	35mm	£276.54
MS-M10-0150-CHS050	M10 X 50	1.5mm	15.63mm	6mm	50mm	£290.26
MS-M10-0150-CHS060	M10 X 60	1.5mm	15.63mm	6mm	60mm	£304.75
