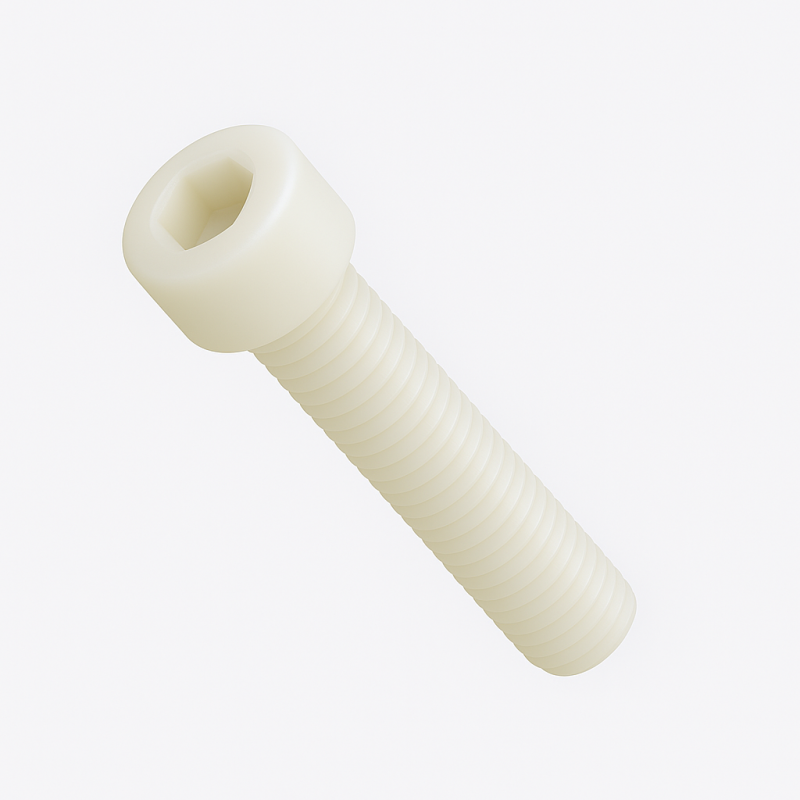

Socket Cap Screw - Nylon Metric DIN 912

Reference SCS - DIN 912

Nyfast's moulded nylon PA66 DIN 912 (EN ISO 4762) metric socket cap screws offer excellent strength-to-weight performance, ideal for applications where metal fasteners may corrode or conduct electricity. These plastic socket head cap screws are non-magnetic, lightweight and provide low thermal conductivity. The cylindrical head design with internal hex drive makes them suitable for applications requiring high torque and a clean finish. Nylon socket cap screws are suitable for use with allen key and socket tools.

Supplied in packs of 1000

Thread M3, M4, M5, M6, M8, M10 & M12
Lengths: 5-80mm
Nylon 66
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C
Black available to order, please call

Related Products

Slotted Pan Head Machine Screw - Nylon Metric DIN 85

Nylon Non-Standard Washers - Metric

Metric Nylon Hex Nuts - DIN 934

74 products

Product Code	Desc	Thread	Head Dia	Head Height	Socket Depth	Allen Key Size	Length	Price per pack
MS-M03-005-SCS004	M3 X 4	0.5mm	5.5mm	3mm	2.2mm	2.5mm	4mm	£33.90
MS-M03-005-SCS005	M3 X 5	0.5mm	5.5mm	3mm	2.2mm	2.5mm	5mm	£33.90
MS-M03-005-SCS006	M3 X 6	0.5mm	5.5mm	3mm	2.2mm	2.5mm	6mm	£33.90
MS-M03-005-SCS008	M3 X 8	0.5mm	5.5mm	3mm	2.2mm	2.5mm	8mm	£34.50
MS-M03-005-SCS010	M3 X 10	0.5mm	5.5mm	3mm	2.2mm	2.5mm	10mm	£35.10
MS-M03-005-SCS012	M3 X 12	0.5mm	5.5mm	3mm	2.2mm	2.5mm	12mm	£36.00
MS-M03-005-SCS016	M3 X 16	0.5mm	5.5mm	3mm	2.2mm	2.5mm	16mm	£37.20
MS-M03-005-SCS020	M3 X 20	0.5mm	5.5mm	3mm	2.2mm	2.5mm	20mm	£39.00
MS-M03-005-SCS025	M3 X 25	0.5mm	5.5mm	3mm	2.2mm	2.5mm	25mm	£42.00
MS-M03-005-SCS030	M3 X 30	0.5mm	5.5mm	3mm	2.2mm	2.5mm	30mm	£43.20
MS-M04-007-SCS004	M4 X 4	0.7mm	7mm	4mm	2.8mm	3mm	4mm	£33.90
MS-M04-007-SCS005	M4 X 5	0.7mm	7mm	4mm	2.8mm	3mm	5mm	£33.90
MS-M04-007-SCS006	M4 X 6	0.7mm	7mm	4mm	2.8mm	3mm	6mm	£33.90
MS-M04-007-SCS008	M4 X 8	0.7mm	7mm	4mm	2.8mm	3mm	8mm	£33.90
MS-M04-007-SCS010	M4 X 10	0.7mm	7mm	4mm	2.8mm	3mm	10mm	£34.50
MS-M04-007-SCS012	M4 X 12	0.7mm	7mm	4mm	2.8mm	3mm	12mm	£35.10
MS-M04-007-SCS016	M4 X 16	0.7mm	7mm	4mm	2.8mm	3mm	16mm	£36.00
MS-M04-007-SCS020	M4 X 20	0.7mm	7mm	4mm	2.8mm	3mm	20mm	£37.20
MS-M04-007-SCS025	M4 X 25	0.7mm	7mm	4mm	2.8mm	3mm	25mm	£39.00
MS-M04-007-SCS030	M4 X 30	0.7mm	7mm	4mm	2.8mm	3mm	30mm	£42.00
MS-M04-007-SCS040	M4 X 40	0.7mm	7mm	4mm	2.8mm	3mm	40mm	£81.90
MS-M05-008-SCS005	M5 X 5	0.8mm	8.5mm	5mm	3.4mm	4mm	5mm	£35.70
MS-M05-008-SCS006	M5 X 6	0.8mm	8.5mm	5mm	3.4mm	4mm	6mm	£35.70
MS-M05-008-SCS008	M5 X 8	0.8mm	8.5mm	5mm	3.4mm	4mm	8mm	£37.80
MS-M05-008-SCS010	M5 X 10	0.8mm	8.5mm	5mm	3.4mm	4mm	10mm	£37.80
MS-M05-008-SCS012	M5 X 12	0.8mm	8.5mm	5mm	3.4mm	4mm	12mm	£37.80
MS-M05-008-SCS016	M5 X 16	0.8mm	8.5mm	5mm	3.4mm	4mm	16mm	£39.00
MS-M05-008-SCS020	M5 X 20	0.8mm	8.5mm	5mm	3.4mm	4mm	20mm	£43.20
MS-M05-008-SCS025	M5 X 25	0.8mm	8.5mm	5mm	3.4mm	4mm	25mm	£48.30
MS-M05-008-SCS030	M5 X 30	0.8mm	8.5mm	5mm	3.4mm	4mm	30mm	£52.50
MS-M05-008-SCS040	M5 X 40	0.8mm	8.5mm	5mm	3.4mm	4mm	40mm	£58.80
MS-M05-008-SCS055	M5 X 55	0.8mm	8.5mm	5mm	3.4mm	4mm	55mm	£125.10
MS-M06-010-SCS005	M6 X 5	1mm	10mm	6mm	4.7mm	5mm	5mm	£37.20
MS-M06-010-SCS006	M6 X 6	1mm	10mm	6mm	4.7mm	5mm	6mm	£37.20
MS-M06-010-SCS008	M6 X 8	1mm	10mm	6mm	4.7mm	5mm	8mm	£37.20
MS-M06-010-SCS010	M6 X 10	1mm	10mm	6mm	4.7mm	5mm	10mm	£39.00
MS-M06-010-SCS012	M6 X 12	1mm	10mm	6mm	4.7mm	5mm	12mm	£39.00
MS-M06-010-SCS016	M6 X 16	1mm	10mm	6mm	4.7mm	5mm	16mm	£42.00
MS-M06-010-SCS020	M6 X 20	1mm	10mm	6mm	4.7mm	5mm	20mm	£45.00
MS-M06-010-SCS025	M6 X 25	1mm	10mm	6mm	4.7mm	5mm	25mm	£51.90
MS-M06-010-SCS030	M6 X 30	1mm	10mm	6mm	4.7mm	5mm	30mm	£63.00
MS-M06-010-SCS035	M6 X 35	1mm	10mm	6mm	4.7mm	5mm	35mm	£69.30
MS-M06-010-SCS040	M6 X 40	1mm	10mm	6mm	4.7mm	5mm	40mm	£78.30
MS-M06-010-SCS050	M6 X 50	1mm	10mm	6mm	4.7mm	5mm	50mm	£103.50
MS-M08-0125-SCS005	M8 X 5	1.25mm	13mm	8mm	6mm	6mm	5mm	£49.80
MS-M08-0125-SCS008	M8 X 8	1.25mm	13mm	8mm	6mm	6mm	8mm	£49.80
MS-M08-0125-SCS010	M8 X 10	1.25mm	13mm	8mm	6mm	6mm	10mm	£60.00
MS-M08-0125-SCS012	M8 X 12	1.25mm	13mm	8mm	6mm	6mm	12mm	£63.90
MS-M08-0125-SCS016	M8 X 16	1.25mm	13mm	8mm	6mm	6mm	16mm	£69.00
MS-M08-0125-SCS020	M8 X 20	1.25mm	13mm	8mm	6mm	6mm	20mm	£72.90
MS-M08-0125-SCS025	M8 X 25	1.25mm	13mm	8mm	6mm	6mm	25mm	£86.40
MS-M08-0125-SCS030	M8 X 30	1.25mm	13mm	8mm	6mm	6mm	30mm	£100.50
MS-M08-0125-SCS035	M8 X 35	1.25mm	13mm	8mm	6mm	6mm	35mm	£108.90
MS-M08-0125-SCS040	M8 X 40	1.25mm	13mm	8mm	6mm	6mm	40mm	£115.20
MS-M08-0125-SCS050	M8 X 50	1.25mm	13mm	8mm	6mm	6mm	50mm	£122.40
MS-M10-0150-SCS010	M10 X 10	1.5mm	16mm	10mm	7mm	8mm	10mm	£119.40
MS-M10-0150-SCS012	M10 X 12	1.5mm	16mm	10mm	7mm	8mm	12mm	£120.00
MS-M10-0150-SCS014	M10 X 14	1.5mm	16mm	10mm	7mm	8mm	14mm	£123.00
MS-M10-0150-SCS016	M10 X 16	1.5mm	16mm	10mm	7mm	8mm	16mm	£126.00
MS-M10-0150-SCS020	M10 X 20	1.5mm	16mm	10mm	7mm	8mm	20mm	£132.00
MS-M10-0150-SCS025	M10 X 25	1.5mm	16mm	10mm	7mm	8mm	25mm	£138.00
MS-M10-0150-SCS030	M10 X 30	1.5mm	16mm	10mm	7mm	8mm	30mm	£147.00
MS-M10-0150-SCS035	M10 X 35	1.5mm	16mm	10mm	7mm	8mm	35mm	£153.00
MS-M10-0150-SCS040	M10 X 40	1.5mm	16mm	10mm	7mm	8mm	40mm	£156.00
MS-M10-0150-SCS050	M10 X 50	1.5mm	16mm	10mm	7mm	8mm	50mm	£168.00
MS-M12-0175-SCS020	M12 X 20	1.75mm	18mm	12mm	9.7mm	10mm	20mm	£181.50
MS-M12-0175-SCS025	M12 X 25	1.75mm	18mm	12mm	9.7mm	10mm	25mm	£207.90
MS-M12-0175-SCS030	M12 X 30	1.75mm	18mm	12mm	9.7mm	10mm	30mm	£227.70
MS-M12-0175-SCS035	M12 X 35	1.75mm	18mm	12mm	9.7mm	10mm	35mm	£257.40
MS-M12-0175-SCS040	M12 X 40	1.75mm	18mm	12mm	9.7mm	10mm	40mm	£305.40
MS-M12-0175-SCS050	M12 X 50	1.75mm	18mm	12mm	9.7mm	10mm	50mm	£363.00
MS-M12-0175-SCS060	M12 X 60	1.75mm	18mm	12mm	9.7mm	10mm	60mm	£412.50
MS-M12-0175-SCS070	M12 X 70	1.75mm	18mm	12mm	9.7mm	10mm	70mm	£462.00
MS-M12-0175-SCS080	M12 X 80	1.75mm	18mm	12mm	9.7mm	10mm	80mm	£511.50
