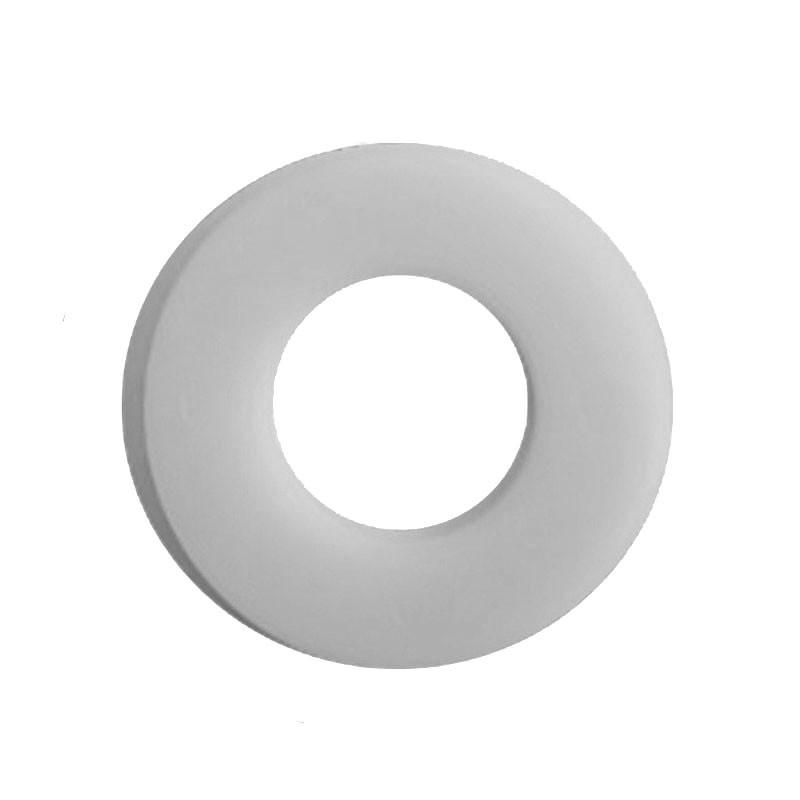

Nylon Metric Special Flat Washers (ID - 8.0mm to 8.8mm)
BMSFW
Nyfast's nylon metric special flat washers with an ID of 8.00mm to 8.80mm have non-standard dimensions and are useful for applications that require bespoke sized washers.
- Nylon 6/66
- RoHS Compliant
- Operating Temperature -35 to +85°C
Usually supplied in packs of 1000 (SOME SIZES MAY HAVE A LARGER PACK SIZE)
| Product Code | OD | ID | Thick | Comment | Enquire |
|---|---|---|---|---|---|
| BMSFW-1000-800-050 | 10.00mm | 8.00mm | 0.50mm | Natural Nylon |
|
| BMSFW-1000-800-100 | 10.00mm | 8.00mm | 1.00mm | Natural Nylon |
|
| BMSFW-1200-800-050 | 12.00mm | 8.00mm | 0.50mm | Natural Nylon |
|
| BMSFW-1200-800-100 | 12.00mm | 8.00mm | 1.00mm | Natural Nylon |
|
| BMSFW-1200-800-150 | 12.00mm | 8.00mm | 1.50mm | Natural Nylon |
|
| BMSFW-1400-800-050 | 14.00mm | 8.00mm | 0.50mm | Natural Nylon |
|
| BMSFW-1400-800-100 | 14.00mm | 8.00mm | 1.00mm | Natural Nylon |
|
| BMSFW-2000-800-100 | 20.00mm | 8.00mm | 1.00mm | Natural Nylon |
|
| BMSFW-2500-800-050-W | 25.00mm | 8.00mm | 0.50mm | White PTFE |
|
| BMSFW-3000-800-050 | 30.00mm | 8.00mm | 0.50mm | Natural Nylon |
|
| BMSFW-3000-840-100 | 30.00mm | 8.40mm | 1.00mm | Natural Nylon |
|
| BMSFW-1600-820-100 | 16.00mm | 8.20mm | 1.00mm | Natural Nylon |
|
| BMSFW-1700-820-100 | 17.00mm | 8.20mm | 1.00mm | Natural Nylon |
|
| BMSFW-1400-840-080 | 14.00mm | 8.40mm | 0.80mm | Natural Nylon |
|
| BMSFW-1400-840-150 | 14.00mm | 8.40mm | 1.50mm | Natural Nylon |
|
| BMSFW-1500-840-100 | 15.00mm | 8.40mm | 1.00mm | Natural Nylon |
|
| BMSFW-1700-840-100 | 17.00mm | 8.40mm | 1.00mm | Natural Nylon |
|
| BMSFW-2500-840-150 | 25.00mm | 8.40mm | 1.50mm | Natural Nylon |
|
| BMSFW-1500-850-050 | 15.00mm | 8.50mm | 0.50mm | Natural Nylon |
|
| BMSFW-1850-880-100-W | 18.50mm | 8.80mm | 1.00mm | White PTFE |
|
