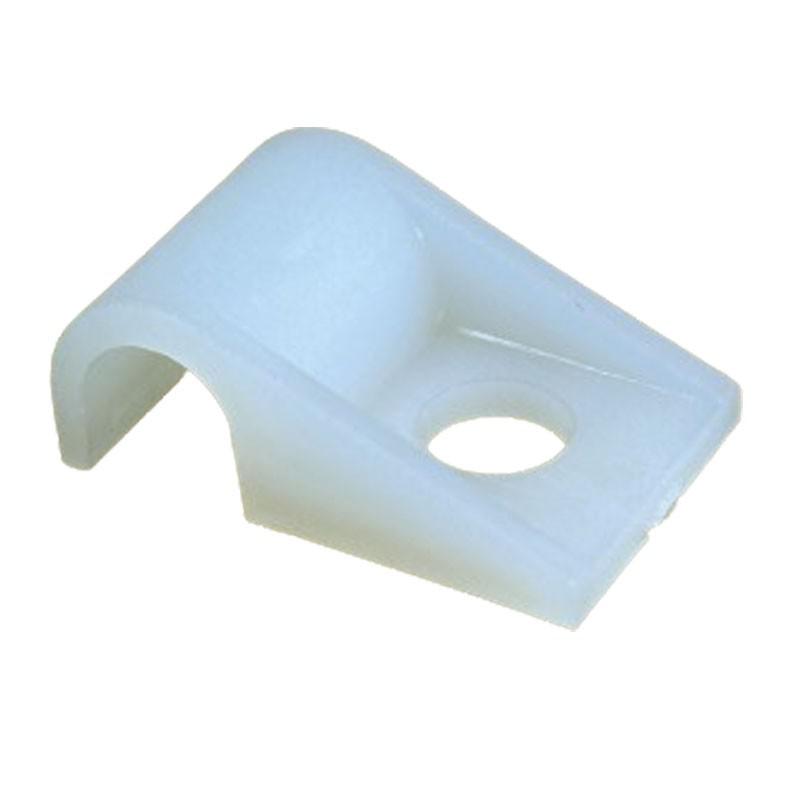

Nylon Half P Clip
UC-HPC
Our nylon half p clips are suitable for securing wires and cables with a single screw, which is suitable for a 5.16mm hole (eg. #11 metal screw).
These p clips can easily be mounted on walls, ceilings and other surfaces. They are suitable for cable bundle diameters of 5.94mm and 9.12mm, they help to reduce the risk of bending or crushing of wires and cables.
The cable clips feature a u-shaped design that hold the cable in place but also allow for easy removal as necessary. The versatility of these clips enure their use in many applications, including but not limited to automotive, home, office and general industrial.
As these cable clips are a nylon product, they can be used in areas where the prevention of conductivity is key.
- Nylon 66 UL94-V2
- Natural or Black
- Temperature range: -35°C to +85°C
- RoHS Compliant
SUPPLIED IN PACKS OF 1000 UNITS
Product Code | Colour | Dim (A) | Dim (B) | Dim (C) | Dim (D) | Dim (E) | Dim (F) | Price per pack | Quantity | |
---|---|---|---|---|---|---|---|---|---|---|
UC-HPC-2340 | Natural | 5.94mm | 20.14mm | 9.30mm | 5.94mm | 5.16mm | 12.70mm | £69.85 |
|
|
UC-HPC-2340 | Black | 5.94mm | 20.14mm | 9.30mm | 5.94mm | 5.16mm | 12.70mm | £69.85 |
|
|
UC-HPC-3590 | Natural | 9.12mm | 23.11mm | 10.92mm | 9.12mm | 5.16mm | 12.70mm | £83.44 |
|
|
UC-HPC-3590 | Black | 9.12mm | 23.11mm | 10.92mm | 9.12mm | 5.16mm | 12.70mm | £83.44 |
|
