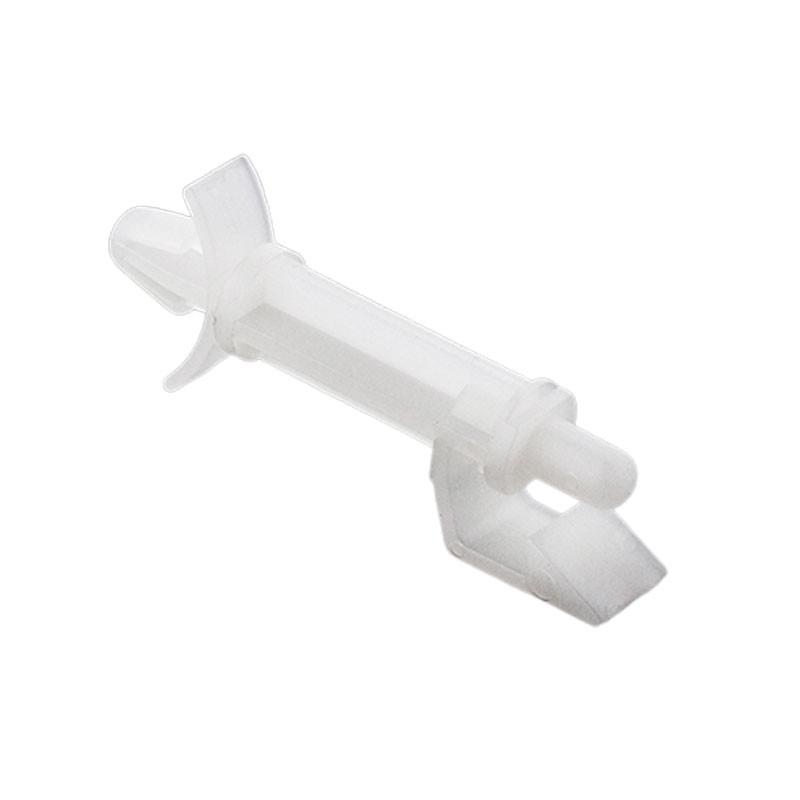

Edge Holding Locking Circuit Board Support
NEHCBS
- Top Hole: 4.00mm
- Top Panel Thickness: 1.57mm
- Bottom Hole: 4.75mm
- Bottom Panel Thickness: 0.79 - 1.98mm
Edge Holding Locking Circuit Board Support including Series 6 & 7
Nylon 66 natural
UL94-V2
RoHS Compliant
Flame retardant (V0) available to order – please phone.
Supplied in packs of 1000
Downloads
Edge Holding Support
| Product Code | Dim (B) | Fig | Length | Price per pack | Quantity | |
|---|---|---|---|---|---|---|
| NEHCBS-6-5-66 | 6.10mm | 1 | 7.90mm | £92.90 |
|
|
| NEHCBS-6-6-66 | 6.10mm | 1 | 9.50mm | £92.90 |
|
|
| NEHCBS-6-8-66 | 6.10mm | 1 | 12.70mm | £92.90 |
|
|
| NEHCBS-6-14-66 | 6.10mm | 1 | 22.20mm | £92.90 |
|
|
| NEHCBS-7-5-66 | 7.50mm | 1 | 7.90mm | £92.90 |
|
|
| NEHCBS-7-6-66 | 7.50mm | 1 | 9.50mm | £92.90 |
|
|
| NEHCBS-7-8-66 | 7.50mm | 1 | 12.70mm | £92.90 |
|
|
| NEHCBS-7-14-66 | 7.50mm | 1 | 22.20mm | £92.90 |
|
|
| NEHCBS-4-66 | 7.50mm | 3 | 6.40mm | £92.90 |
|
|
| NEHCBS-5-66 | 7.50mm | 3 | 7.90mm | £92.90 |
|
|
| NEHCBS-6-66 | 7.50mm | 3 | 9.50mm | £92.90 |
|
|
| NEHCBS-8-66 | 7.50mm | 3 | 12.70mm | £92.90 |
|
|
| NEHCBS-10-66 | 7.50mm | 3 | 15.90mm | £92.90 |
|
|
| NEHCBS-12-66 | 7.50mm | 3 | 19.10mm | £92.90 |
|
|
| NEHCBS-14-66 | 7.50mm | 3 | 22.20mm | £92.90 |
|
|
| NEHCBS-16-66 | 7.50mm | 3 | 25.40mm | £92.90 |
|
