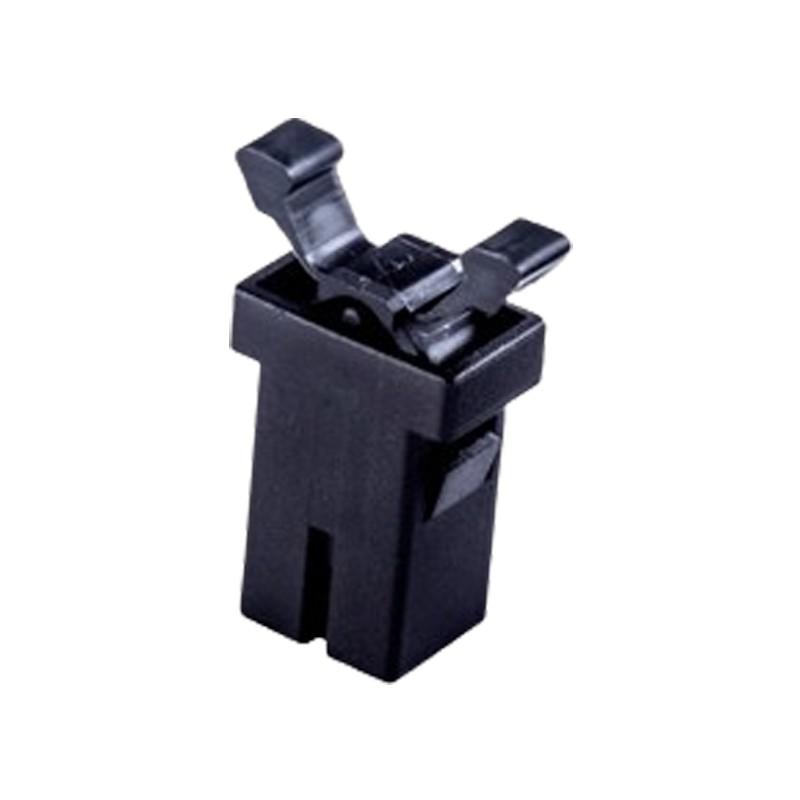

Door Latch Series 1
NDL-1
Our range of door latch series 1, ideally suited for use with cabinet doors, featuring a spring loaded mechanism that securely holds the door shut. Made from Polyoxymethylene (POM) for the latch case, Nylon 66 for the catcher, Polycarbonate & Glass-filled for the arms and the spring is manufactured from Grade 304 Stainless Steel. Suitable for use with a hole width of 8.00mm x 7.00mm. Panel Thickness - 2.00mm
Please see PDF for more details
- RoHS Compliant
- Continuous Operating Temperature -10°C to +70°C
- Storage Temperature - -40°C to +80°C
- Grey available to order, please contact us for details.
NDL-1
