Nylon Coved Spacers

Reference CS

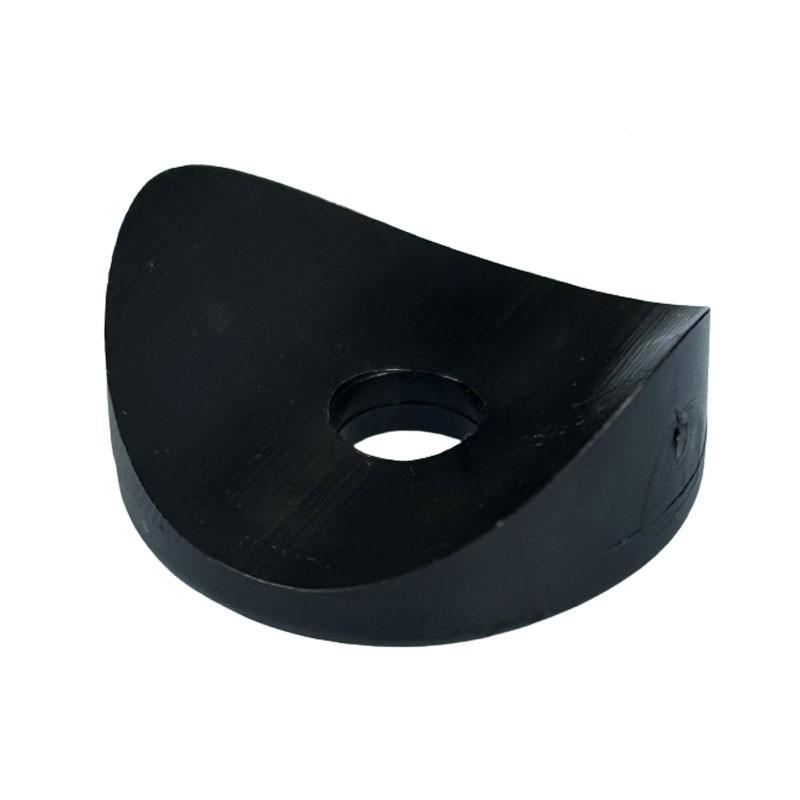

Nyfast's plastic coved spacers, aiding connectivity between curved parts and flat surfaces, such as tubes. These spacers are available in Black colour as standard, some sizes are available in Black nylon 66 and some are available in Black nylon 66 with glass fill (parts with -GF indicate this). The Black nylon 66 offers durability and resilience, capable of withstanding rigorous demands. Meanwhile, the Black nylon 66 with glass fill variant provides enhanced strength and rigidity for application requiring heightened performance. Also available in Natural, please enquire.

Nylon 66
UL94-V2
RoHS Compliant
Operating Temperature -35 to +85°C
Black Nylon as standard, Natural also available, please enquire.

Supplied in packs of 1000

12 products

Product Code	OD	ID	Radius	Base Thick	Total Height	Price per pack
CS-8660-B	31.75mm	8.38mm	17.53mm	3.81mm	13.72mm	£135.44
CS-1411-B	25.40mm	6.35mm	13.41mm	3.18mm	11.30mm	£152.56
CS-9592-B-GF	19.05mm	6.35mm	9.65mm	3.05mm	9.53mm	£522.40
CS-4692-B-GF	25.40mm	6.40mm	14.43mm	3.05mm	9.53mm	£530.11
CS-8692-B-GF	22.23mm	6.35mm	11.25mm	3.05mm	9.53mm	£544.95
CS-1992-B-GF	25.40mm	6.35mm	12.95mm	2.92mm	9.53mm	£569.38
CS-3163-B	32.00mm	10.39mm	16.36mm	3.40mm	11.99mm	£386.35
CS-1963-B	18.75mm	6.60mm	9.65mm	3.18mm	9.53mm	£176.45
CS-7393-B	19.05mm	8.07mm	12.70mm	1.78mm	5.72mm	£177.11
CS-9793-B	22.23mm	9.53mm	14.30mm	6.35mm	11.78mm	£247.44
CS-4114-B-GF	25.40mm	7.92mm	14.43mm	3.05mm	9.53mm	£593.80
CS-3124-B	19.05mm	5.21mm	19.05mm	2.67mm	8.71mm	£185.00
