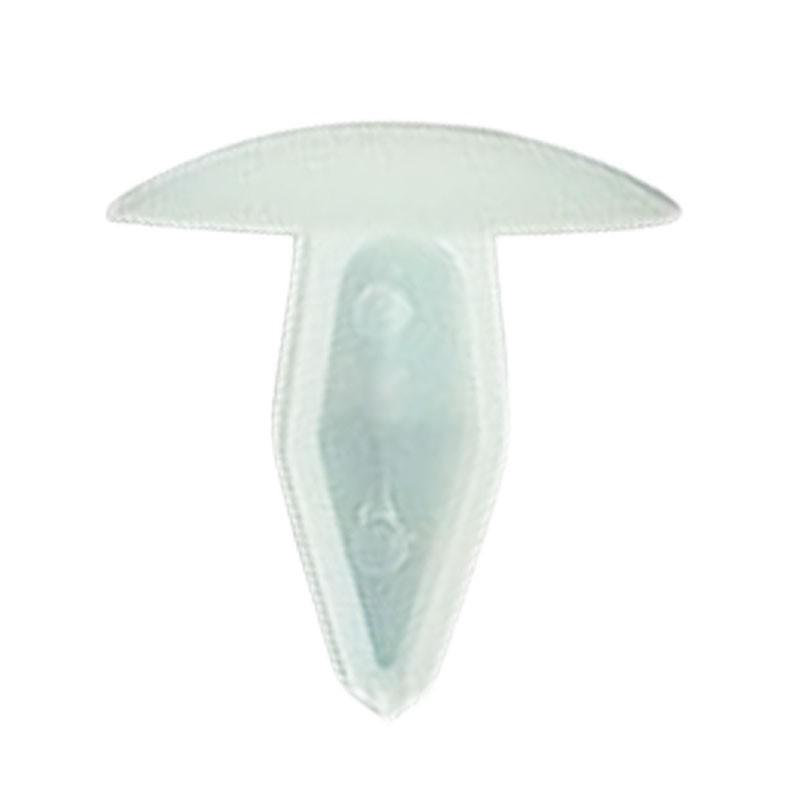

Mini Mounting Button
NMMB
Our Mini Mounting Buttons are great for mounting on front panel. Also suitable for thin gauge material and mounting lightweight components. Easy to use, just pop in hole and push for a clean and neat finish.
UL94-V2
Temperature Range: -30 to +85°C
Natural as standard, Black available to order.
Available in Flame Retardant (V0) to order.
RoHS Compliant.
Supplied in packs of 1000 separate units.
| Product Code | Hole Dia | Dim (A) | Dim (B) | Dim (C) | Dim (D) | Panel Thickness | Fig | Material | Price per pack | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NMMB-125-06N | 3.10-3.22mm | 7.10mm | 1.15mm | 2.20mm | 8.40mm | 2.00-2.50mm | 1 | Nylon 6 | £59.96 |
|
|
| NMMB-136-06N | 3.32-3.58mm | 10.30mm | 1.70mm | 3.20mm | 11.10mm | 2.90-4.00mm | 1 | Nylon 6 | £69.64 |
|
|
| NMMB-138-66N | 3.42-3.58mm | 7.60mm | 1.10mm | 3.30mm | 13.00mm | 2.40-5.80mm | 1 | Nylon 66 | £69.64 |
|
|
| NMMB-187-06N | 4.61-4.88mm | 12.70mm | 2.20mm | 4.00mm | 10.90mm | 2.50-4.00mm | 1 | Nylon 6 | £57.75 |
|
|
| NMMB-250-06N | 6.40-6.45mm | 12.70mm | 2.20mm | 5.70mm | 16.30mm | 3.50-3.80mm | 2 | Nylon 6 | £73.01 |
|
