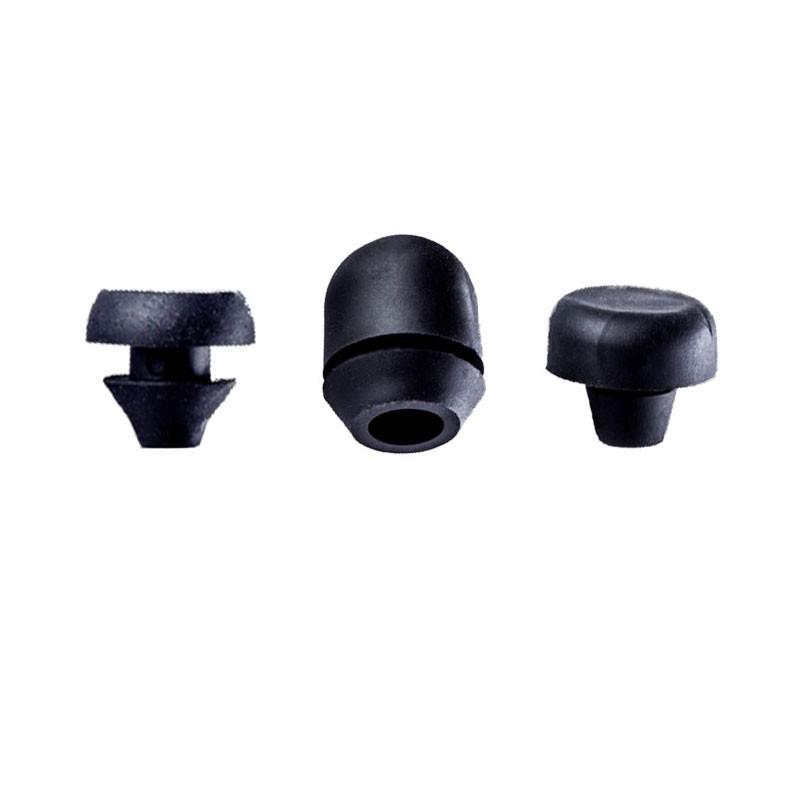

Push in Feet
NPOF
Our Nyfast Push in Feet are ideal for protecting floors and tube ends. These grommet feet (as they are also known) are extremely easy to use, just push the tool into the required appliance. Negate scratching of surfaces, increase grip and shock absorption are just some of the key benefits to using our product.
TPV
UL94HB
- Temperature Range: -30 to +120°C
- Black
- Good Ageing Resistance
- Good Weathering Resistance
- RoHS Compliant
Supplied in packs of 1000
Downloads
PUSH ON FEET
| Product Code | Hole | DIM(A) | DIM(B) | DIM(C) | DIM(D) | DIM(E) | DIM(F) | FIG | Panel Thickness | Price per pack | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPOF-40022 | 3.7-3.8mm | 7.9mm | 3.2mm | 4.4mm | 3.3mm | 1.5mm | 4.1mm | 1 | 3.2mm | £114.25 |
|
|
| NPOF-40048 | 4.5-4.6mm | 7.9mm | 3.7mm | 6.1mm | 1.6mm | 2.3mm | 3.0mm | 1 | 1.5mm | £111.84 |
|
|
| NPOF-40059 | 9.5-9.6mm | 12.7mm | 9.5mm | 12.7mm | 1.6mm | 12.2mm | 3.6mm | 2 | 1.5mm | £149.21 |
|
|
| NPOF-50185 | 6.0-6.1mm | 13.4mm | 6.0mm | 7.3mm | 2.0mm | 4.6mm | 8.6mm | 3 | 1.9mm | £183.90 |
|
|
| NPOF-12664 | 7.0-7.1mm | 15.7mm | 7.0mm | 8.6mm | 1.3mm | 5.1mm | 4.1mm | 3 | 1.2mm | £162.55 |
|
