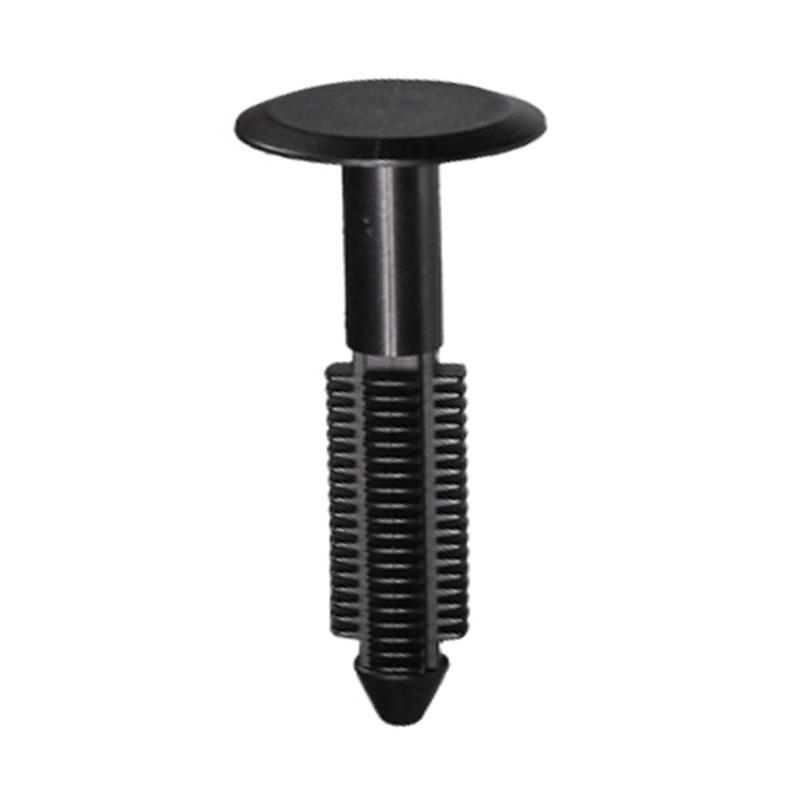

Fir Tree Clips - BHF

Reference FTC-BHF

Our range of FTC-BHF fir tree clips are available with a hole diameter of 7.14mm and total length under the head from 18.70mm-50.80mm. They feature a barb free section under the head, which varies from 1.50mm up to 19.30mm. These fir tree clips are ideally suited to joining two panels together

Nylon 66
UL94-V2
Temperature Range: -30°C to +85°C
Available in Black only.
RoHS compliant

Supplied in packs of 1000

All measurements are in mm

Downloads

Fir Tree Clip - BHF

Related Products

Fir Tree Clips - Non Removable

Fir Tree Clips - Removable

Fir Tree Clips - RBF

6 products

Product Code	Hole Dia	Dim B	Head Dia	Head Height	Length (A)	Panel Thickness	Price per pack
FTC-BHF-9	7.14mm	1.50mm	16.50mm	1.60mm	18.70mm	1.90-12.10mm	£99.53
FTC-BHF-10	7.14mm	11.70mm	16.50mm	1.60mm	28.80mm	12.10-22.20mm	£99.53
FTC-BHF-11	7.14mm	1.50mm	16.50mm	1.60mm	32.60mm	1.90-26.00mm	£108.11
FTC-BHF-12	7.14mm	6.60mm	16.50mm	1.60mm	37.70mm	7.00-31.10mm	£136.55
FTC-BHF-13	7.14mm	14.20mm	16.50mm	1.60mm	45.30mm	14.60-38.70mm	£136.55
FTC-BHF-14	7.14mm	19.30mm	16.50mm	1.60mm	50.80mm	19.70-43.80mm	£152.88
