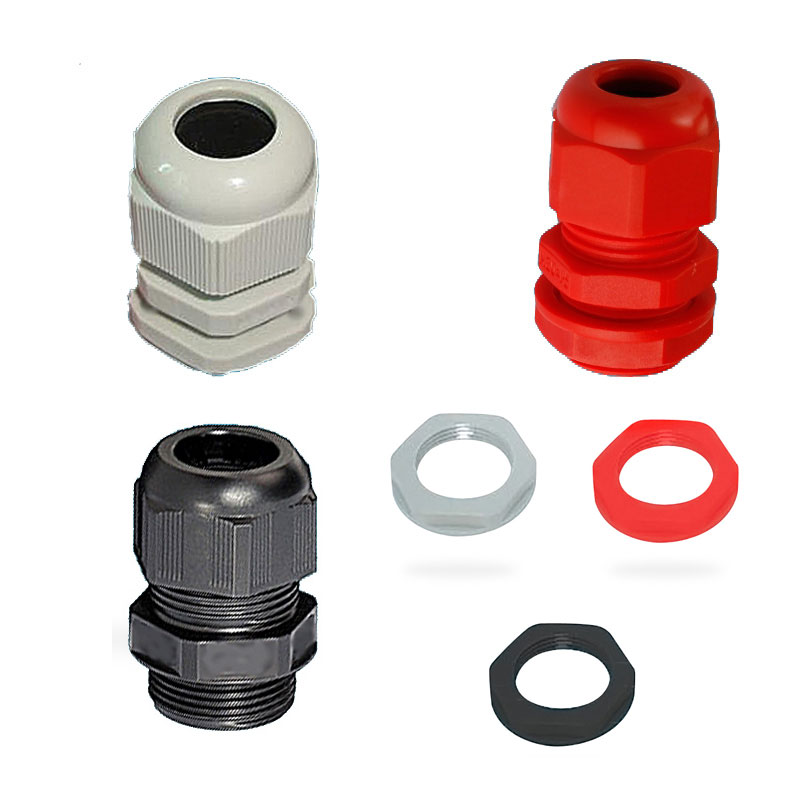

Metric Cable Gland M20
M20-NBM-02
To ensure protection and sealing for the passage of wiring into enclosures or through panels.
Our cable glands provide good ingress protection (IP) excluding dust and moisture from penetrating at the junction point as well as ensuring good levels of cable pull out resistance.
-
Includes M20 Locknut
-
Sold in packs of 200
Technical Information
- Body Material: Nylon 6
- Halogen Free LSOH
- Moulded in accordance to EN50262
- High heat and impact resistance
- Locking cap system maintains integrity of seal
- Seal: Vulcanised Thermoplastic TPV
- M20
- Metric Thread to comply EN60423
- IP68 5 bar
- RoHS Compliant
- Temperature range: -30C to +80°C
- Operational temperature: Up to +150°C intermittent
- UL Approved
- Colours: Grey, light grey, black, white & red
- Easy to assemble, liquid tight, excellent strain relief, wide clamping range.
Downloads
Cable Glands Metric
| Color | Thread Size | Clamping Range | Price per pack | Quantity | |
|---|---|---|---|---|---|
| Grey | M20 (20mm x 10mm) | (6mm-12mm) | £115.49 |
|
|
| Light Grey | M20 (20mm x 10mm) | (6mm-12mm) | £115.49 |
|
|
| Black | M20 (20mm x 10mm) | (6mm-12mm) | £115.49 |
|
|
| White | M20 (20mm x 10mm) | (6mm-12mm) | £115.49 |
|
|
| Red | M20 (20mm x 10mm) | (6mm-12mm) | £115.49 |
|
|
| Grey | M20 (20mm x 15mm) | (6mm-12mm) | £119.63 |
|
|
| Light Grey | M20 (20mm x 15mm) | (6mm-12mm) | £119.63 |
|
|
| Black | M20 (20mm x 15mm) | (6mm-12mm) | £119.63 |
|
|
| White | M20 (20mm x 15mm) | (6mm-12mm) | £119.63 |
|
|
| Red | M20 (20mm x 15mm) | (6mm-12mm) | £119.63 |
|
|
| Grey | M20 (20mm x 10mm) | (10mm-14mm) | £133.14 |
|
|
| Light Grey | M20 (20mm x 10mm) | (10mm-14mm) | £133.14 |
|
|
| Black | M20 (20mm x 10mm) | (10mm-14mm) | £133.14 |
|
|
| Red | M20 (20mm x 10mm) | (10mm-14mm) | £133.14 |
|
|
| Grey | M20 (20mm x 15mm) | (10mm-14mm) | £137.57 |
|
|
| Light Grey | M20 (20mm x 15mm) | (10mm-14mm) | £137.57 |
|
|
| Black | M20 (20mm x 15mm) | (10mm-14mm) | £137.57 |
|
|
| White | M20 (20mm x 15mm) | (10mm-14mm) | £137.57 |
|
|
| Red | M20 (20mm x 15mm) | (10mm-14mm) | £137.57 |
|
