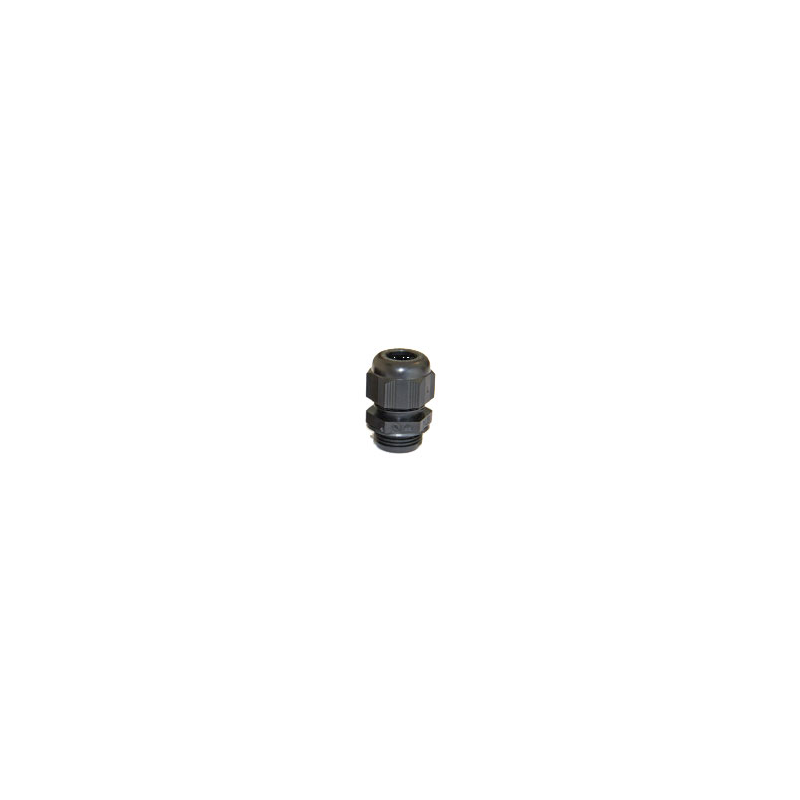

IP68 Metric Hazardous Area Cable Gland M63

This Hazardous Area Cable Gland is suitable for the following zones: 1, 2, 21, 22.

Our cable glands provide good ingress protection (IP) excluding dust and moisture from penetrating at the junction point as well as ensuring good levels of cable pull out resistance.

• Includes M63 Locknut

• Sold in packs of 200

Technical Information

• Body Material: Polyamide 6FV
• Halogen Free LSOH
• Moulded in accordance with EN60079 series standard
• High heat and impact resistance
• Locking cap system maintains integrity of seal
• Seal:  Vulcanised Thermoplastic TPV
• M63
• Metric Thread  to comply EN60423
• IP68
• Device Group: II
• Type of protection: Exe; TD
• Category: 2 and 3
• Atmospheres: G/D
• RoHS Compliant
• Temperature range: -20C to +55°C
• UL Approved
• Colours: Black only
• Easy to assemble, liquid tight, excellent strain relief, wide clamping range.
• Min cable Diameter: 40mm
• Max cable Diameter: 48mm
