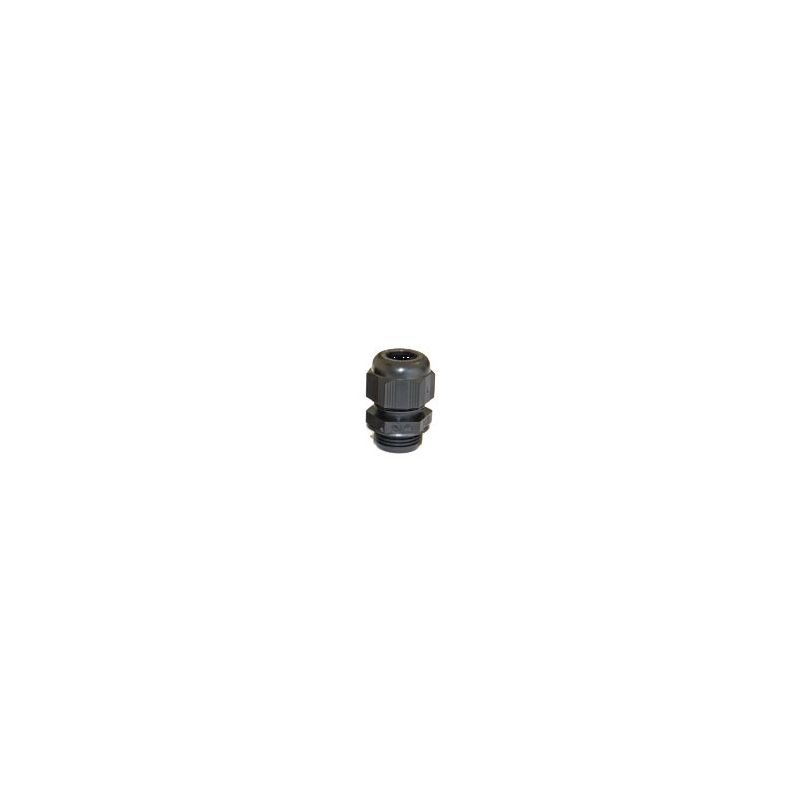

IP68 Metric Hazardous Area Cable Gland M40
M40-EXE-HA
This Hazardous Area Cable Gland is suitable for the following zones: 1, 2, 21, 22.
Our cable glands provide good ingress protection (IP) excluding dust and moisture from penetrating at the junction point as well as ensuring good levels of cable pull out resistance.
-
Includes M40 Locknut
-
Sold in packs of 200
Technical Information
- Body Material: Polyamide 6FV
- Halogen Free LSOH
- Moulded in accordance with EN60079 series standard
- High heat and impact resistance
- Locking cap system maintains integrity of seal
- Seal: Vulcanised Thermoplastic TPV
- M40
- Metric Thread to comply EN60423
- IP68
- Device Group: II
- Type of protection: Exe; TD
- Category: 2 and 3
- Atmospheres: G/D
- RoHS Compliant
- Temperature range: -20C to +55°C
- UL Approved
- Colours: Black only
- Easy to assemble, liquid tight, excellent strain relief, wide clamping range.
- Min cable Diameter: 24mm
- Max cable Diameter: 34mm
