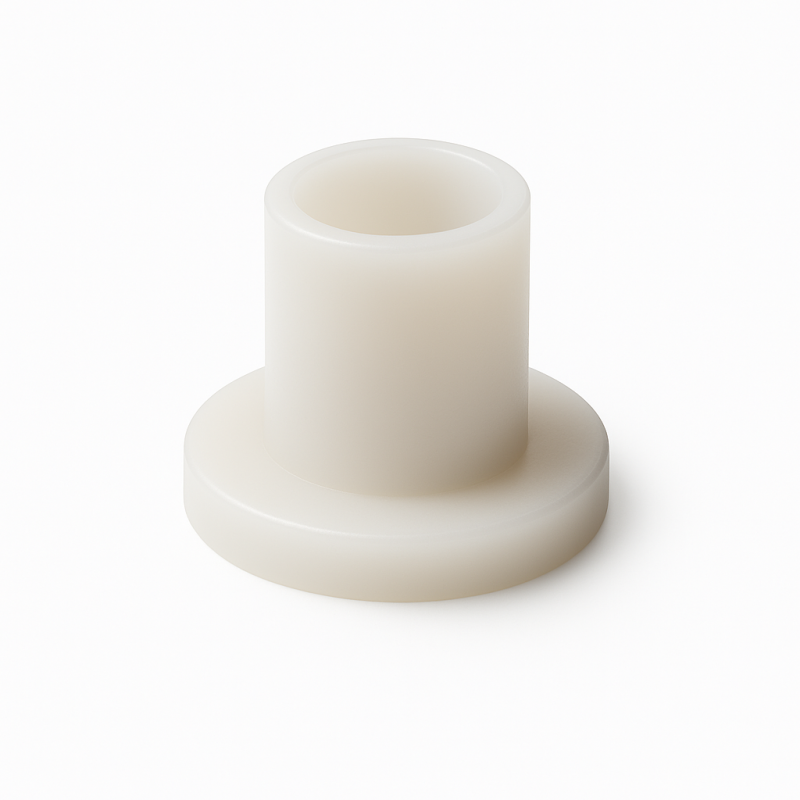

Nylon Standard Metric Shoulder Washers
MSHW
Our standard nylon metric shoulder washers can be used with our range of nylon metric machine screws, these nylon 66 metric insulators or nylon metric bushes can be utilised to separate metal screws where conductivity is an issue.
- Nylon 66
- UL94-V2
- Black and Natural
- RoHS Compliant
- Operating Temperature -35 to +85°C
Supplied in packs of 1000
Click here for our range of non-standard nylon shoulder washers
FILTER PRODUCTS
Colour
M Size
Major OD (mm)
Minor OD (mm)
ID (mm)
Head Thick (mm)
Length (mm)
SHW-M02-318
- Colour:
- Natural
- M Size:
- M2
- Dimensions:
- Major OD: 4.60mm Minor OD: 3.05mm ID: 2.29mm Head Thick: 1.17mm Length: 3.18mm
Units per pack: 1000
- Price per pack (1 pack) £38.54
- Price per pack (5+ packs) £34.30
- Price per pack (10+ packs) £30.83
SHW-M02-318-B
- Colour:
- Black
- M Size:
- M2
- Dimensions:
- Major OD: 4.60mm Minor OD: 3.05mm ID: 2.29mm Head Thick: 1.17mm Length: 3.18mm
Units per pack: 1000
- Price per pack (1 pack) £50.10
- Price per pack (5+ packs) £44.59
- Price per pack (10+ packs) £40.08
SHW-M02-953
- Colour:
- Natural
- M Size:
- M2
- Dimensions:
- Major OD: 4.60mm Minor OD: 3.05mm ID: 2.29mm Head Thick: 1.20mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £38.58
- Price per pack (5+ packs) £34.34
- Price per pack (10+ packs) £30.86
SHW-M02-953-B
- Colour:
- Black
- M Size:
- M2
- Dimensions:
- Major OD: 4.60mm Minor OD: 3.05mm ID: 2.29mm Head Thick: 1.20mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £50.15
- Price per pack (5+ packs) £44.63
- Price per pack (10+ packs) £40.12
MSHW-M03-002
- Colour:
- Natural
- M Size:
- M3
- Dimensions:
- Major OD: 6.20mm Minor OD: 4.00mm ID: 3.10mm Head Thick: 1.00mm Length: 2.00mm
Units per pack: 1000
- Price per pack (1 pack) £44.37
- Price per pack (5+ packs) £39.49
- Price per pack (10+ packs) £35.50
MSHW-M03-002-B
- Colour:
- Black
- M Size:
- M3
- Dimensions:
- Major OD: 6.20mm Minor OD: 4.00mm ID: 3.10mm Head Thick: 1.00mm Length: 2.00mm
Units per pack: 1000
- Price per pack (1 pack) £57.68
- Price per pack (5+ packs) £51.34
- Price per pack (10+ packs) £46.14
SHW-M03-318
- Colour:
- Natural
- M Size:
- M3
- Dimensions:
- Major OD: 7.37mm Minor OD: 4.32mm ID: 3.56mm Head Thick: 1.20mm Length: 3.18mm
Units per pack: 1000
- Price per pack (1 pack) £46.30
- Price per pack (5+ packs) £41.21
- Price per pack (10+ packs) £37.04
SHW-M03-318-B
- Colour:
- Black
- M Size:
- M3
- Dimensions:
- Major OD: 7.37mm Minor OD: 4.32mm ID: 3.56mm Head Thick: 1.20mm Length: 3.18mm
Units per pack: 1000
- Price per pack (1 pack) £60.19
- Price per pack (5+ packs) £53.57
- Price per pack (10+ packs) £48.15
SHW-M03-475
- Colour:
- Natural
- M Size:
- M3
- Dimensions:
- Major OD: 7.37mm Minor OD: 4.32mm ID: 3.56mm Head Thick: 1.17mm Length: 4.75mm
Units per pack: 1000
- Price per pack (1 pack) £45.93
- Price per pack (5+ packs) £40.88
- Price per pack (10+ packs) £36.74
SHW-M03-475-B
- Colour:
- Black
- M Size:
- M3
- Dimensions:
- Major OD: 7.37mm Minor OD: 4.32mm ID: 3.56mm Head Thick: 1.17mm Length: 4.75mm
Units per pack: 1000
- Price per pack (1 pack) £59.71
- Price per pack (5+ packs) £53.14
- Price per pack (10+ packs) £47.77
SHW-M03-635
- Colour:
- Natural
- M Size:
- M3
- Dimensions:
- Major OD: 7.37mm Minor OD: 4.32mm ID: 3.56mm Head Thick: 1.20mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £46.60
- Price per pack (5+ packs) £41.47
- Price per pack (10+ packs) £37.28
SHW-M03-635-B
- Colour:
- Black
- M Size:
- M3
- Dimensions:
- Major OD: 7.37mm Minor OD: 4.32mm ID: 3.56mm Head Thick: 1.20mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £60.58
- Price per pack (5+ packs) £53.92
- Price per pack (10+ packs) £48.46
MSHW-M04-003
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 3.00mm
Units per pack: 1000
- Price per pack (1 pack) £46.48
- Price per pack (5+ packs) £41.37
- Price per pack (10+ packs) £37.18
MSHW-M04-003-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 3.00mm
Units per pack: 1000
- Price per pack (1 pack) £60.42
- Price per pack (5+ packs) £53.77
- Price per pack (10+ packs) £48.34
SHW-M04-356
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 8.74mm Minor OD: 5.21mm ID: 4.40mm Head Thick: 1.58mm Length: 3.56mm
Units per pack: 1000
- Price per pack (1 pack) £48.22
- Price per pack (5+ packs) £42.92
- Price per pack (10+ packs) £38.58
SHW-M04-356-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 8.74mm Minor OD: 5.21mm ID: 4.40mm Head Thick: 1.58mm Length: 3.56mm
Units per pack: 1000
- Price per pack (1 pack) £62.69
- Price per pack (5+ packs) £55.79
- Price per pack (10+ packs) £50.15
MSHW-M04-004
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 4.00mm
Units per pack: 1000
- Price per pack (1 pack) £47.12
- Price per pack (5+ packs) £41.94
- Price per pack (10+ packs) £37.70
MSHW-M04-004-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 4.00mm
Units per pack: 1000
- Price per pack (1 pack) £61.26
- Price per pack (5+ packs) £54.52
- Price per pack (10+ packs) £49.01
SHW-M04-475
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 7.93mm Minor OD: 5.95mm ID: 4.68mm Head Thick: 0.79mm Length: 4.75mm
Units per pack: 1000
- Price per pack (1 pack) £48.26
- Price per pack (5+ packs) £42.95
- Price per pack (10+ packs) £38.61
SHW-M04-475-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 7.93mm Minor OD: 5.95mm ID: 4.68mm Head Thick: 0.79mm Length: 4.75mm
Units per pack: 1000
- Price per pack (1 pack) £62.74
- Price per pack (5+ packs) £55.84
- Price per pack (10+ packs) £50.19
MSHW-M04-005
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 5.00mm
Units per pack: 1000
- Price per pack (1 pack) £50.00
- Price per pack (5+ packs) £44.50
- Price per pack (10+ packs) £40.00
MSHW-M04-005-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 5.00mm
Units per pack: 1000
- Price per pack (1 pack) £62.80
- Price per pack (5+ packs) £55.89
- Price per pack (10+ packs) £50.24
SHW-M04-635
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 8.74mm Minor OD: 5.21mm ID: 4.40mm Head Thick: 1.58mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £48.22
- Price per pack (5+ packs) £42.92
- Price per pack (10+ packs) £38.58
SHW-M04-635-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 8.74mm Minor OD: 5.21mm ID: 4.40mm Head Thick: 1.58mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £62.69
- Price per pack (5+ packs) £55.79
- Price per pack (10+ packs) £50.15
MSHW-M04-007
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 7.00mm
Units per pack: 1000
- Price per pack (1 pack) £50.67
- Price per pack (5+ packs) £45.10
- Price per pack (10+ packs) £40.54
MSHW-M04-007-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 7.00mm
Units per pack: 1000
- Price per pack (1 pack) £65.87
- Price per pack (5+ packs) £58.62
- Price per pack (10+ packs) £52.70
MSHW-M04-009
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 9.00mm
Units per pack: 1000
- Price per pack (1 pack) £54.34
- Price per pack (5+ packs) £48.36
- Price per pack (10+ packs) £43.47
MSHW-M04-009-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 8.20mm Minor OD: 6.00mm ID: 4.10mm Head Thick: 1.50mm Length: 9.00mm
Units per pack: 1000
- Price per pack (1 pack) £70.64
- Price per pack (5+ packs) £62.87
- Price per pack (10+ packs) £56.51
SHW-M04-953
- Colour:
- Natural
- M Size:
- M4
- Dimensions:
- Major OD: 8.74mm Minor OD: 5.21mm ID: 4.40mm Head Thick: 1.58mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £48.26
- Price per pack (5+ packs) £42.95
- Price per pack (10+ packs) £38.61
SHW-M04-953-B
- Colour:
- Black
- M Size:
- M4
- Dimensions:
- Major OD: 8.74mm Minor OD: 5.21mm ID: 4.40mm Head Thick: 1.58mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £62.74
- Price per pack (5+ packs) £55.84
- Price per pack (10+ packs) £50.19
SHW-M05-200
- Colour:
- Natural
- M Size:
- M5
- Dimensions:
- Major OD: 9.91mm Minor OD: 7.96mm ID: 5.16mm Head Thick: 1.99mm Length: 1.99mm
Units per pack: 1000
- Price per pack (1 pack) £54.21
- Price per pack (5+ packs) £48.25
- Price per pack (10+ packs) £43.37
SHW-M05-200-B
- Colour:
- Black
- M Size:
- M5
- Dimensions:
- Major OD: 9.91mm Minor OD: 7.96mm ID: 5.16mm Head Thick: 1.99mm Length: 1.99mm
Units per pack: 1000
- Price per pack (1 pack) £70.47
- Price per pack (5+ packs) £62.72
- Price per pack (10+ packs) £56.38
MSHW-M05-003
- Colour:
- Natural
- M Size:
- M5
- Dimensions:
- Major OD: 10.20mm Minor OD: 7.00mm ID: 5.10mm Head Thick: 2.00mm Length: 3.00mm
Units per pack: 1000
- Price per pack (1 pack) £57.83
- Price per pack (5+ packs) £51.47
- Price per pack (10+ packs) £46.26
MSHW-M05-003-B
- Colour:
- Black
- M Size:
- M5
- Dimensions:
- Major OD: 10.20mm Minor OD: 7.00mm ID: 5.10mm Head Thick: 2.00mm Length: 3.00mm
Units per pack: 1000
- Price per pack (1 pack) £75.18
- Price per pack (5+ packs) £66.91
- Price per pack (10+ packs) £60.14
MSHW-M05-005
- Colour:
- Natural
- M Size:
- M5
- Dimensions:
- Major OD: 10.20mm Minor OD: 7.00mm ID: 5.10mm Head Thick: 2.00mm Length: 5.00mm
Units per pack: 1000
- Price per pack (1 pack) £59.47
- Price per pack (5+ packs) £52.93
- Price per pack (10+ packs) £47.58
MSHW-M05-005-B
- Colour:
- Black
- M Size:
- M5
- Dimensions:
- Major OD: 10.20mm Minor OD: 7.00mm ID: 5.10mm Head Thick: 2.00mm Length: 5.00mm
Units per pack: 1000
- Price per pack (1 pack) £77.31
- Price per pack (5+ packs) £68.81
- Price per pack (10+ packs) £61.85
SHW-M05-635
- Colour:
- Natural
- M Size:
- M5
- Dimensions:
- Major OD: 10.14mm Minor OD: 6.61mm ID: 5.08mm Head Thick: 1.58mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £34.85
- Price per pack (5+ packs) £31.02
- Price per pack (10+ packs) £27.88
SHW-M05-635-B
- Colour:
- Black
- M Size:
- M5
- Dimensions:
- Major OD: 10.14mm Minor OD: 6.61mm ID: 5.08mm Head Thick: 1.58mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £45.31
- Price per pack (5+ packs) £40.33
- Price per pack (10+ packs) £36.25
MSHW-M05-009
- Colour:
- Natural
- M Size:
- M5
- Dimensions:
- Major OD: 10.20mm Minor OD: 7.00mm ID: 5.10mm Head Thick: 2.00mm Length: 9.00mm
Units per pack: 1000
- Price per pack (1 pack) £60.87
- Price per pack (5+ packs) £54.17
- Price per pack (10+ packs) £48.70
MSHW-M05-009-B
- Colour:
- Black
- M Size:
- M5
- Dimensions:
- Major OD: 10.20mm Minor OD: 7.00mm ID: 5.10mm Head Thick: 2.00mm Length: 9.00mm
Units per pack: 1000
- Price per pack (1 pack) £79.13
- Price per pack (5+ packs) £70.43
- Price per pack (10+ packs) £63.30
SHW-M05-953
- Colour:
- Natural
- M Size:
- M5
- Dimensions:
- Major OD: 10.14mm Minor OD: 6.61mm ID: 5.08mm Head Thick: 1.61mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £51.43
- Price per pack (5+ packs) £45.77
- Price per pack (10+ packs) £41.14
SHW-M05-953-B
- Colour:
- Black
- M Size:
- M5
- Dimensions:
- Major OD: 10.14mm Minor OD: 6.61mm ID: 5.08mm Head Thick: 1.61mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £66.86
- Price per pack (5+ packs) £59.51
- Price per pack (10+ packs) £53.49
SHW-M05-1270
- Colour:
- Natural
- M Size:
- M5
- Dimensions:
- Major OD: 10.14mm Minor OD: 6.69mm ID: 5.08mm Head Thick: 1.58mm Length: 12.70mm
Units per pack: 1000
- Price per pack (1 pack) £51.43
- Price per pack (5+ packs) £45.77
- Price per pack (10+ packs) £41.14
SHW-M05-1270-B
- Colour:
- Black
- M Size:
- M5
- Dimensions:
- Major OD: 10.14mm Minor OD: 6.69mm ID: 5.08mm Head Thick: 1.58mm Length: 12.70mm
Units per pack: 1000
- Price per pack (1 pack) £66.86
- Price per pack (5+ packs) £59.51
- Price per pack (10+ packs) £53.49
SHW-M05-1905
- Colour:
- Natural
- M Size:
- M5
- Dimensions:
- Major OD: 10.14mm Minor OD: 6.61mm ID: 5.08mm Head Thick: 1.58mm Length: 19.05mm
Units per pack: 1000
- Price per pack (1 pack) £51.43
- Price per pack (5+ packs) £45.77
- Price per pack (10+ packs) £41.14
SHW-M05-1905-B
- Colour:
- Black
- M Size:
- M5
- Dimensions:
- Major OD: 10.14mm Minor OD: 6.61mm ID: 5.08mm Head Thick: 1.58mm Length: 19.05mm
Units per pack: 1000
- Price per pack (1 pack) £66.86
- Price per pack (5+ packs) £59.51
- Price per pack (10+ packs) £53.49
SHW-M06-158
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 10.80mm Minor OD: 7.88mm ID: 6.35mm Head Thick: 1.58mm Length: 1.58mm
Units per pack: 1000
- Price per pack (1 pack) £49.55
- Price per pack (5+ packs) £44.10
- Price per pack (10+ packs) £39.64
SHW-M06-158-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 10.80mm Minor OD: 7.88mm ID: 6.35mm Head Thick: 1.58mm Length: 1.58mm
Units per pack: 1000
- Price per pack (1 pack) £64.42
- Price per pack (5+ packs) £57.33
- Price per pack (10+ packs) £51.54
SHW-M06-239
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 12.83mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 2.39mm
Units per pack: 1000
- Price per pack (1 pack) £44.64
- Price per pack (5+ packs) £39.73
- Price per pack (10+ packs) £35.71
SHW-M06-239-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 12.83mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 2.39mm
Units per pack: 1000
- Price per pack (1 pack) £58.03
- Price per pack (5+ packs) £51.65
- Price per pack (10+ packs) £46.42
SHW-M06-318
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 3.18mm
Units per pack: 1000
- Price per pack (1 pack) £54.69
- Price per pack (5+ packs) £48.67
- Price per pack (10+ packs) £43.75
SHW-M06-318-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 3.18mm
Units per pack: 1000
- Price per pack (1 pack) £71.10
- Price per pack (5+ packs) £63.28
- Price per pack (10+ packs) £56.88
SHW-M06-359
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 3.59mm
Units per pack: 1000
- Price per pack (1 pack) £53.03
- Price per pack (5+ packs) £47.20
- Price per pack (10+ packs) £42.42
SHW-M06-359-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 3.59mm
Units per pack: 1000
- Price per pack (1 pack) £68.94
- Price per pack (5+ packs) £61.36
- Price per pack (10+ packs) £55.15
MSHW-M06-004
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 12.20mm Minor OD: 8.00mm ID: 6.10mm Head Thick: 2.00mm Length: 4.00mm
Units per pack: 1000
- Price per pack (1 pack) £60.96
- Price per pack (5+ packs) £54.25
- Price per pack (10+ packs) £48.77
MSHW-M06-004-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 12.20mm Minor OD: 8.00mm ID: 6.10mm Head Thick: 2.00mm Length: 4.00mm
Units per pack: 1000
- Price per pack (1 pack) £79.25
- Price per pack (5+ packs) £70.53
- Price per pack (10+ packs) £63.40
SHW-M06-475
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 4.75mm
Units per pack: 1000
- Price per pack (1 pack) £54.09
- Price per pack (5+ packs) £48.14
- Price per pack (10+ packs) £43.27
SHW-M06-475-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 4.75mm
Units per pack: 1000
- Price per pack (1 pack) £70.32
- Price per pack (5+ packs) £62.58
- Price per pack (10+ packs) £56.26
MSHW-M06-006
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 12.20mm Minor OD: 8.00mm ID: 6.10mm Head Thick: 2.00mm Length: 6.00mm
Units per pack: 1000
- Price per pack (1 pack) £61.25
- Price per pack (5+ packs) £54.51
- Price per pack (10+ packs) £49.00
MSHW-M06-006-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 12.20mm Minor OD: 8.00mm ID: 6.10mm Head Thick: 2.00mm Length: 6.00mm
Units per pack: 1000
- Price per pack (1 pack) £79.63
- Price per pack (5+ packs) £70.87
- Price per pack (10+ packs) £63.70
SHW-M06-635
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £53.03
- Price per pack (5+ packs) £47.20
- Price per pack (10+ packs) £42.42
SHW-M06-635-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £68.94
- Price per pack (5+ packs) £61.36
- Price per pack (10+ packs) £55.15
MSHW-M06-008
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 12.20mm Minor OD: 8.00mm ID: 6.10mm Head Thick: 2.00mm Length: 8.00mm
Units per pack: 1000
- Price per pack (1 pack) £61.53
- Price per pack (5+ packs) £54.76
- Price per pack (10+ packs) £49.22
MSHW-M06-008-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 12.20mm Minor OD: 8.00mm ID: 6.10mm Head Thick: 2.00mm Length: 8.00mm
Units per pack: 1000
- Price per pack (1 pack) £79.99
- Price per pack (5+ packs) £71.19
- Price per pack (10+ packs) £63.99
SHW-M06-953
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 13.09mm Minor OD: 7.90mm ID: 6.61mm Head Thick: 1.58mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £53.03
- Price per pack (5+ packs) £47.20
- Price per pack (10+ packs) £42.42
SHW-M06-953-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 13.09mm Minor OD: 7.90mm ID: 6.61mm Head Thick: 1.58mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £68.94
- Price per pack (5+ packs) £61.36
- Price per pack (10+ packs) £55.15
SHW-M06-1270
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 12.70mm
Units per pack: 1000
- Price per pack (1 pack) £53.03
- Price per pack (5+ packs) £47.20
- Price per pack (10+ packs) £42.42
SHW-M06-1270-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 12.70mm
Units per pack: 1000
- Price per pack (1 pack) £68.94
- Price per pack (5+ packs) £61.36
- Price per pack (10+ packs) £55.15
SHW-M06-1588
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 15.88mm
Units per pack: 1000
- Price per pack (1 pack) £79.95
- Price per pack (5+ packs) £71.16
- Price per pack (10+ packs) £63.96
SHW-M06-1588-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 15.88mm
Units per pack: 1000
- Price per pack (1 pack) £103.94
- Price per pack (5+ packs) £92.51
- Price per pack (10+ packs) £83.15
SHW-M06-1905
- Colour:
- Natural
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 19.05mm
Units per pack: 1000
- Price per pack (1 pack) £81.17
- Price per pack (5+ packs) £72.24
- Price per pack (10+ packs) £64.94
SHW-M06-1905-B
- Colour:
- Black
- M Size:
- M6
- Dimensions:
- Major OD: 13.04mm Minor OD: 7.93mm ID: 6.61mm Head Thick: 1.58mm Length: 19.05mm
Units per pack: 1000
- Price per pack (1 pack) £105.52
- Price per pack (5+ packs) £93.91
- Price per pack (10+ packs) £84.42
SHW-M08-237
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.61mm Length: 2.37mm
Units per pack: 1000
- Price per pack (1 pack) £53.47
- Price per pack (5+ packs) £47.59
- Price per pack (10+ packs) £42.78
SHW-M08-237-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.61mm Length: 2.37mm
Units per pack: 1000
- Price per pack (1 pack) £69.51
- Price per pack (5+ packs) £61.86
- Price per pack (10+ packs) £55.61
SHW-M08-318
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 3.18mm
Units per pack: 1000
- Price per pack (1 pack) £54.61
- Price per pack (5+ packs) £48.60
- Price per pack (10+ packs) £43.69
SHW-M08-318-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 3.18mm
Units per pack: 1000
- Price per pack (1 pack) £70.99
- Price per pack (5+ packs) £63.18
- Price per pack (10+ packs) £56.79
MSHW-M08-006
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 14.20mm Minor OD: 10.00mm ID: 8.10mm Head Thick: 2.50mm Length: 6.00mm
Units per pack: 1000
- Price per pack (1 pack) £61.67
- Price per pack (5+ packs) £54.89
- Price per pack (10+ packs) £49.34
MSHW-M08-006-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 14.20mm Minor OD: 10.00mm ID: 8.10mm Head Thick: 2.50mm Length: 6.00mm
Units per pack: 1000
- Price per pack (1 pack) £80.17
- Price per pack (5+ packs) £71.35
- Price per pack (10+ packs) £64.14
SHW-M08-635
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £50.84
- Price per pack (5+ packs) £45.25
- Price per pack (10+ packs) £40.67
SHW-M08-635-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 6.35mm
Units per pack: 1000
- Price per pack (1 pack) £66.09
- Price per pack (5+ packs) £58.82
- Price per pack (10+ packs) £52.87
MSHW-M08-008
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 14.20mm Minor OD: 10.00mm ID: 8.10mm Head Thick: 2.50mm Length: 8.00mm
Units per pack: 1000
- Price per pack (1 pack) £64.08
- Price per pack (5+ packs) £57.03
- Price per pack (10+ packs) £51.26
MSHW-M08-008-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 14.20mm Minor OD: 10.00mm ID: 8.10mm Head Thick: 2.50mm Length: 8.00mm
Units per pack: 1000
- Price per pack (1 pack) £83.30
- Price per pack (5+ packs) £74.14
- Price per pack (10+ packs) £66.64
SHW-M08-953
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £59.63
- Price per pack (5+ packs) £53.07
- Price per pack (10+ packs) £47.70
SHW-M08-953-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 9.53mm
Units per pack: 1000
- Price per pack (1 pack) £77.52
- Price per pack (5+ packs) £68.99
- Price per pack (10+ packs) £62.02
MSHW-M08-012
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 14.20mm Minor OD: 10.00mm ID: 8.10mm Head Thick: 2.50mm Length: 12.00mm
Units per pack: 1000
- Price per pack (1 pack) £67.90
- Price per pack (5+ packs) £60.43
- Price per pack (10+ packs) £54.32
MSHW-M08-012-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 14.20mm Minor OD: 10.00mm ID: 8.10mm Head Thick: 2.50mm Length: 12.00mm
Units per pack: 1000
- Price per pack (1 pack) £88.27
- Price per pack (5+ packs) £78.56
- Price per pack (10+ packs) £70.62
SHW-M08-1270
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 12.70mm
Units per pack: 1000
- Price per pack (1 pack) £50.84
- Price per pack (5+ packs) £45.25
- Price per pack (10+ packs) £40.67
SHW-M08-1270-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 12.70mm
Units per pack: 1000
- Price per pack (1 pack) £66.09
- Price per pack (5+ packs) £58.82
- Price per pack (10+ packs) £52.87
SHW-M08-1588
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 15.88mm
Units per pack: 1000
- Price per pack (1 pack) £50.84
- Price per pack (5+ packs) £45.25
- Price per pack (10+ packs) £40.67
SHW-M08-1588-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 15.75mm Minor OD: 9.15mm ID: 8.13mm Head Thick: 1.58mm Length: 15.88mm
Units per pack: 1000
- Price per pack (1 pack) £66.09
- Price per pack (5+ packs) £58.82
- Price per pack (10+ packs) £52.87
MSHW-M08-016
- Colour:
- Natural
- M Size:
- M8
- Dimensions:
- Major OD: 14.20mm Minor OD: 10.00mm ID: 8.10mm Head Thick: 2.50mm Length: 16.00mm
Units per pack: 1000
- Price per pack (1 pack) £74.74
- Price per pack (5+ packs) £66.52
- Price per pack (10+ packs) £59.79
MSHW-M08-016-B
- Colour:
- Black
- M Size:
- M8
- Dimensions:
- Major OD: 14.20mm Minor OD: 10.00mm ID: 8.10mm Head Thick: 2.50mm Length: 16.00mm
Units per pack: 1000
- Price per pack (1 pack) £97.16
- Price per pack (5+ packs) £86.47
- Price per pack (10+ packs) £77.73
SHW-M10-1067
- Colour:
- Natural
- M Size:
- M10
- Dimensions:
- Major OD: 18.04mm Minor OD: 11.94mm ID: 10.67mm Head Thick: 1.91mm Length: 10.67mm
Units per pack: 1000
- Price per pack (1 pack) £96.56
- Price per pack (5+ packs) £85.94
- Price per pack (10+ packs) £77.25
SHW-M10-1067-B
- Colour:
- Black
- M Size:
- M10
- Dimensions:
- Major OD: 18.04mm Minor OD: 11.94mm ID: 10.67mm Head Thick: 1.91mm Length: 10.67mm
Units per pack: 1000
- Price per pack (1 pack) £125.53
- Price per pack (5+ packs) £111.72
- Price per pack (10+ packs) £100.42
SHW-M12-1344
- Colour:
- Natural
- M Size:
- M12
- Dimensions:
- Major OD: 22.23mm Minor OD: 15.17mm ID: 12.70mm Head Thick: 1.17mm Length: 13.44mm
Units per pack: 1000
- Price per pack (1 pack) £127.13
- Price per pack (5+ packs) £113.15
- Price per pack (10+ packs) £101.70
SHW-M12-1344-B
- Colour:
- Black
- M Size:
- M12
- Dimensions:
- Major OD: 22.23mm Minor OD: 15.17mm ID: 12.70mm Head Thick: 1.17mm Length: 13.44mm
Units per pack: 1000
- Price per pack (1 pack) £165.27
- Price per pack (5+ packs) £147.09
- Price per pack (10+ packs) £132.22
| Product Code | Color | M Size | Major OD | Minor OD | ID | Head Thick | Length | Price per pack | Price per pack 5+ | Price per pack 10+ | Quantity | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SHW-M02-318 | Natural | M2 | 4.60mm | 3.05mm | 2.29mm | 1.17mm | 3.18mm | £38.54 | £34.30 | £30.83 |
|
|
| SHW-M02-318-B | Black | M2 | 4.60mm | 3.05mm | 2.29mm | 1.17mm | 3.18mm | £50.10 | £44.59 | £40.08 |
|
|
| SHW-M02-953 | Natural | M2 | 4.60mm | 3.05mm | 2.29mm | 1.20mm | 9.53mm | £38.58 | £34.34 | £30.86 |
|
|
| SHW-M02-953-B | Black | M2 | 4.60mm | 3.05mm | 2.29mm | 1.20mm | 9.53mm | £50.15 | £44.63 | £40.12 |
|
|
| MSHW-M03-002 | Natural | M3 | 6.20mm | 4.00mm | 3.10mm | 1.00mm | 2.00mm | £44.37 | £39.49 | £35.50 |
|
|
| MSHW-M03-002-B | Black | M3 | 6.20mm | 4.00mm | 3.10mm | 1.00mm | 2.00mm | £57.68 | £51.34 | £46.14 |
|
|
| SHW-M03-318 | Natural | M3 | 7.37mm | 4.32mm | 3.56mm | 1.20mm | 3.18mm | £46.30 | £41.21 | £37.04 |
|
|
| SHW-M03-318-B | Black | M3 | 7.37mm | 4.32mm | 3.56mm | 1.20mm | 3.18mm | £60.19 | £53.57 | £48.15 |
|
|
| SHW-M03-475 | Natural | M3 | 7.37mm | 4.32mm | 3.56mm | 1.17mm | 4.75mm | £45.93 | £40.88 | £36.74 |
|
|
| SHW-M03-475-B | Black | M3 | 7.37mm | 4.32mm | 3.56mm | 1.17mm | 4.75mm | £59.71 | £53.14 | £47.77 |
|
|
| SHW-M03-635 | Natural | M3 | 7.37mm | 4.32mm | 3.56mm | 1.20mm | 6.35mm | £46.60 | £41.47 | £37.28 |
|
|
| SHW-M03-635-B | Black | M3 | 7.37mm | 4.32mm | 3.56mm | 1.20mm | 6.35mm | £60.58 | £53.92 | £48.46 |
|
|
| MSHW-M04-003 | Natural | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 3.00mm | £46.48 | £41.37 | £37.18 |
|
|
| MSHW-M04-003-B | Black | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 3.00mm | £60.42 | £53.77 | £48.34 |
|
|
| SHW-M04-356 | Natural | M4 | 8.74mm | 5.21mm | 4.40mm | 1.58mm | 3.56mm | £48.22 | £42.92 | £38.58 |
|
|
| SHW-M04-356-B | Black | M4 | 8.74mm | 5.21mm | 4.40mm | 1.58mm | 3.56mm | £62.69 | £55.79 | £50.15 |
|
|
| MSHW-M04-004 | Natural | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 4.00mm | £47.12 | £41.94 | £37.70 |
|
|
| MSHW-M04-004-B | Black | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 4.00mm | £61.26 | £54.52 | £49.01 |
|
|
| SHW-M04-475 | Natural | M4 | 7.93mm | 5.95mm | 4.68mm | 0.79mm | 4.75mm | £48.26 | £42.95 | £38.61 |
|
|
| SHW-M04-475-B | Black | M4 | 7.93mm | 5.95mm | 4.68mm | 0.79mm | 4.75mm | £62.74 | £55.84 | £50.19 |
|
|
| MSHW-M04-005 | Natural | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 5.00mm | £50.00 | £44.50 | £40.00 |
|
|
| MSHW-M04-005-B | Black | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 5.00mm | £62.80 | £55.89 | £50.24 |
|
|
| SHW-M04-635 | Natural | M4 | 8.74mm | 5.21mm | 4.40mm | 1.58mm | 6.35mm | £48.22 | £42.92 | £38.58 |
|
|
| SHW-M04-635-B | Black | M4 | 8.74mm | 5.21mm | 4.40mm | 1.58mm | 6.35mm | £62.69 | £55.79 | £50.15 |
|
|
| MSHW-M04-007 | Natural | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 7.00mm | £50.67 | £45.10 | £40.54 |
|
|
| MSHW-M04-007-B | Black | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 7.00mm | £65.87 | £58.62 | £52.70 |
|
|
| MSHW-M04-009 | Natural | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 9.00mm | £54.34 | £48.36 | £43.47 |
|
|
| MSHW-M04-009-B | Black | M4 | 8.20mm | 6.00mm | 4.10mm | 1.50mm | 9.00mm | £70.64 | £62.87 | £56.51 |
|
|
| SHW-M04-953 | Natural | M4 | 8.74mm | 5.21mm | 4.40mm | 1.58mm | 9.53mm | £48.26 | £42.95 | £38.61 |
|
|
| SHW-M04-953-B | Black | M4 | 8.74mm | 5.21mm | 4.40mm | 1.58mm | 9.53mm | £62.74 | £55.84 | £50.19 |
|
|
| SHW-M05-200 | Natural | M5 | 9.91mm | 7.96mm | 5.16mm | 1.99mm | 1.99mm | £54.21 | £48.25 | £43.37 |
|
|
| SHW-M05-200-B | Black | M5 | 9.91mm | 7.96mm | 5.16mm | 1.99mm | 1.99mm | £70.47 | £62.72 | £56.38 |
|
|
| MSHW-M05-003 | Natural | M5 | 10.20mm | 7.00mm | 5.10mm | 2.00mm | 3.00mm | £57.83 | £51.47 | £46.26 |
|
|
| MSHW-M05-003-B | Black | M5 | 10.20mm | 7.00mm | 5.10mm | 2.00mm | 3.00mm | £75.18 | £66.91 | £60.14 |
|
|
| MSHW-M05-005 | Natural | M5 | 10.20mm | 7.00mm | 5.10mm | 2.00mm | 5.00mm | £59.47 | £52.93 | £47.58 |
|
|
| MSHW-M05-005-B | Black | M5 | 10.20mm | 7.00mm | 5.10mm | 2.00mm | 5.00mm | £77.31 | £68.81 | £61.85 |
|
|
| SHW-M05-635 | Natural | M5 | 10.14mm | 6.61mm | 5.08mm | 1.58mm | 6.35mm | £34.85 | £31.02 | £27.88 |
|
|
| SHW-M05-635-B | Black | M5 | 10.14mm | 6.61mm | 5.08mm | 1.58mm | 6.35mm | £45.31 | £40.33 | £36.25 |
|
|
| MSHW-M05-009 | Natural | M5 | 10.20mm | 7.00mm | 5.10mm | 2.00mm | 9.00mm | £60.87 | £54.17 | £48.70 |
|
|
| MSHW-M05-009-B | Black | M5 | 10.20mm | 7.00mm | 5.10mm | 2.00mm | 9.00mm | £79.13 | £70.43 | £63.30 |
|
|
| SHW-M05-953 | Natural | M5 | 10.14mm | 6.61mm | 5.08mm | 1.61mm | 9.53mm | £51.43 | £45.77 | £41.14 |
|
|
| SHW-M05-953-B | Black | M5 | 10.14mm | 6.61mm | 5.08mm | 1.61mm | 9.53mm | £66.86 | £59.51 | £53.49 |
|
|
| SHW-M05-1270 | Natural | M5 | 10.14mm | 6.69mm | 5.08mm | 1.58mm | 12.70mm | £51.43 | £45.77 | £41.14 |
|
|
| SHW-M05-1270-B | Black | M5 | 10.14mm | 6.69mm | 5.08mm | 1.58mm | 12.70mm | £66.86 | £59.51 | £53.49 |
|
|
| SHW-M05-1905 | Natural | M5 | 10.14mm | 6.61mm | 5.08mm | 1.58mm | 19.05mm | £51.43 | £45.77 | £41.14 |
|
|
| SHW-M05-1905-B | Black | M5 | 10.14mm | 6.61mm | 5.08mm | 1.58mm | 19.05mm | £66.86 | £59.51 | £53.49 |
|
|
| SHW-M06-158 | Natural | M6 | 10.80mm | 7.88mm | 6.35mm | 1.58mm | 1.58mm | £49.55 | £44.10 | £39.64 |
|
|
| SHW-M06-158-B | Black | M6 | 10.80mm | 7.88mm | 6.35mm | 1.58mm | 1.58mm | £64.42 | £57.33 | £51.54 |
|
|
| SHW-M06-239 | Natural | M6 | 12.83mm | 7.93mm | 6.61mm | 1.58mm | 2.39mm | £44.64 | £39.73 | £35.71 |
|
|
| SHW-M06-239-B | Black | M6 | 12.83mm | 7.93mm | 6.61mm | 1.58mm | 2.39mm | £58.03 | £51.65 | £46.42 |
|
|
| SHW-M06-318 | Natural | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 3.18mm | £54.69 | £48.67 | £43.75 |
|
|
| SHW-M06-318-B | Black | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 3.18mm | £71.10 | £63.28 | £56.88 |
|
|
| SHW-M06-359 | Natural | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 3.59mm | £53.03 | £47.20 | £42.42 |
|
|
| SHW-M06-359-B | Black | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 3.59mm | £68.94 | £61.36 | £55.15 |
|
|
| MSHW-M06-004 | Natural | M6 | 12.20mm | 8.00mm | 6.10mm | 2.00mm | 4.00mm | £60.96 | £54.25 | £48.77 |
|
|
| MSHW-M06-004-B | Black | M6 | 12.20mm | 8.00mm | 6.10mm | 2.00mm | 4.00mm | £79.25 | £70.53 | £63.40 |
|
|
| SHW-M06-475 | Natural | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 4.75mm | £54.09 | £48.14 | £43.27 |
|
|
| SHW-M06-475-B | Black | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 4.75mm | £70.32 | £62.58 | £56.26 |
|
|
| MSHW-M06-006 | Natural | M6 | 12.20mm | 8.00mm | 6.10mm | 2.00mm | 6.00mm | £61.25 | £54.51 | £49.00 |
|
|
| MSHW-M06-006-B | Black | M6 | 12.20mm | 8.00mm | 6.10mm | 2.00mm | 6.00mm | £79.63 | £70.87 | £63.70 |
|
|
| SHW-M06-635 | Natural | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 6.35mm | £53.03 | £47.20 | £42.42 |
|
|
| SHW-M06-635-B | Black | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 6.35mm | £68.94 | £61.36 | £55.15 |
|
|
| MSHW-M06-008 | Natural | M6 | 12.20mm | 8.00mm | 6.10mm | 2.00mm | 8.00mm | £61.53 | £54.76 | £49.22 |
|
|
| MSHW-M06-008-B | Black | M6 | 12.20mm | 8.00mm | 6.10mm | 2.00mm | 8.00mm | £79.99 | £71.19 | £63.99 |
|
|
| SHW-M06-953 | Natural | M6 | 13.09mm | 7.90mm | 6.61mm | 1.58mm | 9.53mm | £53.03 | £47.20 | £42.42 |
|
|
| SHW-M06-953-B | Black | M6 | 13.09mm | 7.90mm | 6.61mm | 1.58mm | 9.53mm | £68.94 | £61.36 | £55.15 |
|
|
| SHW-M06-1270 | Natural | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 12.70mm | £53.03 | £47.20 | £42.42 |
|
|
| SHW-M06-1270-B | Black | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 12.70mm | £68.94 | £61.36 | £55.15 |
|
|
| SHW-M06-1588 | Natural | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 15.88mm | £79.95 | £71.16 | £63.96 |
|
|
| SHW-M06-1588-B | Black | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 15.88mm | £103.94 | £92.51 | £83.15 |
|
|
| SHW-M06-1905 | Natural | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 19.05mm | £81.17 | £72.24 | £64.94 |
|
|
| SHW-M06-1905-B | Black | M6 | 13.04mm | 7.93mm | 6.61mm | 1.58mm | 19.05mm | £105.52 | £93.91 | £84.42 |
|
|
| SHW-M08-237 | Natural | M8 | 15.75mm | 9.15mm | 8.13mm | 1.61mm | 2.37mm | £53.47 | £47.59 | £42.78 |
|
|
| SHW-M08-237-B | Black | M8 | 15.75mm | 9.15mm | 8.13mm | 1.61mm | 2.37mm | £69.51 | £61.86 | £55.61 |
|
|
| SHW-M08-318 | Natural | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 3.18mm | £54.61 | £48.60 | £43.69 |
|
|
| SHW-M08-318-B | Black | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 3.18mm | £70.99 | £63.18 | £56.79 |
|
|
| MSHW-M08-006 | Natural | M8 | 14.20mm | 10.00mm | 8.10mm | 2.50mm | 6.00mm | £61.67 | £54.89 | £49.34 |
|
|
| MSHW-M08-006-B | Black | M8 | 14.20mm | 10.00mm | 8.10mm | 2.50mm | 6.00mm | £80.17 | £71.35 | £64.14 |
|
|
| SHW-M08-635 | Natural | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 6.35mm | £50.84 | £45.25 | £40.67 |
|
|
| SHW-M08-635-B | Black | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 6.35mm | £66.09 | £58.82 | £52.87 |
|
|
| MSHW-M08-008 | Natural | M8 | 14.20mm | 10.00mm | 8.10mm | 2.50mm | 8.00mm | £64.08 | £57.03 | £51.26 |
|
|
| MSHW-M08-008-B | Black | M8 | 14.20mm | 10.00mm | 8.10mm | 2.50mm | 8.00mm | £83.30 | £74.14 | £66.64 |
|
|
| SHW-M08-953 | Natural | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 9.53mm | £59.63 | £53.07 | £47.70 |
|
|
| SHW-M08-953-B | Black | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 9.53mm | £77.52 | £68.99 | £62.02 |
|
|
| MSHW-M08-012 | Natural | M8 | 14.20mm | 10.00mm | 8.10mm | 2.50mm | 12.00mm | £67.90 | £60.43 | £54.32 |
|
|
| MSHW-M08-012-B | Black | M8 | 14.20mm | 10.00mm | 8.10mm | 2.50mm | 12.00mm | £88.27 | £78.56 | £70.62 |
|
|
| SHW-M08-1270 | Natural | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 12.70mm | £50.84 | £45.25 | £40.67 |
|
|
| SHW-M08-1270-B | Black | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 12.70mm | £66.09 | £58.82 | £52.87 |
|
|
| SHW-M08-1588 | Natural | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 15.88mm | £50.84 | £45.25 | £40.67 |
|
|
| SHW-M08-1588-B | Black | M8 | 15.75mm | 9.15mm | 8.13mm | 1.58mm | 15.88mm | £66.09 | £58.82 | £52.87 |
|
|
| MSHW-M08-016 | Natural | M8 | 14.20mm | 10.00mm | 8.10mm | 2.50mm | 16.00mm | £74.74 | £66.52 | £59.79 |
|
|
| MSHW-M08-016-B | Black | M8 | 14.20mm | 10.00mm | 8.10mm | 2.50mm | 16.00mm | £97.16 | £86.47 | £77.73 |
|
|
| SHW-M10-1067 | Natural | M10 | 18.04mm | 11.94mm | 10.67mm | 1.91mm | 10.67mm | £96.56 | £85.94 | £77.25 |
|
|
| SHW-M10-1067-B | Black | M10 | 18.04mm | 11.94mm | 10.67mm | 1.91mm | 10.67mm | £125.53 | £111.72 | £100.42 |
|
|
| SHW-M12-1344 | Natural | M12 | 22.23mm | 15.17mm | 12.70mm | 1.17mm | 13.44mm | £127.13 | £113.15 | £101.70 |
|
|
| SHW-M12-1344-B | Black | M12 | 22.23mm | 15.17mm | 12.70mm | 1.17mm | 13.44mm | £165.27 | £147.09 | £132.22 |
|
