Metric Pan Phillips Machine Screws
  • Metric Pan Phillips Machine Screws
  • Metric Pan Phillips Machine Screws
  • Metric Pan Phillips Machine Screws
  • Metric Pan Phillips Machine Screws

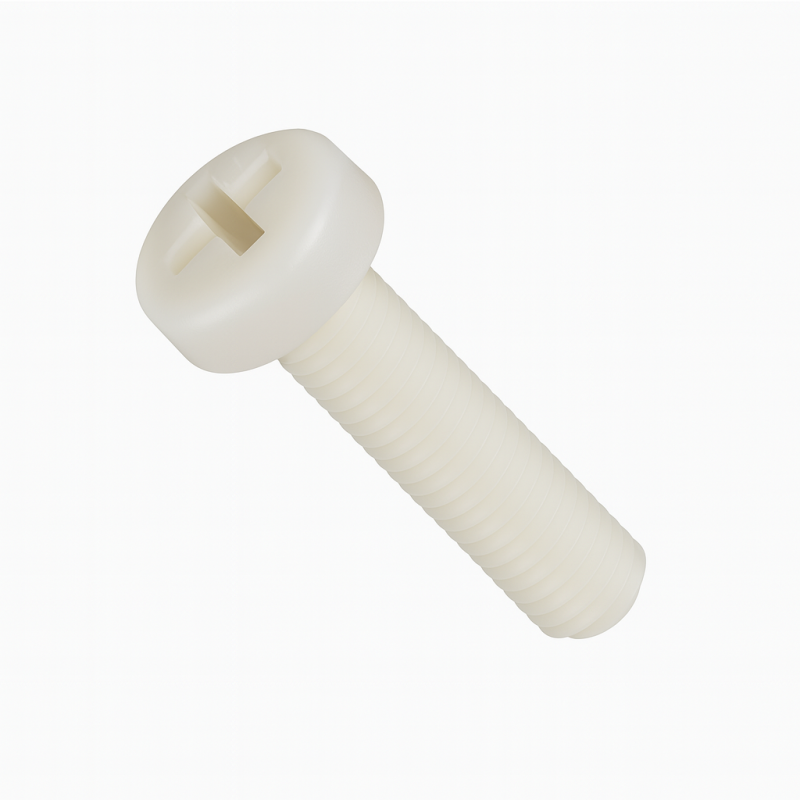

Phillips Pan Head Machine Screw - Nylon Metric DIN 7985

PHP - DIN 7985

For use with a cross-headed phillips screw driver, our plastic metric DIN 34812 (formerly DIN 7985) nylon phillips pan head screws in nylon 66 have a chamfered top, these nylon metric phillips pan head screws are also available to order in a slotted pan head DIN 85 (EN ISO 1580) style, please click to view.

Supplied in packs of 1000

  • Thread M2, M2.5, M3, M4, M5, M6, M8 and M10
  • Lengths: 4-60mm
  • Nylon 66
  • UL94-V2
  • RoHS Compliant
  • Operating Temperature -35 to +85°C
    Black available to order, please call

Related Products

Metric pan slot machine screws

Slotted Pan Head Machine Screw - Nylon Metric DIN 85

More
Metric Non-Standard Washers

Nylon Non-Standard Washers - Metric

More
Metric Nylon Hex Nuts

Metric Nylon Hex Nuts - DIN 934

More


84 products
Product Code Desc Thread Head Dia Head Height Length Price per pack Quantity
MS-M02-004-PHP004 M2 X 4 0.4 3.7 - 4.0 1.1 - 1.3 4 mm £44.84



MS-M02-004-PHP005 M2 X 5 0.4 3.7 - 4.0 1.1 - 1.3 5 mm £45.10



MS-M02-004-PHP006 M2 X 6 0.4 3.7 - 4.0 1.1 - 1.3 6 mm £45.16



MS-M02-004-PHP008 M2 X 8 0.4 3.7 - 4.0 1.1 - 1.3 8 mm £45.64



MS-M02-004-PHP010 M2 X 10 0.4 3.7 - 4.0 1.1 - 1.3 10 mm £45.67



MS-M02-004-PHP012 M2 X 12 0.4 3.7 - 4.0 1.1 - 1.3 12 mm £45.76



MS-M02-004-PHP016 M2 X 16 0.4 3.7 - 4.0 1.1 - 1.3 16 mm £48.28



MS-M02-004-PHP020 M2 X 20 0.4 3.7 - 4.0 1.1 - 1.3 20 mm £49.99



MS-M02-004-PHP025 M2 X 25 0.4 3.7 - 4.0 1.1 - 1.3 25 mm £50.59



MS-M025-0045-PHP004 M2.5 X 4 0.45 4.7 - 5.0 1.3 - 1.5 4 mm £44.70



MS-M025-0045-PHP006 M2.5 X 6 0.45 4.7 - 5.0 1.3 - 1.5 6 mm £45.03



MS-M025-0045-PHP008 M2.5 X 8 0.45 4.7 - 5.0 1.3 - 1.5 8 mm £45.32



MS-M025-0045-PHP010 M2.5 X 10 0.45 4.7 - 5.0 1.3 - 1.5 10 mm £46.49



MS-M025-0045-PHP012 M2.5 X 12 0.45 4.7 - 5.0 1.3 - 1.5 12 mm £48.90



MS-M025-0045-PHP016 M2.5 X 16 0.45 4.7 - 5.0 1.3 - 1.5 16 mm £50.43



MS-M025-0045-PHP020 M2.5 X 20 0.45 4.7 - 5.0 1.3 - 1.5 20 mm £50.98



MS-M025-0045-PHP025 M2.5 X 25 0.45 4.7 - 5.0 1.3 - 1.5 25 mm £51.31



MS-M03-005-PHP004 M3 X 4 0.5 5.3 - 5.6 1.6 - 1.8 4 mm £43.98



MS-M03-005-PHP005 M3 X 5 0.5 5.3 - 5.6 1.6 - 1.8 5 mm £44.00



MS-M03-005-PHP006 M3 X 6 0.5 5.3 - 5.6 1.6 - 1.8 6 mm £44.03



MS-M03-005-PHP008 M3 X 8 0.5 5.3 - 5.6 1.6 - 1.8 8 mm £44.09



MS-M03-005-PHP010 M3 X 10 0.5 5.3 - 5.6 1.6 - 1.8 10 mm £44.11



MS-M03-005-PHP012 M3 X 12 0.5 5.3 - 5.6 1.6 - 1.8 12 mm £44.47



MS-M03-005-PHP013 M3 X 13 0.5 5.3 - 5.6 1.6 - 1.8 13 mm £44.47



MS-M03-005-PHP016 M3 X 16 0.5 5.3 - 5.6 1.6 - 1.8 16 mm £44.98



MS-M03-005-PHP020 M3 X 20 0.5 5.3 - 5.6 1.6 - 1.8 20 mm £46.67



MS-M03-005-PHP025 M3 X 25 0.5 5.3 - 5.6 1.6 - 1.8 25 mm £47.00



MS-M03-005-PHP030 M3 X 30 0.5 5.3 - 5.6 1.6 - 1.8 30 mm £48.35



MS-M03-005-PHP035 M3 X 35 0.5 5.3 - 5.6 1.6 - 1.8 35 mm £56.83



MS-M03-005-PHP040 M3 X 40 0.5 5.3 - 5.6 1.6 - 1.8 40 mm £59.36



MS-M04-007-PHP004 M4 X 4 0.7 7.6 - 8.0 2.2 - 2.4 4 mm £46.49



MS-M04-007-PHP005 M4 X 5 0.7 7.6 - 8.0 2.2 - 2.4 5 mm £46.49



MS-M04-007-PHP006 M4 X 6 0.7 7.6 - 8.0 2.2 - 2.4 6 mm £46.49



MS-M04-007-PHP008 M4 X 8 0.7 7.6 - 8.0 2.2 - 2.4 8 mm £46.66



MS-M04-007-PHP010 M4 X 10 0.7 7.6 - 8.0 2.2 - 2.4 10 mm £46.75



MS-M04-007-PHP012 M4 X 12 0.7 7.6 - 8.0 2.2 - 2.4 12 mm £46.75



MS-M04-007-PHP015 M4 X 15 0.7 7.6 - 8.0 2.2 - 2.4 15 mm £47.13



MS-M04-007-PHP016 M4 X 16 0.7 7.6 - 8.0 2.2 - 2.4 16 mm £47.13



MS-M04-007-PHP020 M4 X 20 0.7 7.6 - 8.0 2.2 - 2.4 20 mm £53.67



MS-M04-007-PHP025 M4 X 25 0.7 7.6 - 8.0 2.2 - 2.4 25 mm £60.74



MS-M04-007-PHP030 M4 X 30 0.7 7.6 - 8.0 2.2 - 2.4 30 mm £62.22



MS-M04-007-PHP035 M4 X 35 0.7 7.6 - 8.0 2.2 - 2.4 35 mm £64.81



MS-M04-007-PHP040 M4 X 40 0.7 7.6 - 8.0 2.2 - 2.4 40 mm £66.33



MS-M05-008-PHP005 M5 X 5 0.8 9.1 - 9.5 2.7 - 3.0 5 mm £47.69



MS-M05-008-PHP006 M5 X 6 0.8 9.1 - 9.5 2.7 - 3.0 6 mm £47.82



MS-M05-008-PHP008 M5 X 8 0.8 9.1 - 9.5 2.7 - 3.0 8 mm £47.98



MS-M05-008-PHP010 M5 X 10 0.8 9.1 - 9.5 2.7 - 3.0 10 mm £55.73



MS-M05-008-PHP012 M5 X 12 0.8 9.1 - 9.5 2.7 - 3.0 12 mm £55.95



MS-M05-008-PHP016 M5 X 16 0.8 9.1 - 9.5 2.7 - 3.0 16 mm £56.49



MS-M05-008-PHP020 M5 X 20 0.8 9.1 - 9.5 2.7 - 3.0 20 mm £56.90



MS-M05-008-PHP025 M5 X 25 0.8 9.1 - 9.5 2.7 - 3.0 25 mm £72.17



MS-M05-008-PHP030 M5 X 30 0.8 9.1 - 9.5 2.7 - 3.0 30 mm £73.63



MS-M05-008-PHP040 M5 X 40 0.8 9.1 - 9.5 2.7 - 3.0 40 mm £77.11



MS-M06-010-PHP005 M6 X 5 1 11.5 - 12.0 3.3 - 3.6 5 mm £76.56



MS-M06-010-PHP006 M6 X 6 1 11.5 - 12.0 3.3 - 3.6 6 mm £77.02



MS-M06-010-PHP008 M6 X 8 1 11.5 - 12.0 3.3 - 3.6 8 mm £77.02



MS-M06-010-PHP010 M6 X 10 1 11.5 - 12.0 3.3 - 3.6 10 mm £77.04



MS-M06-010-PHP012 M6 X 12 1 11.5 - 12.0 3.3 - 3.6 12 mm £77.23



MS-M06-010-PHP016 M6 X 16 1 11.5 - 12.0 3.3 - 3.6 16 mm £77.42



MS-M06-010-PHP020 M6 X 20 1 11.5 - 12.0 3.3 - 3.6 20 mm £77.59



MS-M06-010-PHP022 M6 X 22 1 11.5 - 12.0 3.3 - 3.6 22 mm £84.35



MS-M06-010-PHP025 M6 X 25 1 11.5 - 12.0 3.3 - 3.6 25 mm £84.35



MS-M06-010-PHP030 M6 X 30 1 11.5 - 12.0 3.3 - 3.6 30 mm £90.98



MS-M06-010-PHP035 M6 X 35 1 11.5 - 12.0 3.3 - 3.6 35 mm £113.83



MS-M06-010-PHP040 M6 X 40 1 11.5 - 12.0 3.3 - 3.6 40 mm £114.01



MS-M06-010-PHP045 M6 X 45 1 11.5 - 12.0 3.3 - 3.6 45 mm £121.01



MS-M06-010-PHP050 M6 X 50 1 11.5 - 12.0 3.3 - 3.6 50 mm £139.13



MS-M06-010-PHP060 M6 X 60 1 11.5 - 12.0 3.3 - 3.6 60 mm £153.31



MS-M08-0125-PHP005 M8 X 5 1.25 15.5 - 16.0 4.5 - 4.8 5 mm £122.07



MS-M08-0125-PHP008 M8 X 8 1.25 15.5 - 16.0 4.5 - 4.8 8 mm £123.22



MS-M08-0125-PHP010 M8 X 10 1.25 15.5 - 16.0 4.5 - 4.8 10 mm £124.37



MS-M08-0125-PHP012 M8 X 12 1.25 15.5 - 16.0 4.5 - 4.8 12 mm £125.70



MS-M08-0125-PHP016 M8 X 16 1.25 15.5 - 16.0 4.5 - 4.8 16 mm £125.93



MS-M08-0125-PHP020 M8 X 20 1.25 15.5 - 16.0 4.5 - 4.8 20 mm £126.21



MS-M08-0125-PHP025 M8 X 25 1.25 15.5 - 16.0 4.5 - 4.8 25 mm £132.80



MS-M08-0125-PHP030 M8 X 30 1.25 15.5 - 16.0 4.5 - 4.8 30 mm £134.72



MS-M08-0125-PHP035 M8 X 35 1.25 15.5 - 16.0 4.5 - 4.8 35 mm £301.88



MS-M08-0125-PHP040 M8 X 40 1.25 15.5 - 16.0 4.5 - 4.8 40 mm £319.89



MS-M08-0125-PHP045 M8 X 45 1.25 15.5 - 16.0 4.5 - 4.8 45 mm £381.70



MS-M08-0125-PHP050 M8 X 50 1.25 15.5 - 16.0 4.5 - 4.8 50 mm £424.83



MS-M10-0150-PHP016 M10 X 16 1.5 19.4 - 20.0 5.7 - 6.0 16 mm £423.46



MS-M10-0150-PHP020 M10 X 20 1.5 19.4 - 20.0 5.7 - 6.0 20 mm £489.65



MS-M10-0150-PHP025 M10 X 25 1.5 19.4 - 20.0 5.7 - 6.0 25 mm £566.83



MS-M10-0150-PHP030 M10 X 30 1.5 19.4 - 20.0 5.7 - 6.0 30 mm £660.09
