Fir Tree Clips - Miscellaneous

Reference FTC-M

Our range of non-industry standard fir tree clips are a barbed one piece unit. Vibration and corrosion resistant. Easy to insert into a panel, simply push the fir tree clip into the hole, can be inserted by hand. These fir tree clips have excellent UV resistance.

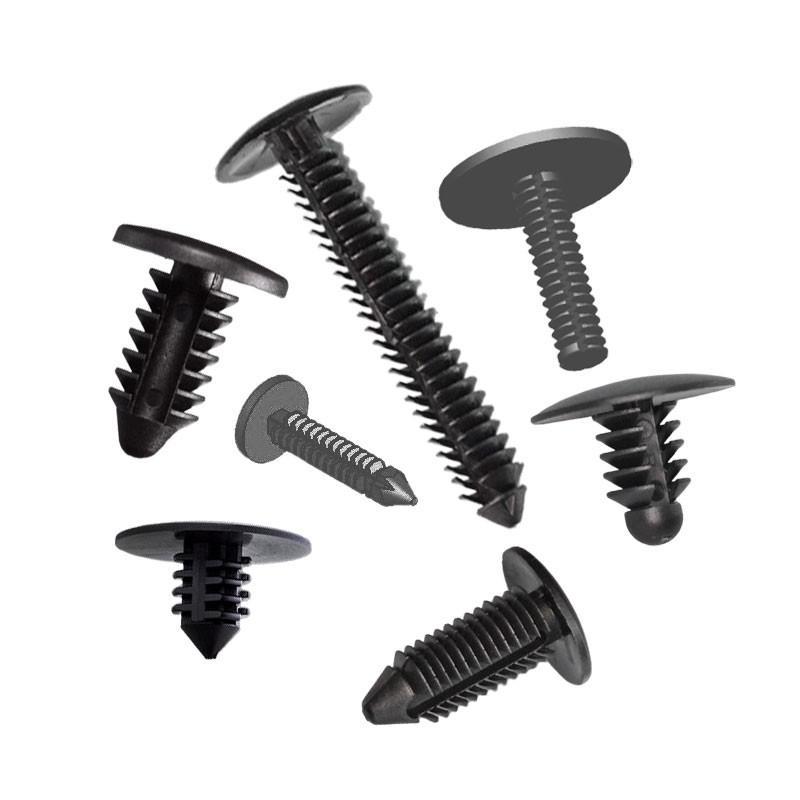

Please be advised the images shown are representative of a generic fir tree clip and do not show the exact style of fir tree clip.

PLEASE see PDF for a detailed diagram of each fir tree clip shown in the table below.

Nylon 66 UL94-V2
Temperature Range: -30°C to +85°C
Black available only.
Available in Flame Retardant (V0) to order
RoHS compliant

Supplied in packs of 1000

All measurements are in mm

Downloads

Fir Tree Clips - Misc

34 products

Product Code	Hole Dia	Head Dia	Head Height	Length	Panel Thick	Price per pack
FTC-M-1	2.70-3.30mm	6.00mm	1.30mm	11.00mm	1.50-8.00mm	£99.15
FTC-M-2	3.00-3.56mm	5.48mm	1.52mm	9.78mm	1.75-5.00mm	£98.04
FTC-M-3	3.56mm	8.76mm	1.52mm	8.51mm	2.54-6.35mm	£74.81
FTC-M-4	4.19-4.57mm	11.05mm	1.78mm	23.50mm	2.54-12.70mm	£107.91
FTC-M-5	4.19-4.57mm	5.46mm	1.52mm	16.89mm	2.54-12.70mm	£83.20
FTC-M-6	4.32mm	11.10mm	1.91mm	10.67mm	1.57-4.57mm	£102.27
FTC-M-7	4.57mm	7.49mm	0.38mm	7.19mm	1.52-4.75mm	£101.33
FTC-M-8	4.75mm	11.09mm	1.74mm	12.16mm	0.76-6.68mm	£88.19
FTC-M-9	4.80mm	8.00mm	2.00mm	19.00mm	2.10-15.90mm	£66.38
FTC-M-10	4.83-6.99mm	12.70mm	1.73mm	19.81mm	3.18-12.70mm	£111.77
FTC-M-11	5.00mm	10.92mm	1.04mm	12.75mm	1.70-8.00mm	£127.64
FTC-M-12	5.00mm	14.00mm	2.00mm	8.50mm	1.60-6.00mm	£65.86
FTC-M-13	5.08-5.54mm	20.62mm	1.78mm	17.78mm	1.65-12.20mm	£152.85
FTC-M-14	5.99mm	11.94mm	2.54mm	11.94mm	2.00-5.99mm	£103.63
FTC-M-15	6.00mm	16.80mm	2.00mm	21.30mm	1.60-18.00mm	£91.58
FTC-M-16	6.35mm	25.27mm	1.65mm	23.11mm	22.23mm	£253.83
FTC-M-17	6.35mm	25.40mm	1.65mm	25.78mm	25.40mm	£250.40
FTC-M-18	6.35mm	24.76mm	1.83mm	33.25mm	25.40mm	£153.14
FTC-M-19	6.35mm	24.76mm	1.83mm	38.10mm	30.15mm	£192.94
FTC-M-20	6.35mm	17.78mm	2.03mm	20.70mm	2.49-11.99mm	£123.64
FTC-M-21	6.35mm	12.70mm	2.00mm	15.90mm	N/A	£95.52
FTC-M-22	6.60-7.14mm	17.78mm	1.58mm	31.94mm	6.35-22.23mm	£294.69
FTC-M-23	6.73mm	12.95mm	1.27mm	16.31mm	6.35-12.70mm	£123.64
FTC-M-24	7.00mm	18.30mm	2.00mm	10.40mm	0.80-7.40mm	£91.29
FTC-M-25	7.01-7.36mm	19.05mm	1.52mm	27.18mm	3.50-18.03mm	£165.91
FTC-M-26	7.01-7.36mm	19.05mm	1.52mm	12.70mm	1.57-7.92mm	£96.68
FTC-M-27	7.01-7.92mm	19.05mm	1.52mm	27.18mm	3.50-18.03mm	£126.21
FTC-M-28	7.14mm	15.88mm	1.07mm	9.53mm	2.36-7.62mm	£115.77
FTC-M-29	7.49mm	17.78mm	2.03mm	39.88mm	12.70-34.93mm	£196.58
FTC-M-30	7.49mm	17.25mm	2.49mm	7.01mm	N/A	£122.72
FTC-M-31	7.54-7.92mm	12.60mm	1.01mm	23.37mm	6.35-15.88mm	£189.48
FTC-M-32	7.92mm	15.75mm	1.02mm	23.75mm	6.35-7.92mm	£182.23
FTC-M-33	7.92mm	15.75mm	1.02mm	31.93mm	13.46-23.88mm	£158.14
FTC-M-34	7.92mm	25.15mm	4.70mm	18.16mm	1.57-12.70mm	£269.66
