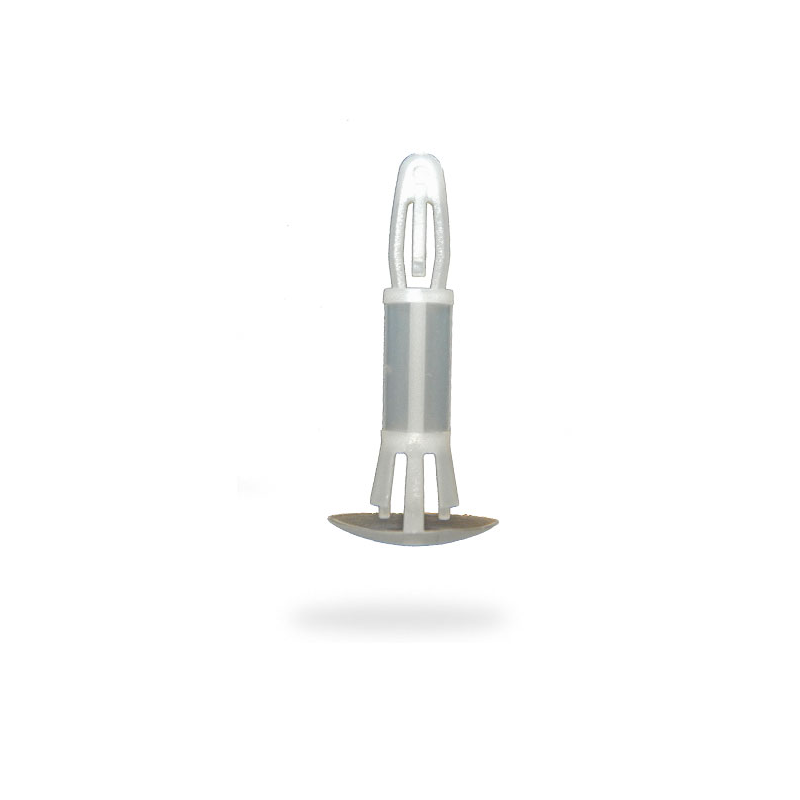

Reverse Circuit Board Locking Support 5

NLCBSC5

This reverse circuit board locking support 5 is ideally suited to a top hole size of 4.00mm, a bottom hole size of 5.40mm, a top panel thickness of 1.60mm and a bottom panel thickness of 1.20-2.00mm

Reverse Circuit Board Locking Support 5

  • Natural Nylon 66
  • UL94-V2
  • RoHS Compliant
  • Operating Temperature -35°C to +85°C
  • Flame Retardant (V0) available to order, please contact us
  • Top Hole size - 4.00mm
  • Top Panel Thickness - 1.60mm
  • Bottom Hole size - 5.40mm
  • Bottom Panel Thickness - 1.20-2.00mm

    Supplied in packs of 1000

4 products
Product Code Length Price per pack Quantity
NLCBSC5-4-66 6.40mm £38.95



NLCBSC5-6-66 9.50mm £39.56



NLCBSC5-8-66 12.70mm £42.95



NLCBSC5-10-66 15.90mm £45.23
