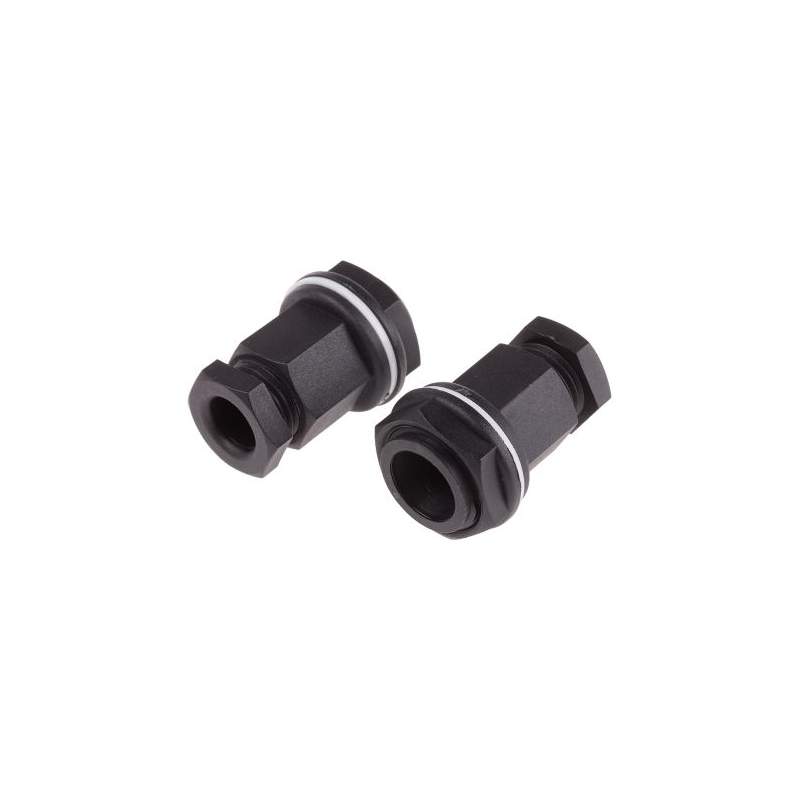

IP55 Metric Cable Gland M32

M32-255-IP55

To ensure protection and sealing for the passage of wiring into enclosures or through panels.

Our cable glands provide good ingress protection (IP) excluding dust and moisture from penetrating at the junction point as well as ensuring good levels of cable pull out resistance.

  • Includes M32 Locknut

  • Sold in packs of 200

Technical Information

  • Body Material: Nylon 6
  • Halogen Free LSOH
  • Moulded in accordance to EN50262
  • High heat and impact resistance
  • Locking cap system maintains integrity of seal
  • Seal:  Vulcanised Thermoplastic TPV
  • M32
  • Metric Thread  to comply EN60423
  • IP55
  • RoHS Compliant
  • Temperature range: -30C to +80°C
  • Operational  temperature: Up to +150°C intermittent
  • UL Approved
  • Colours: light grey, black, white & red
  • Easy to assemble, liquid tight, excellent strain relief, wide clamping range.

Related Products



4 products
Product Code Color Desc Clamping Range Enquire
M32-255-IP55 Black M32(32mm x 32mm) 18mm-24.5mm

M32-255-IP55 White M32(32mm x 32mm) 18mm-24.5mm

M32-255-IP55 Red M32(32mm x 32mm) 18mm-24.5mm

M32-255-IP55 Light Grey M32(32mm x 32mm) 18mm-24.5mm
